T 260 B - Shindaiwa String Trimmer Carburetor - EPA/CARB Parts Diagram

String Trimmer

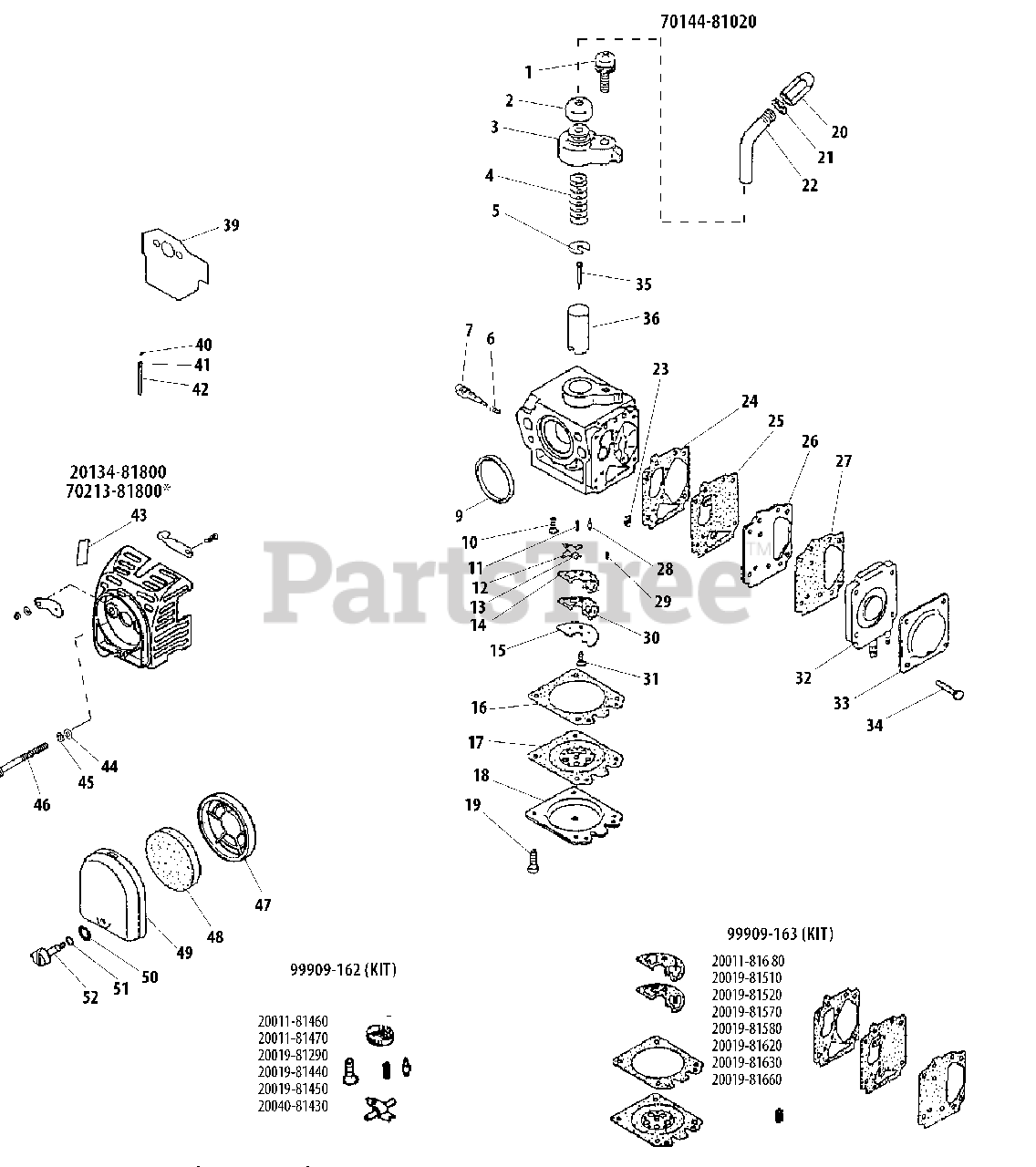

Carburetor - EPA/CARB Parts Diagram

  • Title

A

Echo 70144-81020

CARBURETOR
(Superseded to 70144-81021)

$74.99

$

In Stock, only 1 left!

0

1

Echo 20019-81120

SCREW - 5X15
(Superseded to P004001590)

$0.99

$

In Stock, only 3 left!

0

2

Echo 20055-81130

GROMMET
(Superseded to P004002180)

$3.99

$

In Stock, only 1 left!

0

3

Echo 20019-81111

CAP, CARBURETOR
(Superseded to P004001580)

$16.99

$

Usually ships in 2-4 days

0

4

Echo 20000-81140

SPRING, THROTTLE
(Superseded to 12411405530)

$1.99

$

Usually ships in 2-4 days

0

5

Echo 20000-81150

RETAINER
(Superseded to 12411505530)

$1.99

$

In Stock, Qty 12

0

6

Echo 20011-81360

SCREW, IDLE ADJUST
(Superseded to 12435521330)

$1.99

$

In Stock, Qty 10

0

7

Echo 20070-81350

SCREW, IDLE ADJUST
(Superseded to 12435412710)

$15.99

$

Usually ships in 2-4 days

0

9

Echo 20019-81280

SEAL
(Superseded to 12414913410)

$4.99

$

In Stock, only 1 left!

0

10

Echo 20011-81470

SCREW, METERING LEVER PIN
(Superseded to P004001350)

$0.99

$

Usually ships in 2-4 days

0

11

Echo 20040-81430

SPRING
(Superseded to 12433149930)

$1.99

$

In Stock, only 1 left!

0

12

Echo 20011-81460

PIN, METERING LEVER
(Superseded to 12433221330)

$1.99

$

In Stock, only 3 left!

0

13

Echo 20019-81450

LEVER, METERING
(Superseded to 12432121330)

$4.49

$

Usually ships in 2-4 days

0

14

Echo 20019-81580

GASKET
(Superseded to 12437512710)

$6.99

$

Usually ships in 2-4 days

0

15

Echo 20019-81560

PLATE
(Superseded to 68501-81370)

$5.49

$

Usually ships in 2-4 days

0

16

Echo 20019-81510

GASKET, METERING
(Superseded to P004001670)

$1.99

$

In Stock, Qty 5

0

17

Echo 20019-81520

DIAPHRAGM, METERING
(Superseded to P004001680)

$19.99

$

Usually ships in 2-4 days

0

18

Echo 20019-81530

COVER, DIAPHRAGM
(Superseded to P004001690)

$6.99

$

In Stock, only 1 left!

0

19

Echo 20000-81540

SCREW
(Superseded to P004001000)

$0.99

$

Usually ships in 2-4 days

0

20

Echo 20055-81810

NUT, CABLE ADJUST
(Superseded to 12415846630)

$13.99

$

Usually ships in 2-4 days

0

21

Echo 20000-81260

LOCKNUT
(Superseded to 12411105810)

$3.49

$

In Stock, only 2 left!

0

22

Echo 20055-81830

GUIDE, CABLE
(Superseded to 12416849930)

$12.99

$

In Stock, only 1 left!

0

23

Echo 20019-81290

STRAINER
(Superseded to P004001640)

$3.49

$

Usually ships in 2-4 days

0

24

Echo 20019-81630

GASKET, PUMP
(Superseded to 12436112710)

$2.99

$

In Stock, only 2 left!

0

25

Echo 20019-81620

DIAPHRAGM, PUMP
(Superseded to 12436412710)

$15.99

$

Usually ships in 2-4 days

0

26

Echo 20019-81610

PLATE, PUMP
(Superseded to 12436212710)

$18.99

$

In Stock, only 1 left!

0

27

Echo 20019-81660

GASKET, PUMP
(Superseded to 12436312710)

$6.99

$

Usually ships in 2-4 days

0

28

Echo 20019-81440

VALVE, INLET NEEDLE
(Superseded to P004001660)

$11.99

$

In Stock, only 1 left!

0

29

Echo 20011-81680

SPRING
(Superseded to 12436721330)

$1.49

$

In Stock, Qty 6

0

30

Echo 20019-81570

VALVE, CHECK
(Superseded to 12437453630)

$11.99

$

In Stock, only 1 left!

0

31

Echo 20011-81470

SCREW, METERING LEVER PIN
(Superseded to P004001350)

$0.99

$

Usually ships in 2-4 days

0

32

Echo 20019-81641

COVER, PUMP
(Superseded to P004001710)

$15.99

$

In Stock, only 1 left!

0

33

Echo 20019-81670

COVER, DIAPHRAGM
(Superseded to P004001720)

$7.99

$

Usually ships in 2-4 days

0

34

Echo 20019-81680

SCREW - 3X14
(Superseded to P004001730)

$0.99

$

Usually ships in 2-4 days

0

35

Echo 70144-81170

NEEDLE, JET
(Superseded to P004002910)

$12.99

$

Usually ships in 2-4 days

0

36

Echo 20019-81182

VALVE, THROTTLE
(Superseded to P004001620)

$59.99

$

In Stock, only 1 left!

0

39

Echo 20110-83431

GASKET
(Superseded to V103000880)

$2.99

$

In Stock, Qty 19

0

40

Echo 20020-85540

RING, RETAINING - 6
(Superseded to V490000500)

$0.99

$

In Stock, Qty 19

0

41

Echo 20019-83320

SPRING
(Superseded to V451000840)

$0.99

$

In Stock, Qty 7

0

42

Echo 20018-83311

PIPE
(Superseded to V471002590)

$2.49

$

In Stock, only 4 left!

0

A

Echo 20134-81800

AIR FILTER CASE ASSY
(Superseded to 20134-82100)

$18.99

$

In Stock, only 1 left!

0

A

Echo 70213-81800

AIR CLEANER CASE ASSY - BLUE
(Superseded to 70213-82100)

$18.99

$

Usually ships in 2-4 days

0

43

Echo 19404-00008

LABEL - CHOKE
(Superseded to X506000130)

$0.99

$

In Stock, Qty 20+

0

44

Echo 01610-05080

WASHER - 5
(Superseded to 90060000005)

$0.99

$

In Stock, Qty 20+

0

45

Echo 01600-05131

LOCKWASHER - 5
(Superseded to 90060500005)

$0.99

$

In Stock, Qty 10

0

46

Echo 01020-05600

SCREW - 5X60
(Superseded to 90010505060)

$2.49

$

In Stock, Qty 17

0

47

Echo 20110-81722

BRACKET, FILTER
(Superseded to 62028-82310)

$2.99

$

In Stock, Qty 20+

0

48

Echo 20000-81740

FILTER, AIR - FOAM
(Superseded to A226000670)

$3.49

$

In Stock, Qty 20+

0

49

Echo 20024-81770

COVER, AIR FILTER
(Superseded to A232000780)

$3.99

$

In Stock, only 2 left!

0

50

Echo 22100-82430

O-RING
(Superseded to V581000200)

$0.99

$

In Stock, Qty 6

0

51

Echo 20024-81790

WASHER - CONICAL
(Superseded to V347000030)

$0.99

$

In Stock, Qty 7

0

52

Echo 20115-81780

THUMBSCREW
(Superseded to V299000430)

$3.99

$

In Stock, only 1 left!

0

A

Echo 99909-162

REPAIR KIT
(Superseded to 72572-98030)

$19.99

$

In Stock, only 2 left!

0

A

Echo 99909-163

DIAPHRAGM/GASKET KIT
(Superseded to 72572-98020)

$40.99

$

In Stock, only 2 left!

0
