T 254 - Shindaiwa String Trimmer (SN: T74814001001 - T74814999999) RECOIL STARTER Parts Diagram

String Trimmer

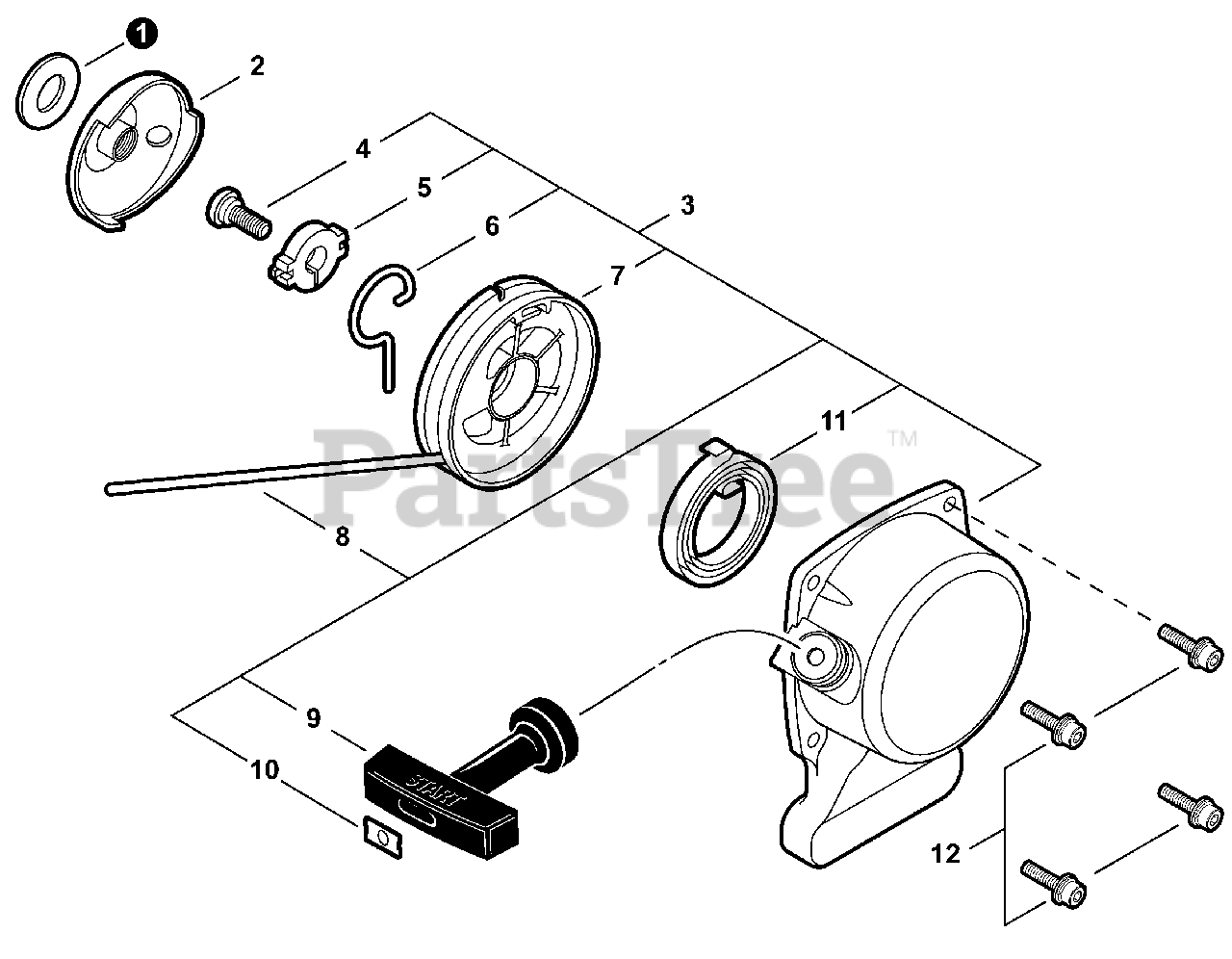

RECOIL STARTER Parts Diagram

  • Title
1

Echo V306000280

WASHER 8

$0.99

$

Usually ships in 2-4 days

0

2

Echo A520000140

PULLEY, STARTER

$3.99

$

Usually ships in 2-4 days

0

3

Echo A051002220

STARTER ASSY, RECOIL

Note: Includes Items 4-11

$18.99

$

In Stock, only 2 left!

0

4

Echo V253000310

SCREW 5

$1.99

$

In Stock, Qty 11

0

5

Echo V353000310

WASHER 5

$3.99

$

In Stock, Qty 9

0

6

Echo C810000120

ARM, SWING

$2.99

$

In Stock, Qty 14

0

7

Echo A506000180

REEL, ROPE

$6.49

$

In Stock, Qty 7

0

8

Echo A509000150

ROPE, STARTER

$3.49

$

Usually ships in 2-4 days

0

9

Echo A511000160

GRIP, STARTER
(Superseded to 17722827030)

$5.99

$

In Stock, Qty 20+

0

10

Echo A522000040

RETAINER, ROPE
(Superseded to 17724611120)

$2.49

$

In Stock, Qty 7

0

11

Echo A504000090

SPRING, RECOIL

$8.49

$

In Stock, Qty 11

0

12

Echo V202000280

BOLT M4×16

$0.99

$

Usually ships in 2-4 days

0
