T 254 - Shindaiwa String Trimmer (SN: T74814001001 - T74814999999) FUEL SYSTEM Parts Diagram

String Trimmer

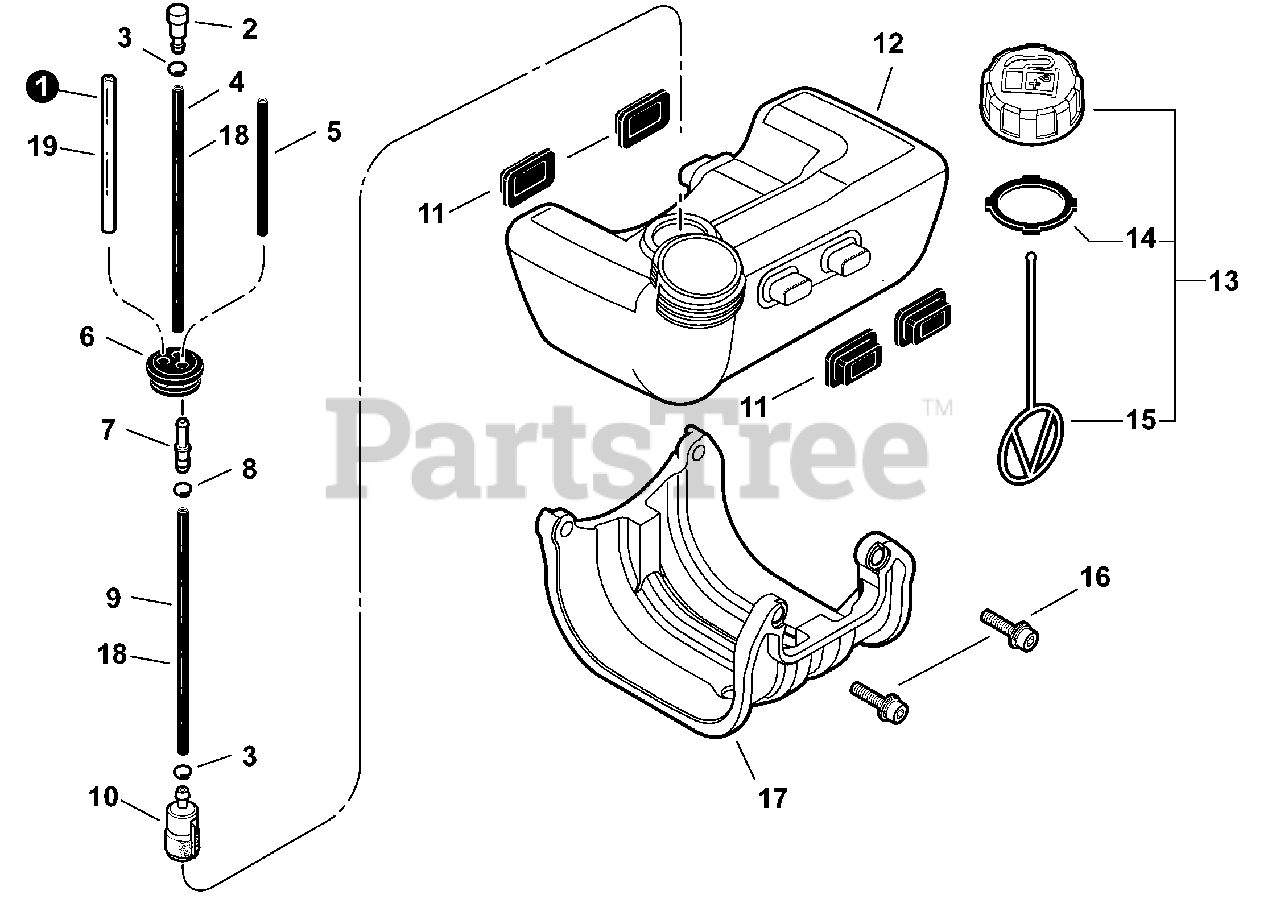

FUEL SYSTEM Parts Diagram

  • Title

1

Echo 13201256030

PIPE, FUEL 3×6×80 CLEAR

$3.49

$

In Stock, Qty 20+

0

2

Echo A356000050

VENT ASSY

$8.49

$

In Stock, only 2 left!

0

3

Echo V490000500

CLIP 6

$0.99

$

In Stock, Qty 20+

0

4

Echo V471000760

PIPE 3×6×90mm
(Superseded to V471000761)

$1.49

$

In Stock, Qty 11

0

5

Echo V471003710

PIPE, FUEL - 3×5×67 - BLACK
(Superseded to V471005600)

$2.99

$

In Stock, only 2 left!

0

6

Echo 13211555930

GROMMET, FUEL
(Superseded to 13211555931)

$2.49

$

In Stock, Qty 16

0

7

Echo V186000520

CONNECTOR, PIPE 5×3.5

$0.99

$

In Stock, Qty 20+

0

8

Echo V490001230

CLIP 6.5MM

$0.99

$

In Stock, Qty 20+

0

9

Echo V470001970

PIPE, FUEL 3×6×120 BLACK

$5.99

$

In Stock, only 1 left!

0

10

Echo A369000440

FILTER, FUEL

$6.99

$

In Stock, Qty 20+

0

11

Echo V420002220

CUSHION, FUEL TANK

$0.99

$

In Stock, Qty 7

0

12

Echo A350001980

TANK, FUEL

$46.99

$

In Stock, only 1 left!

0

13

Echo P021041930

CAP ASSY, FUEL

Note: Includes Items 14-15

$5.99

$

In Stock, only 4 left!

0

14

Echo V107000150

GASKET, FUEL CAP

$4.49

$

In Stock, Qty 20+

0

15

Echo A365000060

CONNECTOR, CAP L= 123

$1.49

$

In Stock, Qty 10

0

16

Echo V203000800

BOLT M5×20

$0.99

$

In Stock, only 1 left!

0

17

Echo A175000220

GUARD, PLASTIC FUEL TANK

$12.99

$

In Stock, only 1 left!

0

18

Echo 90015

PIPE, BULK - 3×6mm BLACK

$40.99

$

In Stock, only 3 left!

0

19

Echo 90017

PIPE, BULK - 3×6mm CLEAR

$58.99

$

In Stock, Qty 7

0
