T 254 - Shindaiwa String Trimmer (SN: T10413001001 - T10413999999) GEAR CASE Parts Diagram

String Trimmer

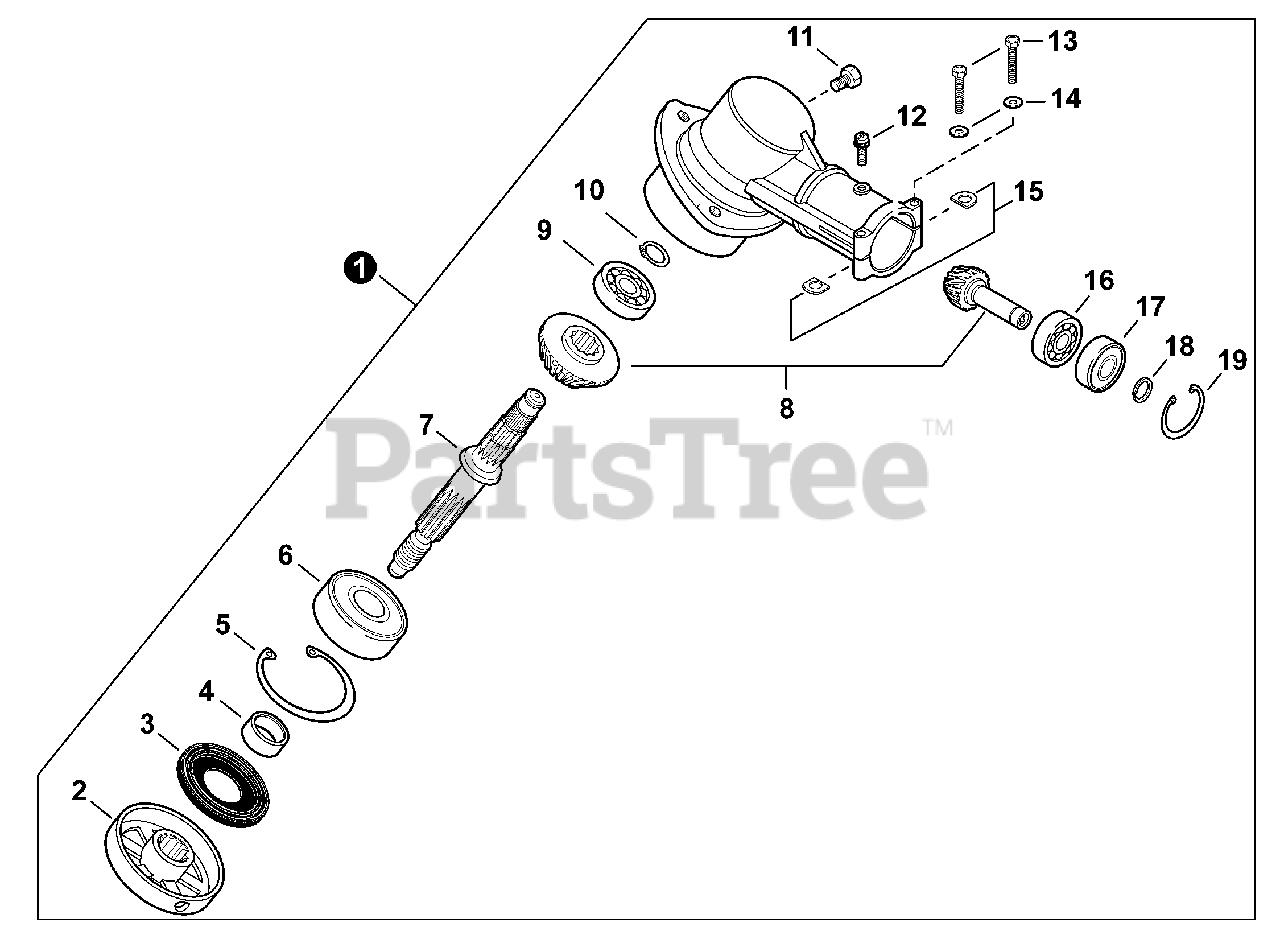

GEAR CASE Parts Diagram

  • Title

1

Echo P021034982

GEAR CASE ASSY

Note: Includes Items 2-19

$162.99

$

Usually ships in 2-4 days

0

2

Echo 61031347731

PLATE, ADAPTOR - UPPER

$12.99

$

In Stock, Qty 18

0

3

Echo 61041307130

SEAL, OIL 22

$5.99

$

In Stock, Qty 11

0

4

Echo 61031507130

SPACER 11.8×15×9

$3.99

$

In Stock, Qty 5

0

5

Echo 90070200032

RING, SNAP 32

$1.99

$

In Stock, Qty 14

0

6

Echo 90081006201

BEARING, BALL 6201

$6.99

$

Usually ships in 2-4 days

0

7

Echo 61036008931

SHAFT, GEAR
(Superseded to C534000270)

$67.99

$

In Stock, Qty 5

0

8

Echo 61030052630

GEAR SET

$102.99

$

Usually ships in 2-4 days

0

9

Echo 90080000609

BEARING, BALL 609

$9.99

$

In Stock, Qty 11

0

10

Echo 90070600012

RING, SNAP 12

$1.49

$

In Stock, Qty 10

0

11

Echo 61043450031

BOLT M8×8

$1.99

$

In Stock, Qty 6

0

12

Echo 90024205010

SCREW 5×10

$0.99

$

In Stock, Qty 20+

0

13

Echo 90010005035

BOLT 5×35 SP

$0.99

$

In Stock, Qty 20+

0

14

Echo 90060000005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

15

Echo 61023904130

D-WASHER

$0.99

$

In Stock, Qty 10

0

16

Echo 90085506900

BEARING, BALL 6900

$18.99

$

In Stock, Qty 5

0

17

Echo 90085806900

BEARING, BALL 6900-Z

$22.99

$

In Stock, Qty 6

0

18

Echo 90070600010

RING, SNAP 10

$1.49

$

In Stock, Qty 20+

0

19

Echo 90070200022

RING, SNAP 22

$1.99

$

In Stock, Qty 5

0
