T 2510 X - Shindaiwa String Trimmer Fuel Tank Parts Diagram

String Trimmer

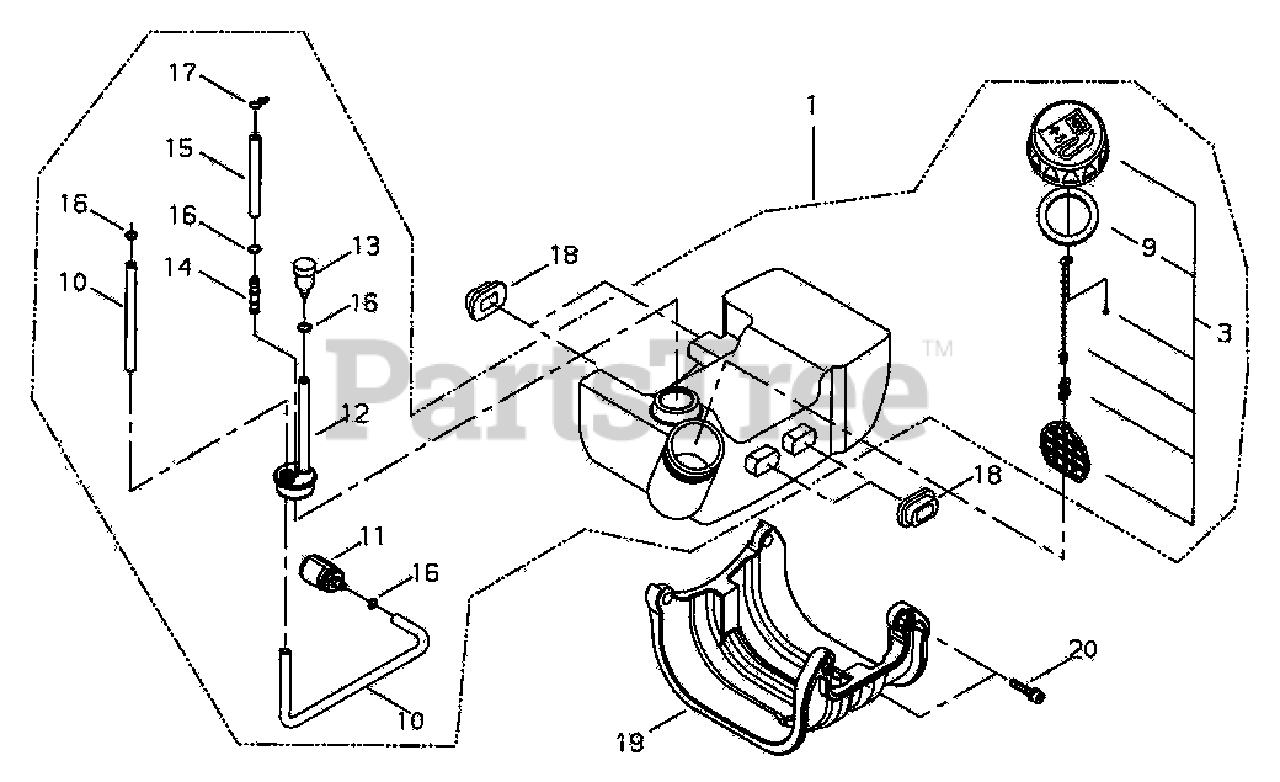

Fuel Tank Parts Diagram

  • Title

1

Echo 62903-85310

FUEL TANK ASSY
(Superseded to P021028460)

$

$

Not available

3

Echo 70168-85201

CAP ASSY
(Superseded to A033000010)

$7.49

$

In Stock, only 1 left!

0

9

Echo 20000-85221

GASKET, CAP
(Superseded to V107000010)

$1.99

$

In Stock, Qty 20+

0

10

Echo 62901-85310

PIPE - FUEL
(Superseded to V471002350)

$5.49

$

In Stock, only 2 left!

0

11

Echo 20016-85400

FILTER, FUEL
(Superseded to A369000070)

$8.99

$

In Stock, Qty 20+

0

12

Echo 20144-85350

GROMMET
(Superseded to V470001050)

$

$

Not available

13

Echo 22197-33960

ELEMENT, BREATHER
(Superseded to A356000050)

$8.49

$

In Stock, only 2 left!

0

14

Echo 72933-85620

CONNECTOR, PIPE
(Superseded to V186000210)

$1.99

$

In Stock, only 4 left!

0

15

Echo 20112-85360

PIPE
(Superseded to 20112-85361)

$1.99

$

In Stock, Qty 6

0

16

Echo 20020-85540

RING, RETAINING - 6
(Superseded to V490000500)

$0.99

$

In Stock, Qty 5

0

17

Echo 37013-85310

CLIP - SPRING
(Superseded to V490000510)

$0.99

$

In Stock, Qty 20+

0

18

Echo 62901-85220

CUSHION, FUEL TANK
(Superseded to V420002220)

$0.99

$

In Stock, Qty 10

0

19

Echo 62902-85320

GUARD, FUEL TANK
(Superseded to A175000220)

$12.99

$

In Stock, only 1 left!

0

20

Echo 11022-05200

SCREW - 5X20
(Superseded to V203000350)

$0.99

$

In Stock, Qty 20+

0
