T 2510 - Shindaiwa String Trimmer Cylinder, Muffler, Reed Valve Parts Diagram

String Trimmer

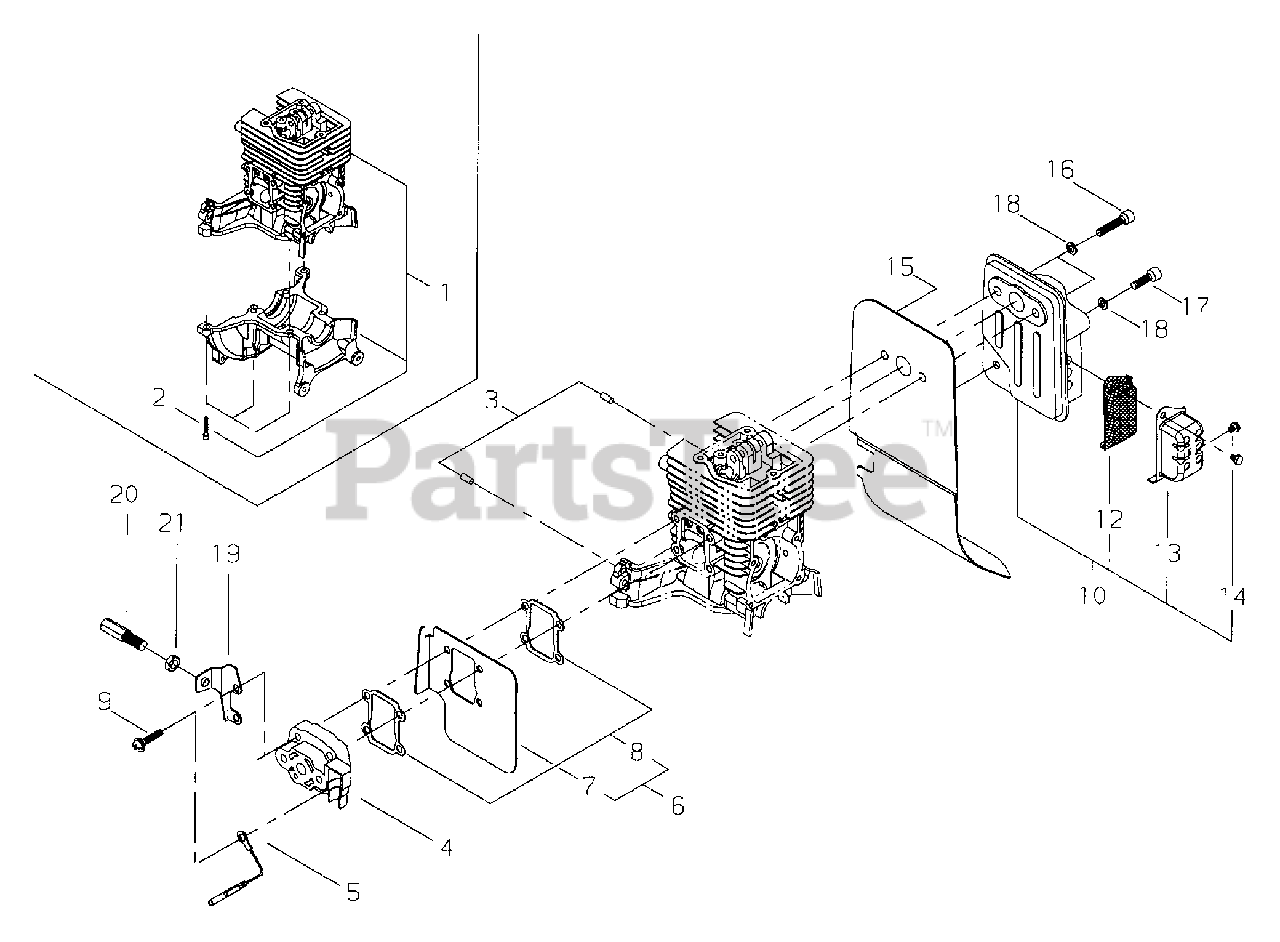

Cylinder, Muffler, Reed Valve Parts Diagram

  • Title

1

Echo 60908-98330

CYLINDER BLOCK SET
(Superseded to P021027580)

$124.99

$

In Stock, only 1 left!

0

2

Echo 01020-05160

SCREW - 5X16
(Superseded to 90010505016)

$1.49

$

In Stock, Qty 6

0

3

Echo 12492-40080

PIN - LOCATING
(Superseded to V622000040)

$0.99

$

In Stock, Qty 20+

0

4

Echo 62902-12310

INSULATOR
(Superseded to A024000050)

$43.99

$

Usually ships in 2-4 days

0

5

Echo 14350-01101

LEAD - GROUND
(Superseded to V485001260)

$3.49

$

Usually ships in 2-4 days

0

6

Echo 62902-12320

HEAT DEFLECTOR ASSY
(Superseded to A209000250)

$5.99

$

In Stock, only 1 left!

0

7

Echo 62901-12320

DEFLECTOR, HEAT
(Superseded to A209000260)

$5.49

$

Usually ships in 2-4 days

0

8

Echo 62901-12220

SHIELD, INTAKE
(Superseded to V103001130)

$1.49

$

In Stock, only 3 left!

0

9

Echo 11206-05225

SCREW - 5X22
(Superseded to 9158205022)

$0.99

$

Usually ships in 2-4 days

0

10

Echo 62907-15011

MUFFLER ASSY
(Superseded to A030000342)

$95.99

$

Usually ships in 2-4 days

0

12

Echo 62902-15131

SCREEN, SPARK ARRESTOR
(Superseded to A310000390)

$3.49

$

Usually ships in 2-4 days

0

13

Echo 62907-15161

GUIDE, EXHAUST
(Superseded to A313001391)

$7.49

$

Usually ships in 2-4 days

0

14

Echo 11204-04060

SCREW - 4X6
(Superseded to 9157204006)

$0.99

$

Usually ships in 2-4 days

0

15

Echo 62901-15210

SHIELD, EXHAUST
(Superseded to V104001431)

$8.99

$

Usually ships in 2-4 days

0

16

Echo 62901-15310

SCREW - 5X25
(Superseded to V203001000)

$1.99

$

Usually ships in 2-4 days

0

17

Echo 01020-05160

SCREW - 5X16
(Superseded to 90010505016)

$1.49

$

In Stock, Qty 6

0

18

Echo 01610-05080

WASHER - 5
(Superseded to 90060000005)

$0.99

$

In Stock, Qty 20+

0

19

Echo 62901-83310

BRACKET, THROTTLE CABLE

$2.99

$

Usually ships in 2-4 days

0

20

Echo 62902-83310

NUT, CABLE ADJUST
(Superseded to C486000030)

$16.99

$

In Stock, only 1 left!

0

21

Echo 01501-06048

LOCKNUT - 6
(Superseded to 9201806000)

$0.99

$

Usually ships in 2-4 days

0
