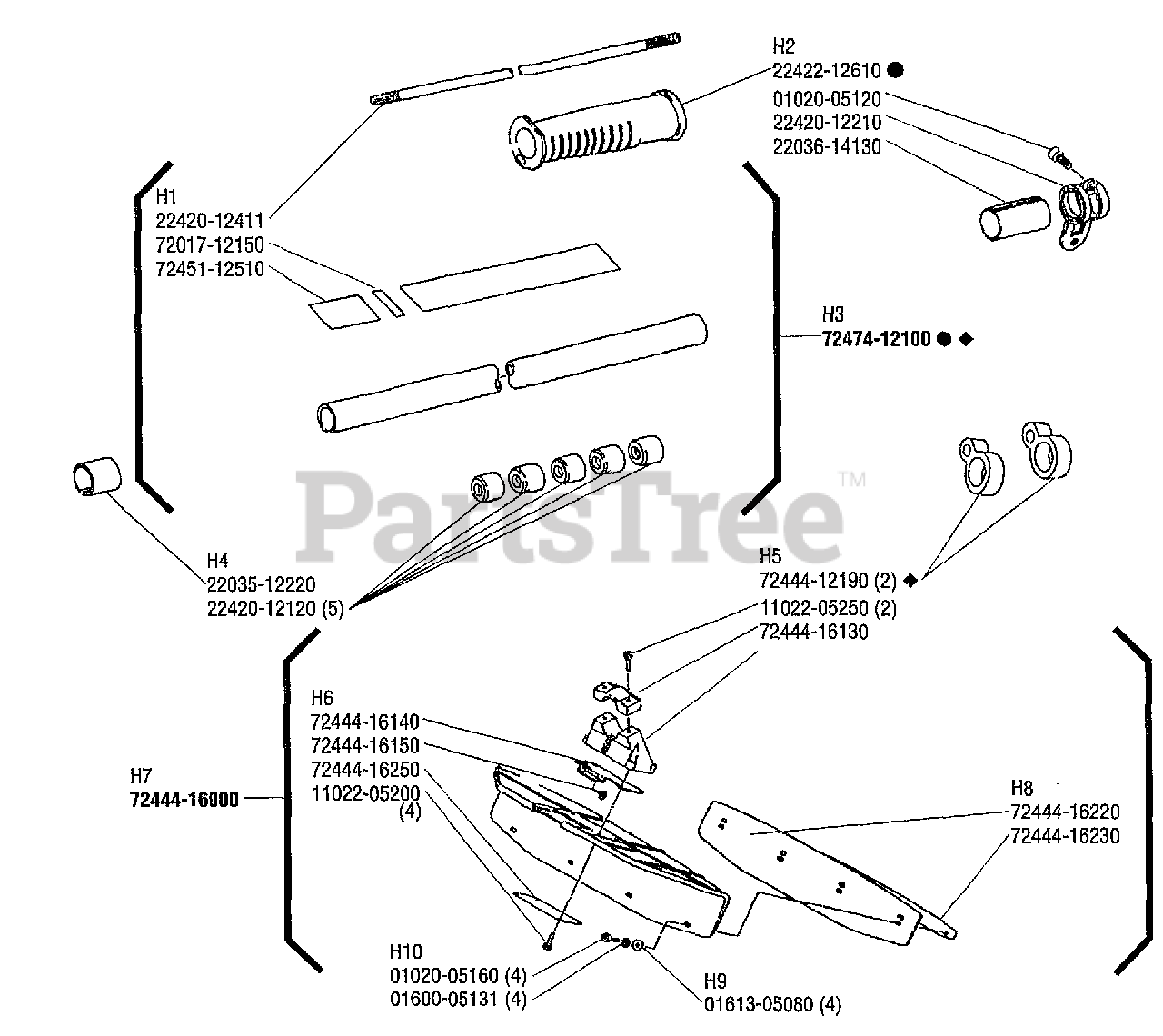

T 250 - Shindaiwa String Trimmer Shaft Parts Diagram

String Trimmer

Shaft Parts Diagram

  • Title
H2-22422-12610

Echo 22422-12610

GRIP
(Superseded to C412000390)

$12.99

$

In Stock, only 2 left!

0

H2-01020-05120

Echo 90010505012

SCREW - 5X12 HSH

$1.49

$

In Stock, Qty 20+

0

H2-22420-12210

Echo 22420-12210

HANGER, USE 63053-62150
(Superseded to 63053-62150)

$

$

Not available

H2-22036-14130

Echo 22036-14130

COLLAR
(Superseded to V363000130)

$3.99

$

Usually ships in 2-4 days

0

H3-72474-12100

Echo 72474-12100

PIPE ASSY, OUTER
(Superseded to 80028)

$

$

Not available

H5-72444-12190

Echo 72444-12190

BAND
(Superseded to C487000230)

$2.49

$

In Stock, Qty 9

0

H5-11022-05250

Echo 11022-05250

BOLT SPW
(Superseded to V203000630)

$0.99

$

In Stock, Qty 20+

0

H5-72444-16130

Echo 72444-16130

GUARD CLAMP
(Superseded to Discontinued)

$

$

Not available

H9-01613-05080

Echo 01613-05080

WASHER, REPLACES 20010-15320
(Superseded to 90060300005)

$0.99

$

In Stock, Qty 20+

0

H10-01020-05160

Echo 01020-05160

BOLT SW
(Superseded to 90010505016)

$1.49

$

In Stock, Qty 6

0

H10-01600-05131

Echo 01600-05131

WASHER, SPRING
(Superseded to 90060500005)

$0.99

$

In Stock, Qty 10

0

H4-22035-12220

$3.49

$

Usually ships in 2-4 days

0

H4-22420-12120

Echo 22420-12120

BUSHING
(Superseded to C501000110)

$4.99

$

In Stock, only 4 left!

0

H6-72444-16140

Echo 72444-16140

LINK, PLATE
(Superseded to Discontinued)

$

$

Not available

H6-72444-16150

$

$

Not available

H6-72444-16250

Echo 72444-16250

WASHER
(Superseded to Discontinued)

$

$

Not available

H6-11022-05200

Echo 11022-05200

BOLT
(Superseded to V203000350)

$0.99

$

In Stock, Qty 12

0

H7-72444-16000

Echo 72444-16000

GUARD ASSY ISO
(Superseded to Discontinued)

$

$

Not available

H1-22420-12411

Echo 22420-12411

SHAFT, MAIN
(Superseded to 37019-62211)

$41.99

$

Usually ships in 2-4 days

0

H1-72017-12150

Echo 72017-12150

LABEL, HANDLE
(Superseded to X524002380)

$0.99

$

Usually ships in 2-4 days

0

H1-72451-12510

Echo 72451-12510

LABEL, NAME PLATE
(Superseded to Discontinued)

$

$

Not available

H8-72444-16220

Echo 72444-16220

GUARD, ASSY

$8.99

$

Usually ships in 2-4 days

0

H8-72444-16230

Echo 72444-16230

PLATE, BACK

$11.99

$

In Stock, only 1 left!

0
