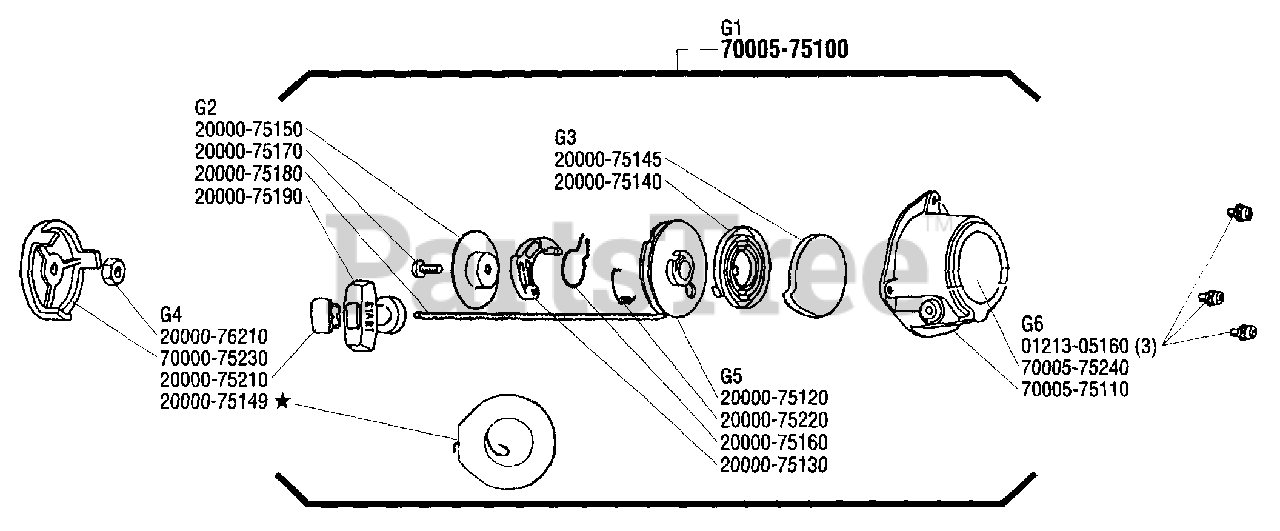

T 25 - Shindaiwa String Trimmer Starter Parts Diagram

String Trimmer

Starter Parts Diagram

  • Title

G1-70005-75100

Echo 70005-75100

STARTER ASSY
(Superseded to A051001790)

$45.99

$

In Stock, only 1 left!

0

G2-20000-75150

Echo 20000-75150

PLATE, FRICTION
(Superseded to A518000050)

$5.99

$

Usually ships in 2-4 days

0

G2-20000-75170

Echo 20000-75170

SCREW
(Superseded to V253000470)

$0.99

$

Usually ships in 2-4 days

0

G2-20000-75180

Echo 20000-75180

ROPE
(Superseded to 17722661830)

$7.49

$

Usually ships in 2-4 days

0

G2-20000-75190

Echo 20000-75190

KNOB, STARTER
(Superseded to A511000180)

$5.49

$

Usually ships in 2-4 days

0

G3-20000-75140

Echo 20000-75140

RECOIL SPRING
(Superseded to A504000120)

$13.99

$

Usually ships in 2-4 days

0

G3-20000-75145

Echo 20000-75145

SPRING CASE

$3.99

$

In Stock, only 1 left!

0

G4-20000-75149

Echo 20000-75149

RECOIL SPRING W/CASE
(Superseded to A504000250)

Note: PR 61

$10.99

$

Usually ships in 2-4 days

0

G4-20000-75210

Echo 20000-75210

CAP, KNOB
(Superseded to A513000000)

$1.99

$

Usually ships in 2-4 days

0

G4-70000-75230

Echo 70000-75230

PULLEY, STARTER
(Superseded to A520000170)

$4.99

$

Usually ships in 2-4 days

0

G4-20000-76210

Echo 20000-76210

NUT
(Superseded to V265000170)

$0.99

$

Usually ships in 2-4 days

0

G5-20000-75120

Echo 20000-75120

REEL
(Superseded to A506000250)

$10.99

$

Usually ships in 2-4 days

0

G5-20000-75130

Echo 20000-75130

RATCHET
(Superseded to A514000130)

$2.49

$

In Stock, Qty 8

0

G5-20000-75160

Echo 20000-75160

SPRING, FRICTION
(Superseded to V452000550)

$3.49

$

In Stock, only 1 left!

0

G5-20000-75220

Echo 20000-75220

SPRING, RETURN
(Superseded to V452000560)

$1.99

$

Usually ships in 2-4 days

0

G6-01213-05160

Echo 01213-05160

SCREW, SW
(Superseded to 9156405016)

$0.99

$

In Stock, only 4 left!

0

G6-70005-75110

Echo 70005-75110

STARTER CASE

$20.99

$

Usually ships in 2-4 days

0

G6-70005-75240

Echo 70005-75240

NAME PLATE
(Superseded to X504001930)

$1.99

$

Usually ships in 2-4 days

0
