T 25 - Shindaiwa String Trimmer Piston, Clutch Shoe Parts Diagram

String Trimmer

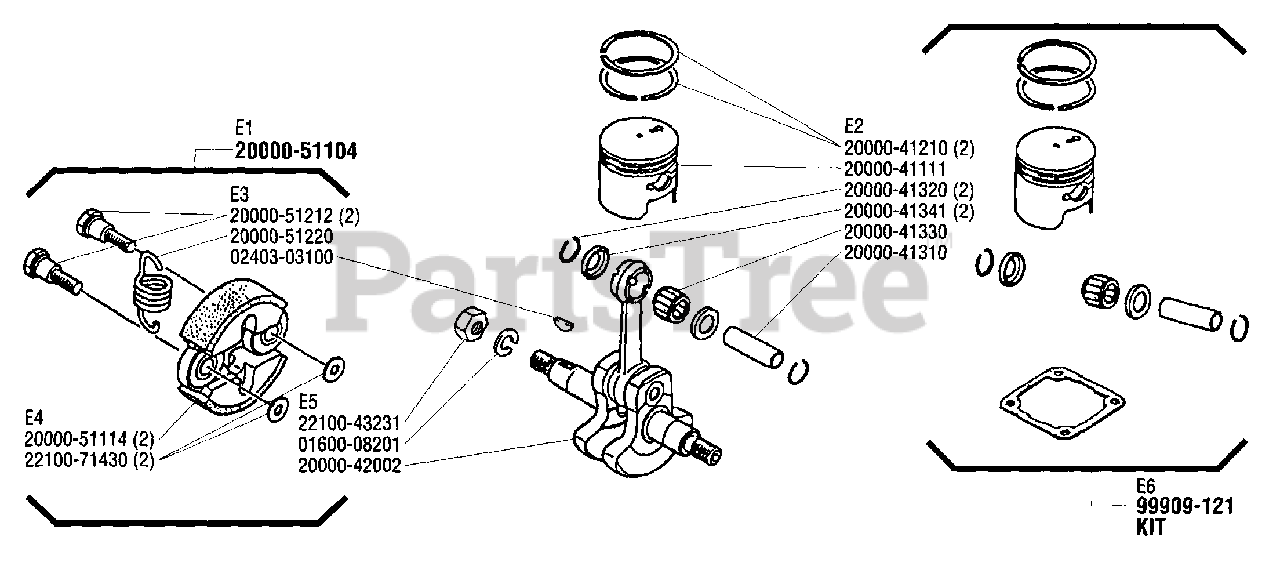

Piston, Clutch Shoe Parts Diagram

  • Title

E1-20000-51104

Echo 20000-51104

CLUTCH ASSY, USE 70140-51101
(Superseded to 70140-51101)

$32.99

$

In Stock, Qty 20+

0

E3-02403-03100

Echo 02403-03100

KEY
(Superseded to 9311503010)

$0.99

$

In Stock, Qty 20+

0

E3-20000-51212

Echo 20000-51212

BOLT, CLUTCH, USE 20087-51210
(Superseded to A557000070)

$1.49

$

Usually ships in 2-4 days

0

E3-20000-51220

Echo 20000-51220

SPRING
(Superseded to Discontinued)

$

$

Not available

E4-20000-51114

Echo 20000-51114

CLUTCH SHOE KIT
(Superseded to A555000110)

$15.99

$

Usually ships in 2-4 days

0

E4-22100-71430

Echo 22100-71430

WASHER
(Superseded to V304000150)

$0.99

$

Usually ships in 2-4 days

0

E5-01600-08201

Echo 01600-08201

WASHER, SPRING
(Superseded to 90060500008)

$0.99

$

In Stock, Qty 20+

0

E5-20000-42002

Echo 20000-42002

CRANKSHAFT ASSY
(Superseded to A011000780)

$92.99

$

Usually ships in 2-4 days

0

E5-22100-43231

Echo 22100-43231

NUT
(Superseded to V265000180)

$0.99

$

Usually ships in 2-4 days

0

E6-99909-121

Echo 99909-121

PISTON ASSY
(Superseded to 72005-98010)

$

$

Not available

E2-20000-41111

Echo 20000-41111

PISTON
(Superseded to A100000620)

$29.99

$

In Stock, only 1 left!

0

E2-20000-41210

Echo 20000-41210

PISTON RING
(Superseded to A101000400)

$6.49

$

In Stock, only 2 left!

0

E2-20000-41310

Echo 20000-41310

PISTON PIN
(Superseded to V607000030)

$4.49

$

Usually ships in 2-4 days

0

E2-20000-41320

Echo 20000-41320

SNAP RING
(Superseded to V580000090)

$5.49

$

In Stock, only 2 left!

0

E2-20000-41330

Echo 20000-41330

BEARING, NEEDLE
(Superseded to 37019-41230)

$6.49

$

In Stock, only 2 left!

0

E2-20000-41341

Echo 20000-41341

WASHER, THRUST
(Superseded to 37019-41240)

$2.49

$

In Stock, Qty 10

0
