T 25 - Shindaiwa String Trimmer Handle Parts Diagram

String Trimmer

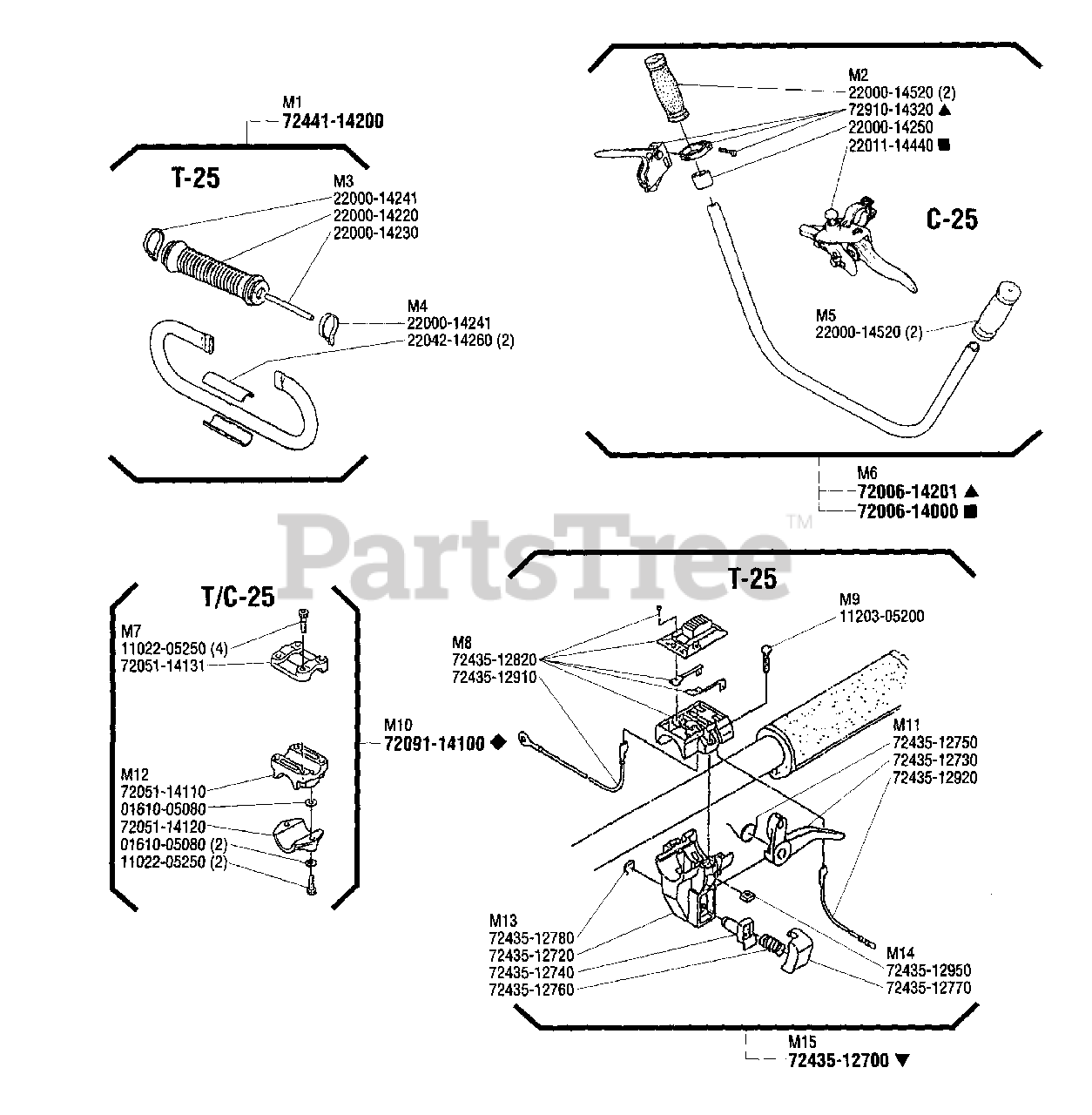

Handle Parts Diagram

  • Title

M1-72441-14200

Echo 72441-14200

HANDLE ASSY
(Superseded to P021032690)

$

$

Not available

M3-22000-14220

Echo 22000-14220

GRIP, HANDLE
(Superseded to C403000370)

$

$

Not available

M3-22000-14230

Echo 22000-14230

GRIP, CORE
(Superseded to V352000130)

$1.49

$

In Stock, only 1 left!

0

M3-22000-14241

Echo 22000-14241

GRIP, BAND
(Superseded to V495001420)

$1.99

$

Usually ships in 2-4 days

0

M4-22000-14241

Echo 22000-14241

GRIP, BAND
(Superseded to V495001420)

$1.99

$

Usually ships in 2-4 days

0

M4-22042-14260

Echo 22042-14260

SPACER, HANDLE

$1.99

$

Usually ships in 2-4 days

0

M6-72006-14000

Echo 72006-14000

Note: Double lever

$

$

Currently unavailable

M6-72006-14201

Echo 72006-14201

HANDLE ASSY
(Superseded to Discontinued)

Note: Single lever

$

$

Not available

M2-22000-14250

Echo 22000-14250

COLLAR, THROTTLE LEVER
(Superseded to 22000-14251)

$1.99

$

Usually ships in 2-4 days

0

M2-22000-14520

Echo 22000-14520

GRIP, HANDLE

$5.49

$

In Stock, only 2 left!

0

M2-22011-14440

Echo 22011-14440

THROTTLE LEVER
(Superseded to C044000620)

Note: Double lever

$19.99

$

In Stock, only 1 left!

0

M2-72910-14320

Echo 72910-14320

THROTTLE LEVER ASSY
(Superseded to Discontinued)

Note: Single lever

$

$

Not available

M5-22000-14520

Echo 22000-14520

GRIP, HANDLE

$5.49

$

In Stock, only 2 left!

0

M10-72091-14100

Echo 72091-14100

BRACKET ASSY
(Superseded to P021024920)

Note: PR 71

$26.99

$

Usually ships in 2-4 days

0

M7-11022-05250

Echo 11022-05250

BOLT SPW
(Superseded to V203000630)

$0.99

$

In Stock, Qty 20+

0

M7-72051-14131

Echo 72051-14131

UPPER CAP

$6.99

$

Usually ships in 2-4 days

0

M12-01610-05080

Echo 01610-05080

WASHER
(Superseded to 90060000005)

$0.99

$

In Stock, Qty 20+

0

M12-11022-05250

Echo 11022-05250

BOLT SPW
(Superseded to V203000630)

$0.99

$

In Stock, Qty 20+

0

M12-72051-14110

Echo 72051-14110

BRACKET, HANDLE
(Superseded to P021033260)

$28.99

$

Usually ships in 2-4 days

0

M12-72051-14120

Echo 72051-14120

CAP, LOWER
(Superseded to P021033260)

$28.99

$

Usually ships in 2-4 days

0

M15-72435-12700

Echo 72435-12700

THROTTLE LEVER ASSY
(Superseded to C044000790)

Note: PR 105

$42.99

$

In Stock, Qty 6

0

M8-72435-12820

Echo 72435-12820

SWITCH ASSY
(Superseded to A045000290)

$26.99

$

In Stock, only 1 left!

0

M8-72435-12910

Echo 72435-12910

WIRE, BLACK, THROTTLE LEVER
(Superseded to V485001600)

$4.99

$

Usually ships in 2-4 days

0

M9-11203-05200

Echo 11203-05200

SCREW
(Superseded to 9157805020)

$0.99

$

Usually ships in 2-4 days

0

M11-72435-12730

Echo 72435-12730

LEVER, THROTTLE LEVER
(Superseded to C450000470)

$10.99

$

Usually ships in 2-4 days

0

M11-72435-12750

Echo 72435-12750

SPRING, THROTTLE LEVER RETURN
(Superseded to V452000480)

$1.99

$

In Stock, Qty 16

0

M11-72435-12920

Echo 72435-12920

WIRE, RED, THROTTLE LEVER
(Superseded to V485001610)

$3.99

$

Usually ships in 2-4 days

0

M13-72435-12720

Echo 72435-12720

BODY, THROTTLE LEVER
(Superseded to 72435-12710)

$39.99

$

Usually ships in 2-4 days

0

M13-72435-12740

Echo 72435-12740

SHAFT, THROTTLE LEVER
(Superseded to C451000040)

$1.99

$

In Stock, only 2 left!

0

M13-72435-12760

Echo 72435-12760

SPRING, THROTTLE LEVER
(Superseded to V450000900)

$3.49

$

In Stock, only 1 left!

0

M13-72435-12780

Echo 72435-12780

SNAP RING, THROTTLE LEVER
(Superseded to V583000150)

$0.99

$

In Stock, Qty 8

0

M14-72435-12770

Echo 72435-12770

BUTTON, THROTTLE LEVER
(Superseded to C461000040)

$3.49

$

Usually ships in 2-4 days

0

M14-72435-12950

Echo 72435-12950

NUT, THROTTLE LEVER
(Superseded to V263000160)

$0.99

$

In Stock, Qty 20+

0
