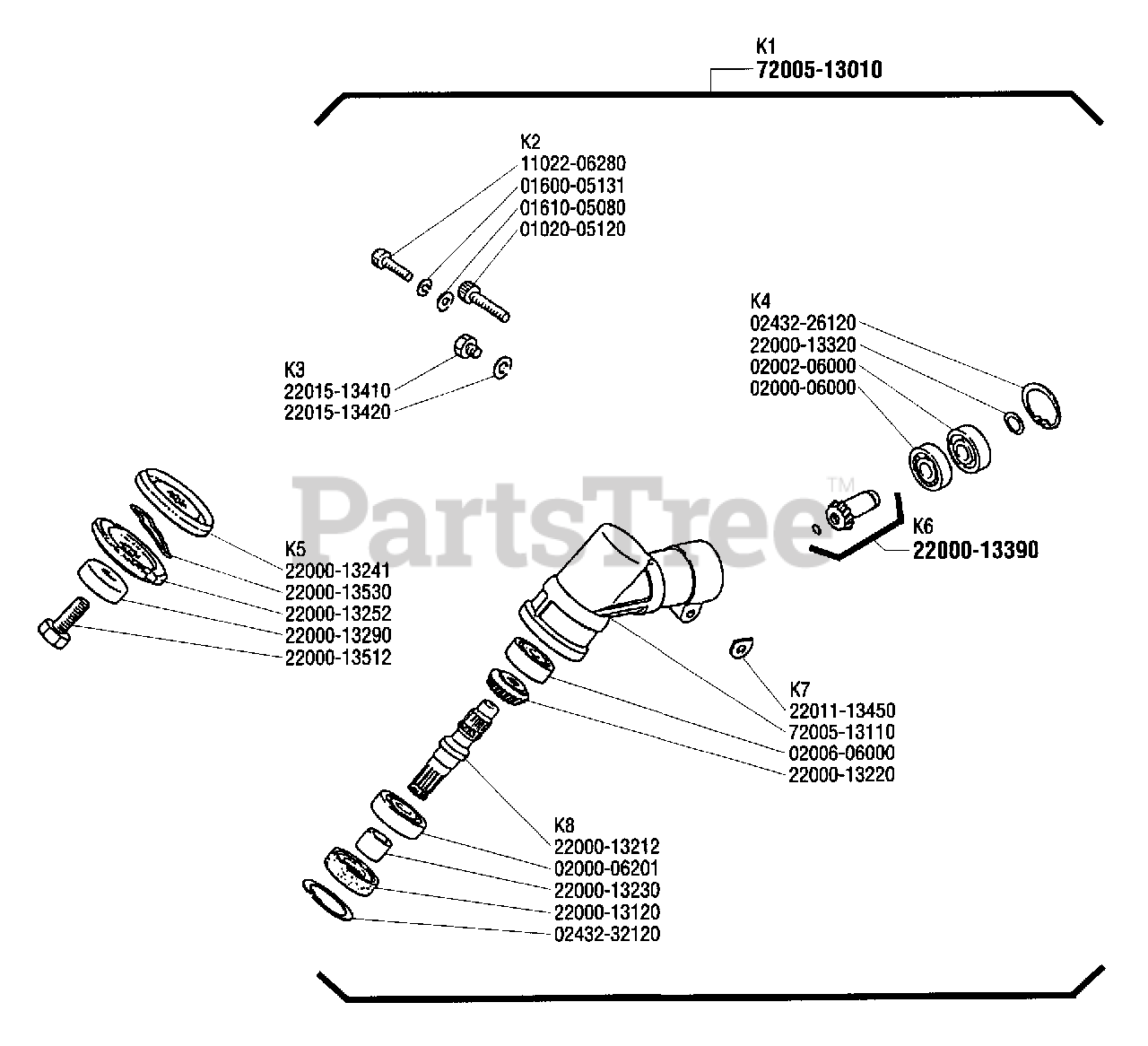

T 25 - Shindaiwa String Trimmer Gearcase Parts Diagram

String Trimmer

Gearcase Parts Diagram

  • Title
K1-72005-13010

Echo 72005-13010

GEARCASE ASSY
(Superseded to Discontinued)

$

$

Not available

K2-01020-05120

Echo 90010505012

SCREW - 5X12 HSH

$1.49

$

In Stock, Qty 20+

0

K2-01600-05131

Echo 01600-05131

WASHER, SPRING
(Superseded to 90060500005)

$0.99

$

In Stock, Qty 10

0

K2-01610-05080

Echo 01610-05080

WASHER
(Superseded to 90060000005)

$0.99

$

In Stock, Qty 20+

0

K2-11022-06280

Echo 11022-06280

BOLT
(Superseded to V204000410)

$

$

Not available

K3-22015-13410

Echo 22015-13410

BOLT
(Superseded to V206000250)

$1.49

$

In Stock, Qty 20+

0

K3-22015-13420

Echo 22015-13420

GASKET
(Superseded to V307000230)

$0.99

$

In Stock, only 4 left!

0

K4-02000-06000

Echo 02000-06000

BEARING, BALL
(Superseded to 90080006000)

$10.99

$

Usually ships in 2-4 days

0

K4-02002-06000

Echo 02002-06000

BEARING, BALL 6000ZZ
(Superseded to 90080406000)

$9.99

$

In Stock, Qty 14

0

K4-02432-26120

Echo 02432-26120

SNAP RING
(Superseded to 9242426000)

$0.99

$

In Stock, Qty 6

0

K4-22000-13320

Echo 22000-13320

SNAP RING
(Superseded to V583000160)

$1.49

$

In Stock, Qty 20+

0

K5-22000-13241

Echo 22000-13241

HOLDER A
(Superseded to C535001010)

$17.99

$

Usually ships in 2-4 days

0

K5-22000-13252

Echo 22000-13252

HOLDER B
(Superseded to 37019-63170)

$15.99

$

In Stock, only 3 left!

0

K5-22000-13290

Echo 22000-13290

BOLT, GUARD
(Superseded to C535000860)

$2.99

$

In Stock, Qty 8

0

K5-22000-13512

Echo 22000-13512

BOLT
(Superseded to V205000480)

$2.99

$

In Stock, Qty 19

0

K5-22000-13530

Echo 22000-13530

SLIDE PIN
(Superseded to V641000150)

$2.49

$

In Stock, only 4 left!

0

K6-22000-13390

Echo 22000-13390

PINION GEAR KIT
(Superseded to V651000600)

$24.99

$

Usually ships in 2-4 days

0

K7-02006-06000

Echo 02006-06000

BEARING
(Superseded to 90080206000)

$13.99

$

In Stock, Qty 20+

0

K7-22000-13220

Echo 22000-13220

BEVEL GEAR
(Superseded to V651000590)

$22.99

$

Usually ships in 2-4 days

0

K7-22011-13450

Echo 22011-13450

SHIM
(Superseded to V340000280)

$0.99

$

In Stock, Qty 6

0

K7-72005-13110

Echo 72005-13110

GEARCASE
(Superseded to 72005-13112)

$

$

Not available

K8-02000-06201

Echo 02000-06201

BEARING, BALL
(Superseded to 90081006201)

$6.99

$

Usually ships in 2-4 days

0

K8-02432-32120

Echo 02432-32120

SNAP RING
(Superseded to 9242432000)

$0.99

$

In Stock, Qty 5

0

K8-22000-13120

Echo 22000-13120

SEAL, OIL
(Superseded to V510000010)

$4.99

$

In Stock, only 1 left!

0

K8-22000-13212

Echo 22000-13212

GEAR SHAFT
(Superseded to C534000610)

$42.99

$

Usually ships in 2-4 days

0

K8-22000-13230

Echo 22000-13230

COLLAR, GEAR SHAFT
(Superseded to V356000500)

$3.99

$

In Stock, Qty 5

0
