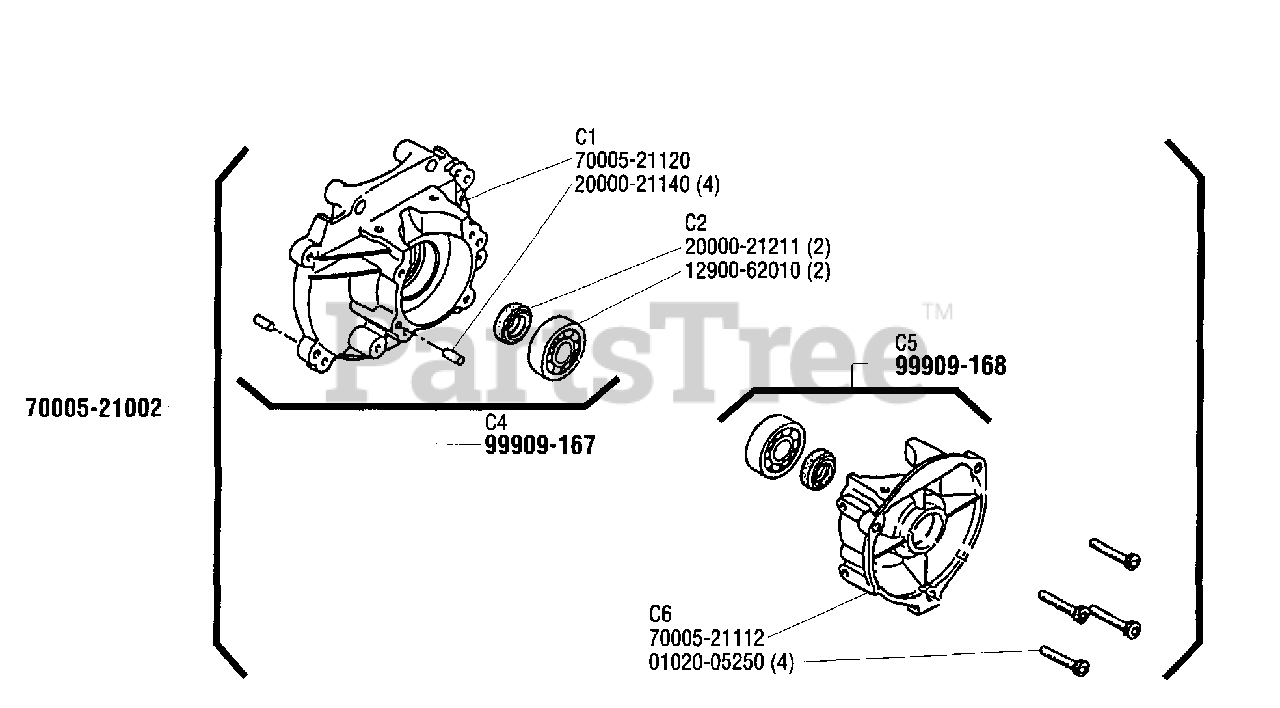

T 25 - Shindaiwa String Trimmer Crankcase Parts Diagram

String Trimmer

Crankcase Parts Diagram

  • Title
70005-21002

Echo 70005-21002

CRANKCASE ASSY
(Superseded to Discontinued)

$

$

Not available

C4-99909-167

Echo 99909-167

CRANKCASE M ASSY
(Superseded to Discontinued)

$

$

Not available

C1-20000-21140

Echo 20000-21140

PIN, DOWEL
(Superseded to V623000060)

$0.99

$

Usually ships in 2-4 days

0

C1-70005-21120

Echo 70005-21120

CRANKCASE M
(Superseded to Discontinued)

$

$

Not available

C2-12900-62010

Echo 12900-62010

BEARING, BALL
(Superseded to V592000110)

$7.99

$

In Stock, Qty 9

0

C2-20000-21211

Echo 20000-21211

SEAL, OIL
(Superseded to V505000080)

$2.99

$

In Stock, Qty 11

0

C5-99909-168

Echo 99909-168

CRANKCASE S ASSY

$56.99

$

Usually ships in 2-4 days

0

C6-01020-05250

Echo 01020-05250

BOLT
(Superseded to 90010505025)

$1.49

$

In Stock, Qty 19

0

C6-70005-21112

Echo 70005-21112

CRANKCASE S

$26.99

$

Usually ships in 2-4 days

0
