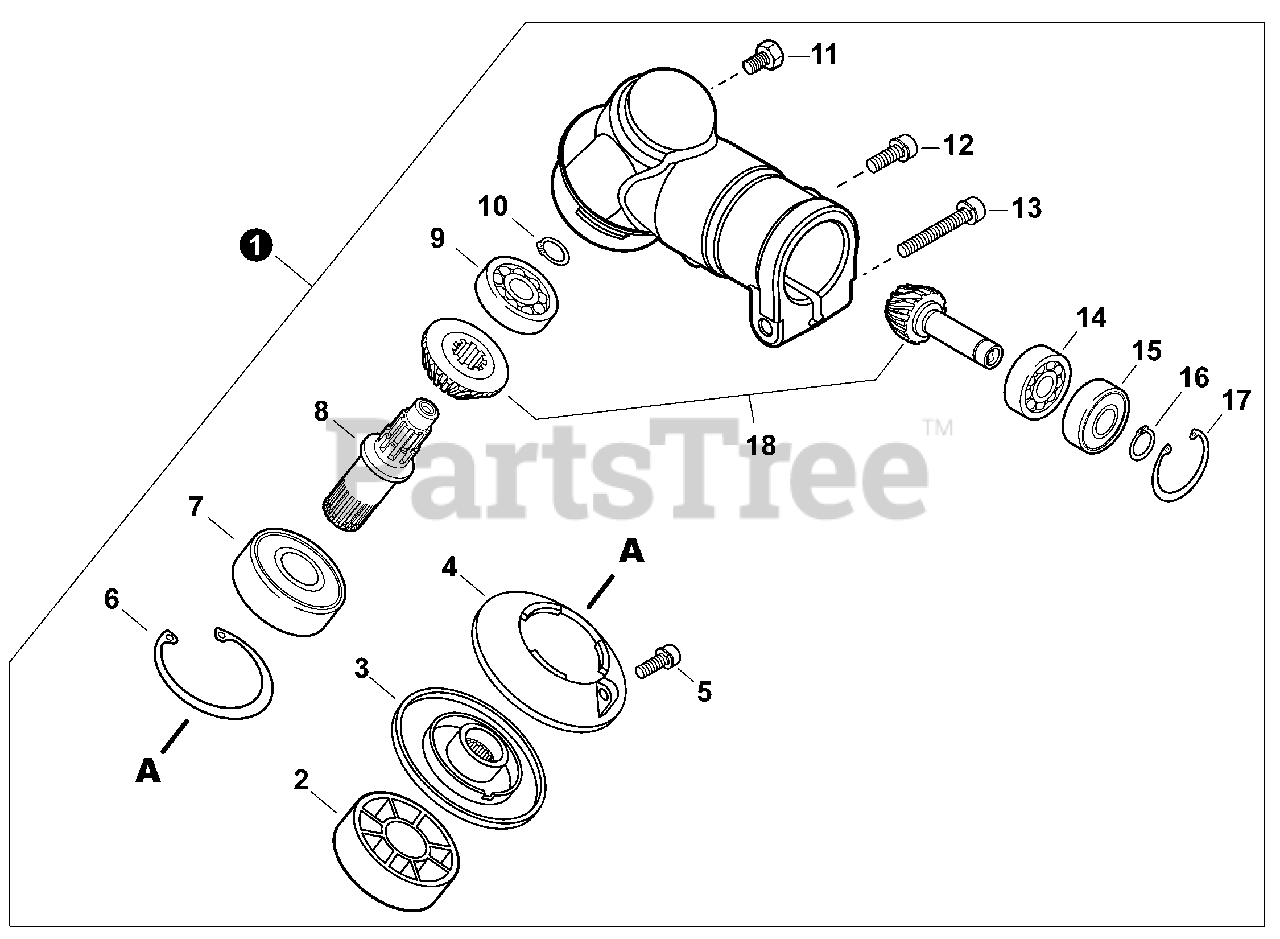

T 242 - Shindaiwa String Trimmer (SN: T16212001001 - T16212999999) Gear Case S/N T16212038844 - T16212999999 Parts Diagram

String Trimmer

Gear Case S/N T16212038844 - T16212999999 Parts Diagram

  • Title

1

Echo P021045530

GEAR CASE ASSY
(Superseded to P021045531)

Note: Includes Items 2-18

$170.99

$

Usually ships in 2-4 days

0

2

Echo V376001850

SPACER, BLACK

$4.99

$

In Stock, only 1 left!

0

3

Echo C535001180

PLATE, ADAPTOR - UPPER

$14.99

$

In Stock, only 1 left!

0

4

Echo C536000180

COVER, GEAR CASE

$7.49

$

Usually ships in 2-4 days

0

5

Echo 9111805012

BOLT 5×12

$1.49

$

In Stock, only 1 left!

0

6

Echo 90070200026

RING, SNAP 26

$1.99

$

In Stock, Qty 10

0

7

Echo 90080206000

BEARING, BALL 6000DDU

$13.99

$

In Stock, Qty 20+

0

8

Echo C534000930

SHAFT, GEAR

$44.99

$

Usually ships in 2-4 days

0

9

Echo 90081000626

BEARING, BALL 626

$11.99

$

Usually ships in 2-4 days

0

10

Echo 9240106000

RING, SNAP Ø6

$0.99

$

Usually ships in 2-4 days

0

11

Echo 61043450031

BOLT M8×8

$1.99

$

In Stock, Qty 6

0

12

Echo 90024205012

SCREW 5×12

$0.99

$

In Stock, Qty 20+

0

13

Echo 90016205035

BOLT 5×35

$1.49

$

In Stock, Qty 6

0

14

Echo 9406000609

BEARING, BALL 609
(Superseded to 90080000609)

$9.99

$

In Stock, Qty 11

0

15

Echo 90080300609

BEARING, BALL 609

$15.99

$

Usually ships in 2-4 days

0

16

Echo 90070100009

RING, SNAP Ø9

$

$

Not available

17

Echo 90070200024

RING, SNAP 24

$1.99

$

In Stock, only 4 left!

0

18

Echo P100000000

GEAR SET

$88.99

$

Usually ships in 2-4 days

0
