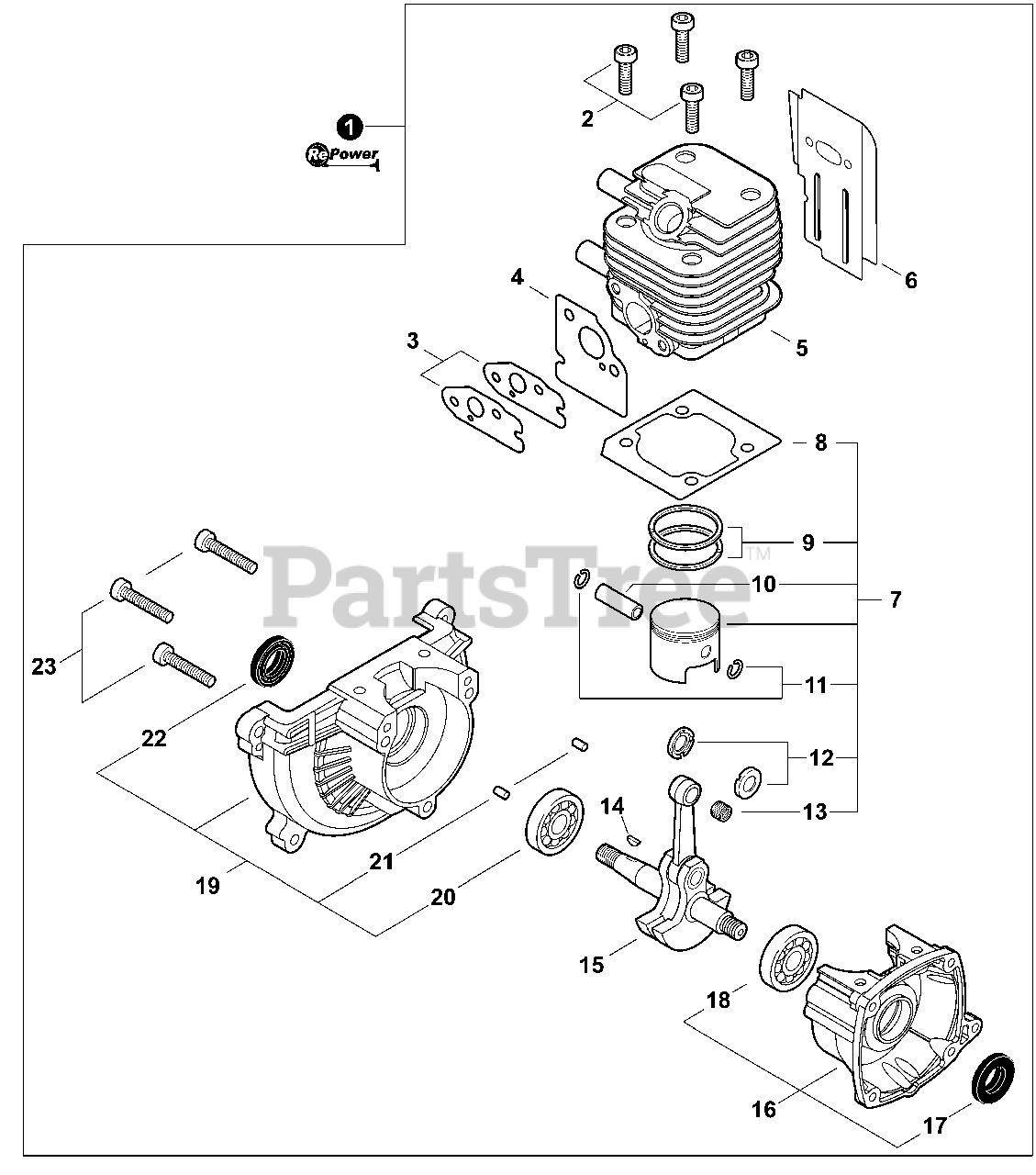

T 242 - Shindaiwa String Trimmer (SN: T16212001001 - T16212999999) Engine Parts Diagram

String Trimmer

Engine Parts Diagram

  • Title

1

Echo SB1106

SHORT BLOCK

Note: Includes Items 2-23

$192.99

$

Usually ships in 2-4 days

0

2

Echo 90010505016

BOLT 5×16

$1.49

$

In Stock, Qty 6

0

3

Echo V103001060

GASKET, INTAKE

$2.49

$

In Stock, only 2 left!

0

4

Echo V103000660

GASKET, INTAKE

$1.99

$

In Stock, Qty 20+

0

5

Echo A130001710

CYLINDER

$74.99

$

In Stock, only 1 left!

0

6

Echo V104001090

SHIELD, EXHAUST HEAT
(Superseded to V104002200)

$6.49

$

In Stock, only 1 left!

0

7

Echo P021035670

PISTON KIT
(Superseded to P021035671)

Note: Includes Items 8-13

$47.99

$

In Stock, only 1 left!

0

8

Echo V100000610

GASKET, CYLINDER

$1.99

$

In Stock, only 2 left!

0

9

Echo A101000290

RING, PISTON

$4.99

$

In Stock, Qty 11

0

10

Echo V606000000

PIN, PISTON 5×8×28

$6.49

$

Usually ships in 2-4 days

0

11

Echo 10001504630

RING, SNAP

$0.99

$

In Stock, Qty 9

0

12

Echo V306000250

WASHER, THRUST 8

$2.49

$

Usually ships in 2-4 days

0

13

Echo V553000080

BEARING, NEEDLE 8

$6.49

$

Usually ships in 2-4 days

0

14

Echo 9311503010

KEY, WOODRUFF 3×10

$0.99

$

In Stock, Qty 20+

0

15

Echo A011000700

CRANKSHAFT ASSY

$67.99

$

Usually ships in 2-4 days

0

16

Echo P021035650

CRANKCASE ASSY, S

Note: Includes Items 17-18

$35.99

$

In Stock, only 1 left!

0

17

Echo V505000070

SEAL, OIL 12

$5.99

$

In Stock, only 1 left!

0

18

Echo 90080036001

BEARING, BALL 6001

$9.49

$

In Stock, only 1 left!

0

19

Echo P021035660

CRANKCASE ASSY, M

Note: Includes Items 20-22

$31.99

$

Usually ships in 2-4 days

0

20

Echo 90080036001

BEARING, BALL 6001

$9.49

$

In Stock, only 1 left!

0

21

Echo 90033040080

PIN, LOCATING 4×8

$0.99

$

In Stock, Qty 20+

0

22

Echo V505000080

SEAL, OIL 12

$2.99

$

In Stock, Qty 13

0

23

Echo 90010505025

BOLT 5×25

$1.49

$

In Stock, Qty 20+
