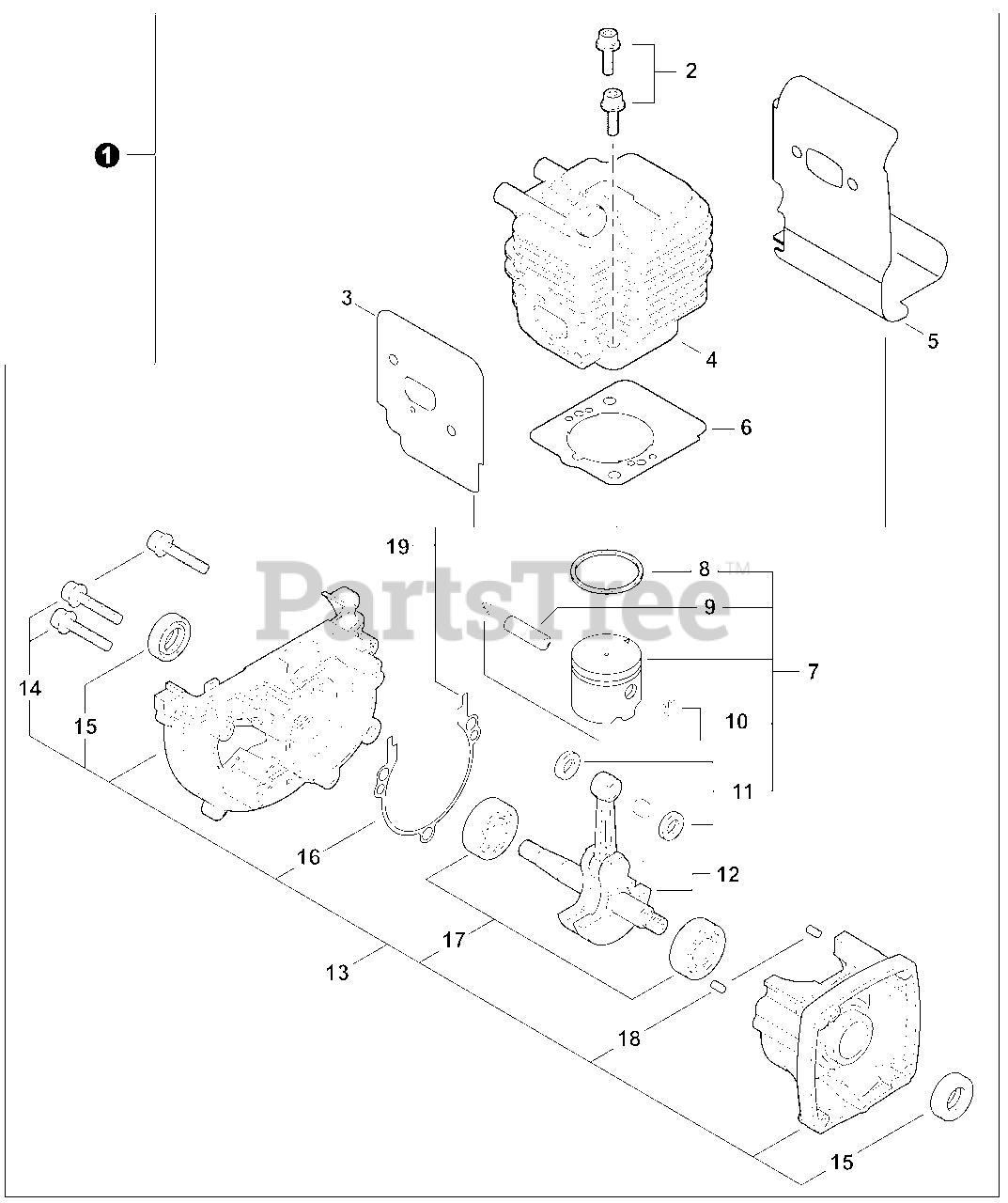

T 235 - Shindaiwa String Trimmer (SN: T76214001001 - T76214999999) Engine Parts Diagram

String Trimmer

Engine Parts Diagram

  • Title

1

Echo SB1107

SHORT BLOCK

$171.99

$

Usually ships in 2-4 days

0

2

Echo 90016205022

BOLT 5×22

Note: Includes ITEMS 2-18

$0.99

$

In Stock, Qty 20+

0

3

Echo V103001360

GASKET, INTAKE

$2.49

$

In Stock, only 2 left!

0

4

Echo A130000550

CYLINDER

$90.99

$

Usually ships in 2-4 days

0

5

Echo V104000850

GASKET, EXHAUST

$13.99

$

In Stock, only 1 left!

0

6

Echo V100000160

GASKET, CYLINDER

$6.49

$

In Stock, Qty 20+

0

7

Echo P021043620

PISTON KIT

Note: Includes ITEMS 8-11

$61.99

$

In Stock, only 1 left!

0

8

Echo A101000090

RING, PISTON

$8.49

$

In Stock, only 2 left!

0

9

Echo 10001311520

PIN, PISTON 5×8×25.5

$7.49

$

In Stock, only 1 left!

0

10

Echo 10001504630

RING, SNAP

$0.99

$

In Stock, Qty 9

0

11

Echo 10001411520

WASHER, THRUST 8.2×13×0.5

$3.49

$

In Stock, only 3 left!

0

12

Echo A011001410

CRANKSHAFT ASSY

$155.99

$

In Stock, only 1 left!

0

13

Echo 10020452133

CRANKCASE KIT

Note: Includes ITEMS 14-18

$140.99

$

Usually ships in 2-4 days

0

14

Echo 90016205028

BOLT 5×28

$1.99

$

In Stock, Qty 20+

0

15

Echo 10021242031

SEAL, OIL 12

$6.49

$

In Stock, Qty 11

0

16

Echo 10024242030

GASKET, CRANKCASE

$1.49

$

In Stock, Qty 20+

0

17

Echo 9403536201

BEARING, BALL 6201

$7.99

$

In Stock, Qty 9

0

18

Echo 90033040080

PIN, LOCATING 4×8

$0.99

$

In Stock, Qty 20+

0

19

Echo P021043920

GASKET KIT

$19.99

$

Usually ships in 2-4 days

0
