T 235 - Shindaiwa String Trimmer (SN: S95512001001 - S95512999999) Intake Parts Diagram

String Trimmer

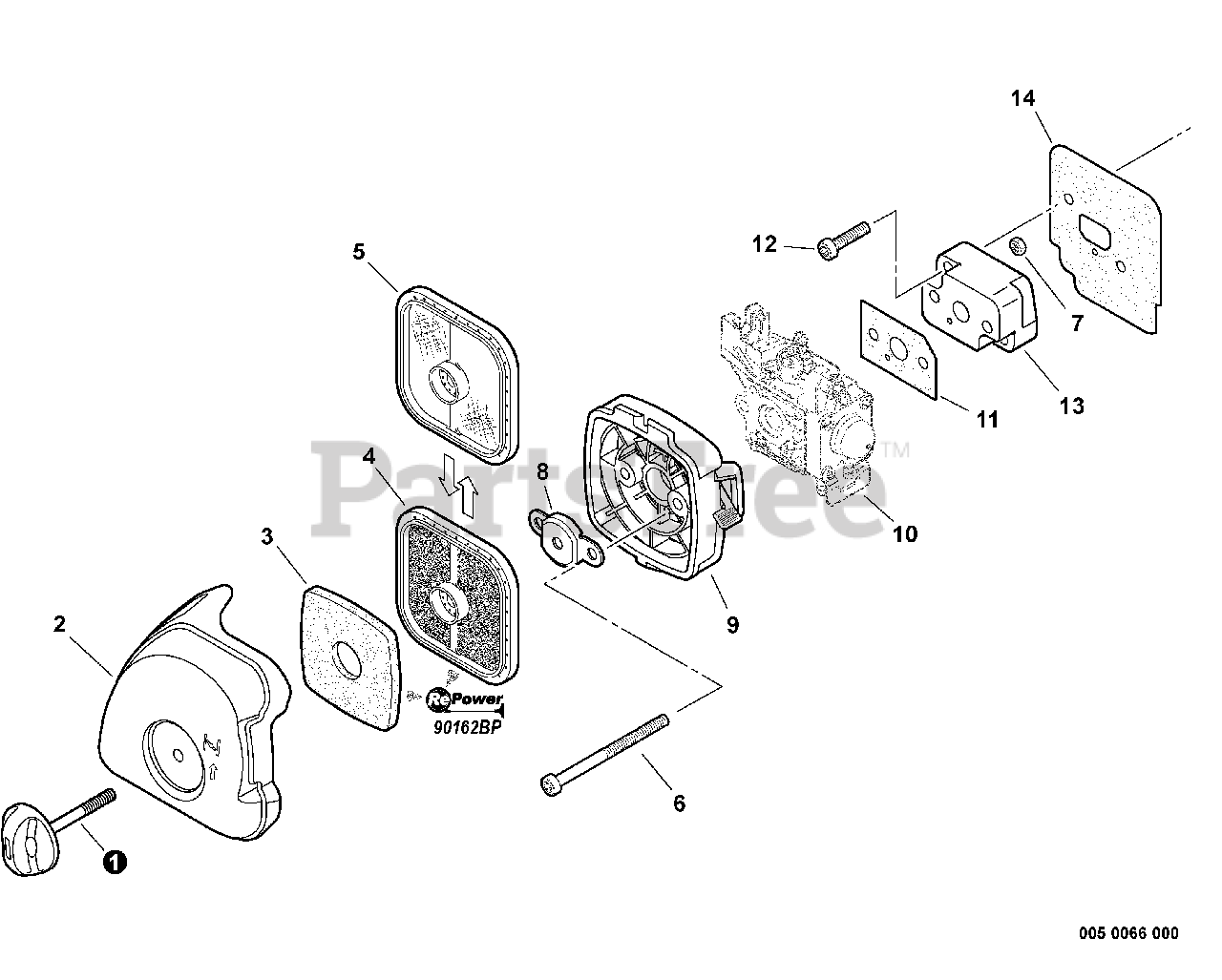

Intake Parts Diagram

  • Title

1

Echo V299000520

THUMBSCREW

$3.99

$

In Stock, only 2 left!

0

2

Echo A232001690

COVER, AIR FILTER

$9.99

$

In Stock, only 4 left!

0

3

Echo A226001790

PRE-FILTER -- FOAM

$3.49

$

In Stock, Qty 6

0

4

Echo A226001410

FILTER, AIR - DOUBLE LAYER

Note: Included In RePower TUNE-UP KIT

$7.49

$

In Stock, Qty 20+

0

5

Echo 13031054130

FILTER, AIR - SINGLE LAYER
(Superseded to A226001410)

Note: OPTIONAL

$7.49

$

In Stock, Qty 20+

0

6

Echo V805000100

SCREW - 5X65

$1.99

$

In Stock, only 2 left!

0

7

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

8

Echo 12901152730

PLATE, PREVENT

$3.99

$

In Stock, Qty 20+

0

9

Echo P021043650

CASE, AIR FILTER

$15.99

$

In Stock, only 1 left!

0

10

------------------

CARBURETOR

Note: See Carburetor Diagram For Details

$

$

Not available

11

Echo V103001390

GASKET, INTAKE
(Superseded to V103002190)

Note: Included In GASKET KIT

$1.99

$

In Stock, Qty 20+

0

12

Echo V805000160

SCREW - 5X20

$0.99

$

In Stock, Qty 20+

0

13

Echo 13001744331

INSULATOR, INTAKE

$9.99

$

In Stock, Qty 5

0

14

Echo V103001360

SHIELD, INTAKE

Note: Included In GASKET KIT

$2.49

$

In Stock, Qty 14

0

15

Echo 90162BP

RePower TUNE-UP KIT
(Superseded to Discontinued)

$

$

Not available
