T 231 - Shindaiwa String Trimmer Fuel Tank Parts Diagram

String Trimmer

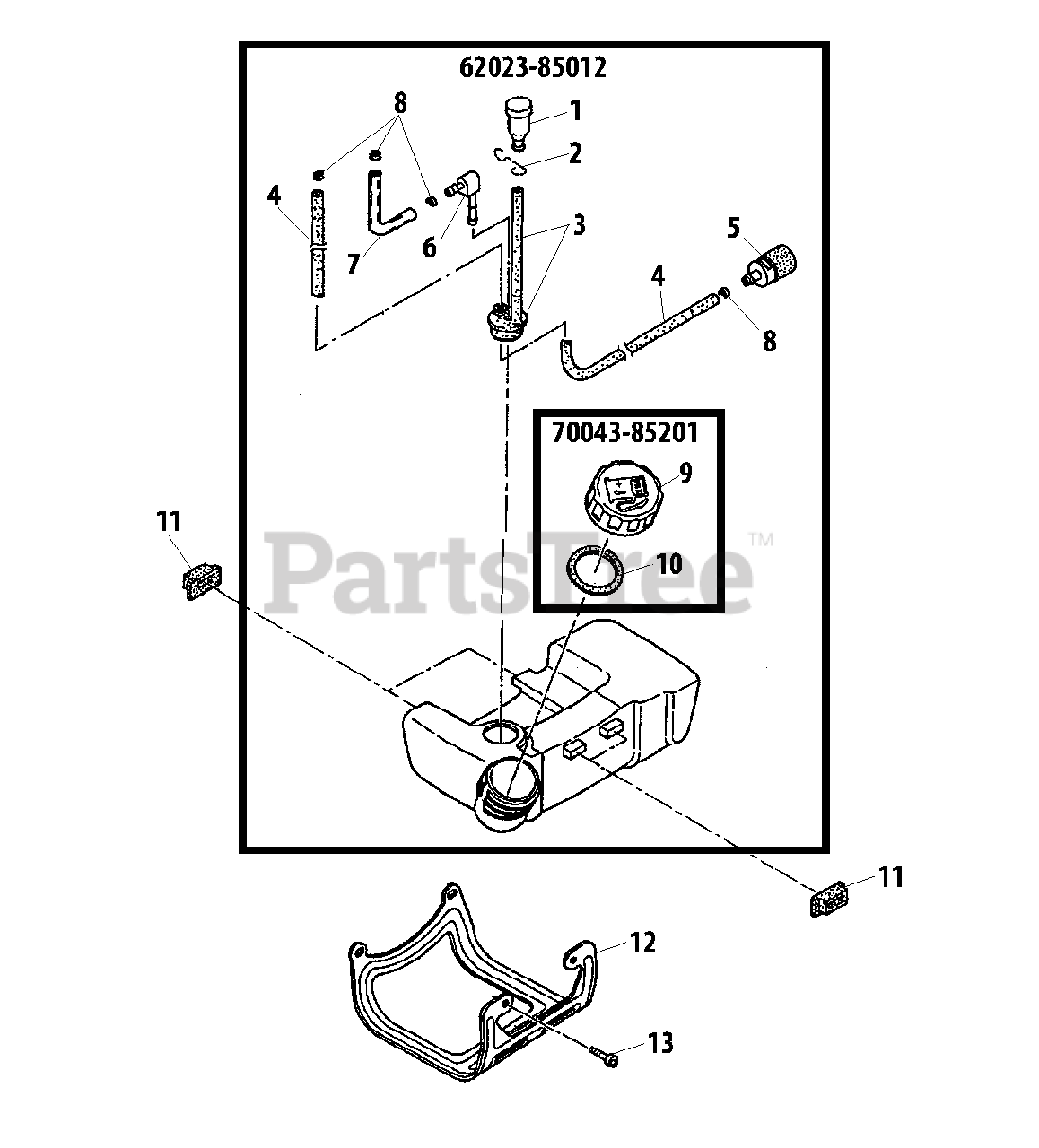

Fuel Tank Parts Diagram

  • Title

62023-85012

Echo 62023-85012

FUEL TANK ASSY
(Superseded to 62023-85014)

$

$

Not available

1

Echo 20035-85522

VENT, FUEL TANK
(Superseded to A356000040)

$6.99

$

In Stock, Qty 20+

0

2

Echo 20016-12310

HOLDER, VENT
(Superseded to A358000040)

$0.99

$

In Stock, Qty 6

0

3

Echo 62023-85320

VENT PIPE ASSY
(Superseded to V137000040)

$6.49

$

In Stock, only 1 left!

0

4

Echo 62023-85310

PIPE - FUEL
(Superseded to V471002610)

$1.99

$

In Stock, only 3 left!

0

5

Echo 20016-85400

FILTER, FUEL
(Superseded to A369000070)

$8.99

$

In Stock, Qty 20+

0

6

Echo 20087-85340

CONNECTOR, PIPE
(Superseded to V186000270)

$2.99

$

In Stock, Qty 17

0

7

Echo 72933-85611

PIPE - RETURN
(Superseded to V471002340)

$1.99

$

In Stock, Qty 11

0

8

Echo 20020-85540

RING, RETAINING - 6
(Superseded to V490000500)

$0.99

$

In Stock, Qty 19

0

70043-85201

Echo 70043-85201

CAP ASSY
(Superseded to A033000070)

$3.99

$

In Stock, Qty 13

0

9

Echo 70168-85210

CAP, FUEL
(Superseded to A355000180)

$7.49

$

In Stock, only 1 left!

0

10

Echo 20000-85221

GASKET, CAP
(Superseded to V107000010)

$1.99

$

In Stock, Qty 20+

0

11

Echo 20024-86120

CUSHION, TANK
(Superseded to V420002630)

$1.49

$

In Stock, Qty 12

0

12

Echo 70135-86130

GUARD, FUEL TANK
(Superseded to 62902-85320)

$12.99

$

In Stock, only 1 left!

0

13

Echo 11022-05120

SCREW - 5X12
(Superseded to V203000700)

$0.99

$

In Stock, Qty 20+

0
