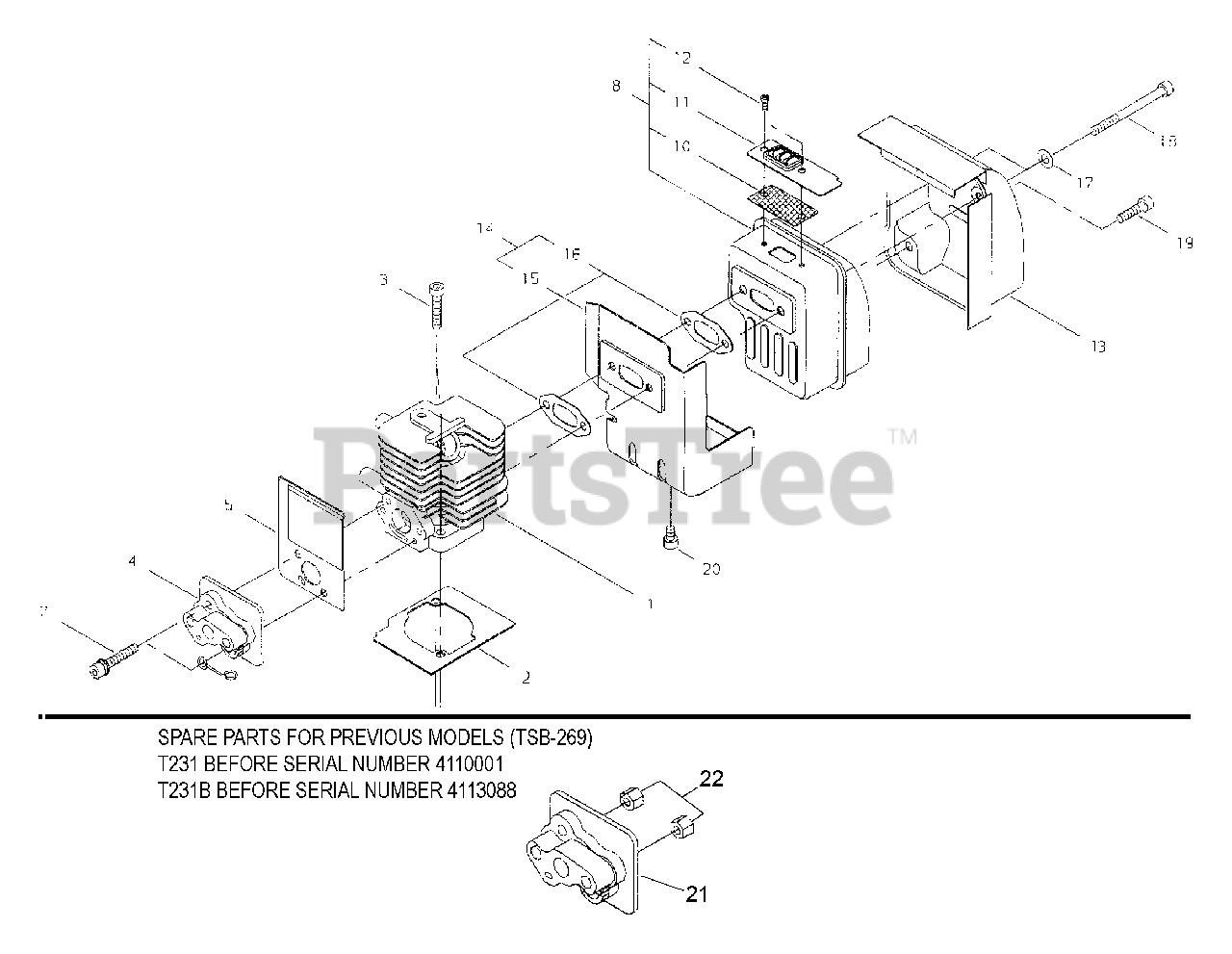

T 231 B - Shindaiwa String Trimmer Cyliner, Muffler Parts Diagram

String Trimmer

Cyliner, Muffler Parts Diagram

  • Title

1

Echo 62023-12111

CYLINDER
(Superseded to A130001160)

$54.99

$

In Stock, Qty 8

0

2

Echo 62023-12120

GASKET, CYLINDER
(Superseded to V100000360)

$1.99

$

In Stock, Qty 7

0

3

Echo 01020-05250

SCREW - 5X25
(Superseded to 90010505025)

$1.49

$

In Stock, Qty 20+

0

4

Echo 20016-12213

INSULATOR
(Superseded to A200000770)

$11.99

$

Usually ships in 2-4 days

0

5

Echo 62023-12220

SHIELD, INTAKE
(Superseded to V103000750)

$3.99

$

Usually ships in 2-4 days

0

7

Echo 11022-05305

SCREW - 5X30
(Superseded to V203000480)

$3.99

$

In Stock, Qty 5

0

8

Echo 62023-15011

MUFFLER ASSY
(Superseded to A030000141)

$162.99

$

Usually ships in 2-4 days

0

10

Echo 62023-15130

SCREEN, SPARK ARRESTOR
(Superseded to A310000250)

$2.49

$

Usually ships in 2-4 days

0

11

Echo 62023-15160

TAIL PLATE
(Superseded to A313001371)

$3.49

$

In Stock, only 2 left!

0

12

Echo 11203-04060

SCREW - 4X6
(Superseded to 9157804006)

$0.99

$

In Stock, Qty 16

0

13

Echo 62023-15381

COVER, EXHAUST
(Superseded to A320000600)

$

$

Not available

14

Echo 62023-15211

SHIELD, EXHAUST
(Superseded to V104001130)

$10.99

$

Usually ships in 2-4 days

0

15

Echo 62023-15421

GASKET
(Superseded to V104001140)

$8.49

$

Usually ships in 2-4 days

0

16

Echo 62023-15430

SHIELD, EXHAUST
(Superseded to V104001470)

$1.99

$

In Stock, only 4 left!

0

17

Echo 01610-05085

WASHER - 5
(Superseded to 90060400005)

$0.99

$

In Stock, Qty 20+

0

18

Echo 9110905060

SCREW - 5X60

$1.49

$

In Stock, only 3 left!

0

19

Echo 01020-05200

SCREW - 5X20
(Superseded to 90010505020)

$1.49

$

In Stock, Qty 20+

0

20

Echo 01020-05080

SCREW - 5X8
(Superseded to 90010505008)

$0.99

$

In Stock, Qty 20+

0

21

Echo 20016-12212

INSULATOR
(Superseded to 99909-12212)

$11.99

$

In Stock, only 1 left!

0

22

Echo 20011-12260

NUT
(Superseded to V263000260)

$0.99

$

In Stock, Qty 13

0
