T 230 XR - Shindaiwa String Trimmer (SN: T23520001001 - T23520999999) Fuel System Parts Diagram

String Trimmer

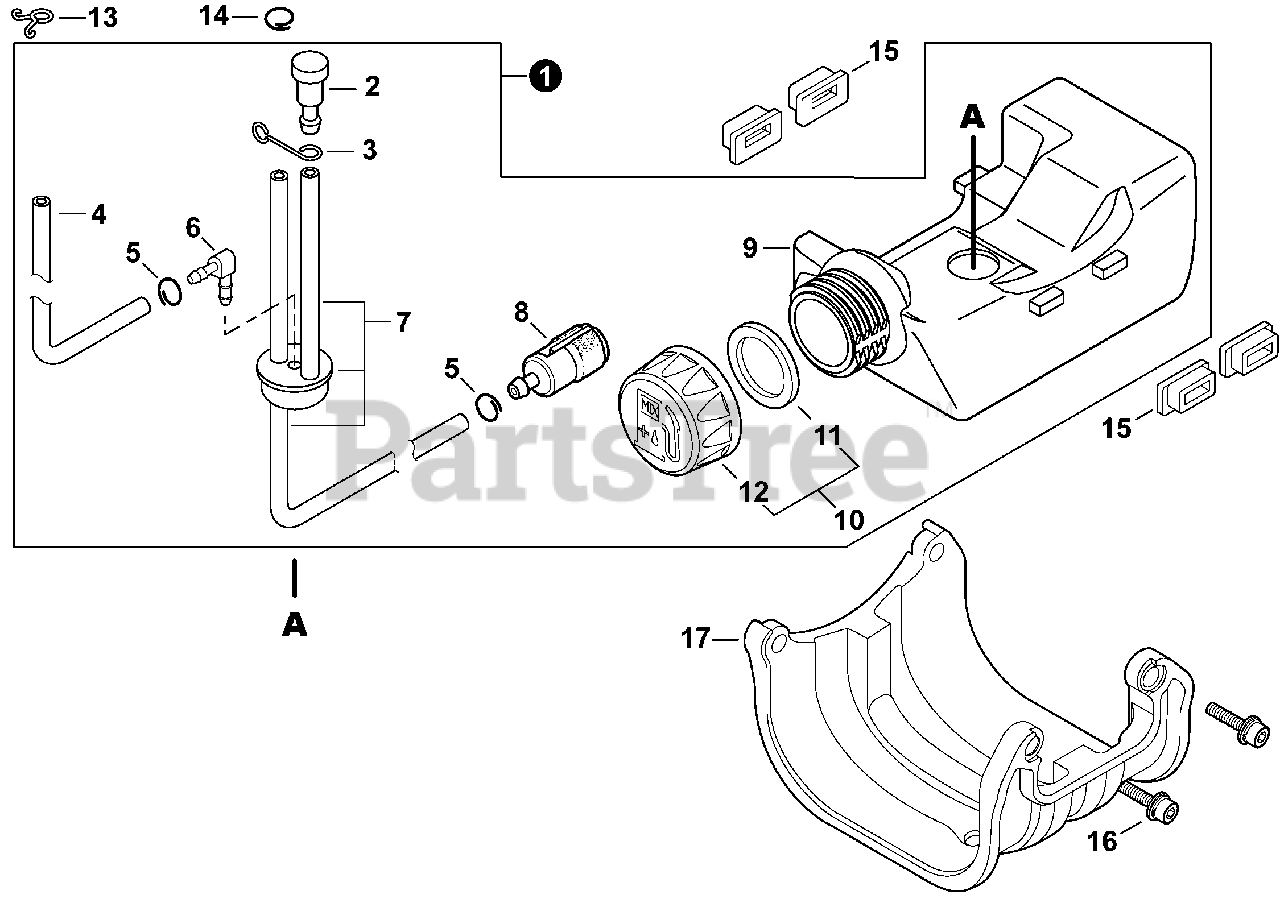

Fuel System Parts Diagram

  • Title

1

Echo A038000430

TANK ASSY, FUEL
(Superseded to A038000431)

Note: Includes ITEMS 2-12

$46.99

$

In Stock, only 1 left!

0

2

Echo A356000040

VENT ASSY

$6.99

$

In Stock, Qty 20+

0

3

Echo A358000040

CLIP, VENT ASSY

$0.99

$

In Stock, Qty 6

0

4

Echo V471002790

PIPE, FUEL RETURN

$1.99

$

In Stock, only 4 left!

0

5

Echo V490000500

CLIP Ø6

$0.99

$

In Stock, Qty 20+

0

6

Echo V186000270

CONNECTOR, PIPE

$2.99

$

In Stock, Qty 17

0

7

Echo V470001210

PIPE, FUEL

$4.99

$

In Stock, Qty 16

0

8

Echo A369000070

FILTER, FUEL 125-528
(Superseded to A369000470)

$8.99

$

In Stock, Qty 20+

0

9

Echo A350001530

TANK, FUEL

$15.99

$

Usually ships in 2-4 days

0

10

Echo A033000070

CAP ASSY, FUEL

Note: Includes ITEMS 11-12

$3.99

$

In Stock, Qty 20+

0

11

Echo V107000010

GASKET, FUEL CAP

$1.99

$

In Stock, Qty 20+

0

12

Echo A355000180

CAP, FUEL
(Superseded to A033000330)

$7.49

$

In Stock, only 1 left!

0

13

Echo V490000510

CLIP, SPRING

$0.99

$

In Stock, Qty 14

0

14

Echo V490000500

CLIP Ø6

$0.99

$

In Stock, Qty 20+

0

15

Echo V420002630

CUSHION, FUEL TANK

$1.49

$

In Stock, Qty 12

0

16

Echo V203000590

BOLT M5×16
(Superseded to V203000591)

$0.99

$

In Stock, Qty 15

0

17

Echo A175000220

GUARD, PLASTIC FUEL TANK

$12.99

$

In Stock, only 1 left!

0
