T 230 XR EMC - Shindaiwa String Trimmer (SN: 09013195 - 09095664) Crankcase / Engine Cover / Fan Cover Parts Diagram

String Trimmer

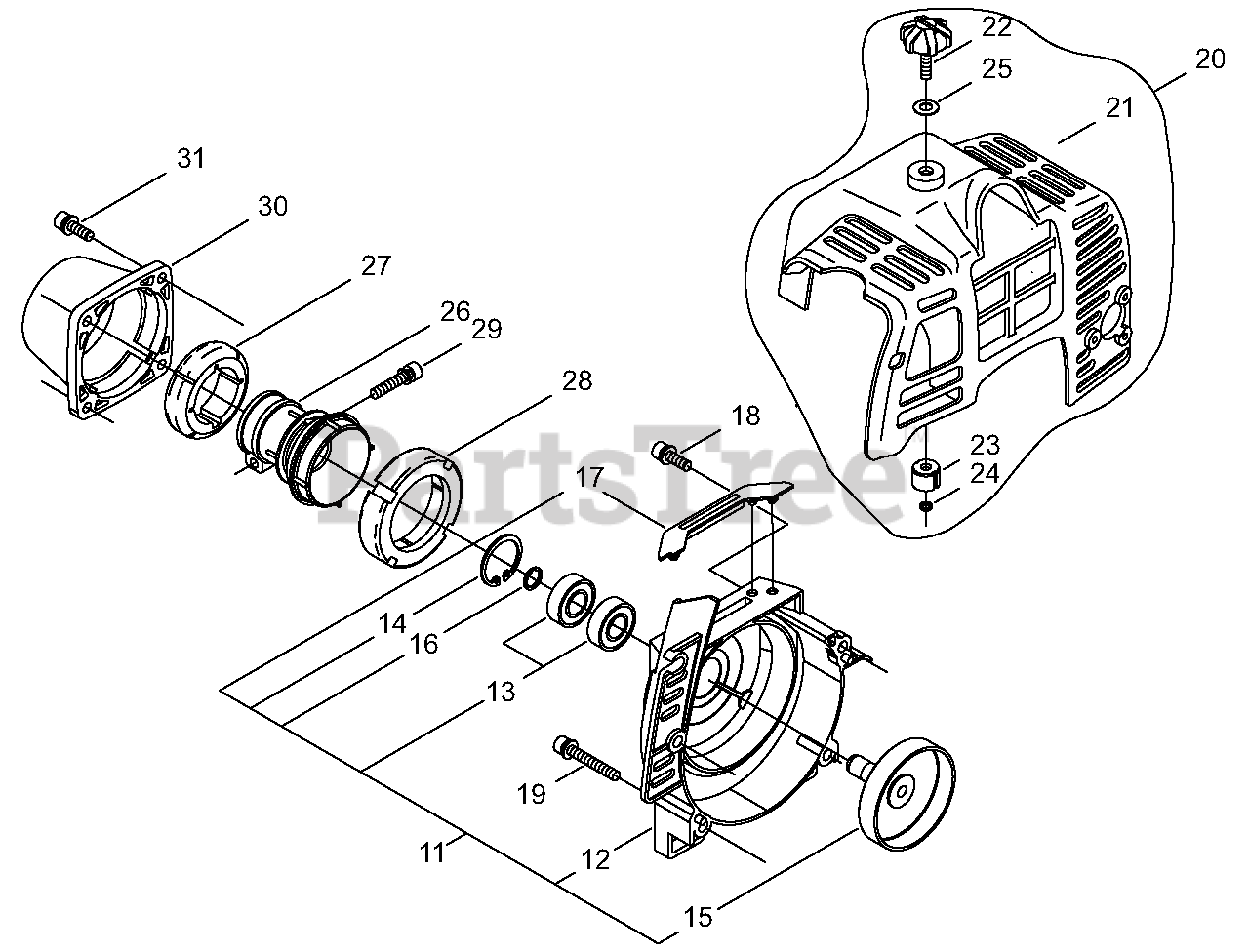

Crankcase / Engine Cover / Fan Cover Parts Diagram

  • Title

11

Echo P021027660

SHORT BLOCK
(Superseded to P021030350)

Note: Includes ITEMS 2-51

$122.99

$

Usually ships in 2-4 days

0

12

Echo A172001370

CASE, FAN

$34.99

$

Usually ships in 2-4 days

0

13

Echo 9404406000

BEARING, BALL - 6000ZZ

$9.99

$

In Stock, Qty 14

0

14

Echo 9242426000

RING, RETAINING - 26

$0.99

$

In Stock, Qty 6

0

15

Echo A556000960

DRUM, CLUTCH
(Superseded to A556001300)

$23.99

$

In Stock, Qty 9

0

16

Echo V583000160

RING, RETAINING

$1.49

$

In Stock, Qty 20+

0

17

Echo V420002620

CUSHION

$1.99

$

Usually ships in 2-4 days

0

18

Echo V203000590

SCREW - 5X16
(Superseded to V203000591)

$0.99

$

In Stock, Qty 15

0

19

Echo V203000610

SCREW - 5X45

$1.99

$

In Stock, Qty 20+

0

20

Echo P021025190

ENGINE COVER ASSY
(Superseded to P021025191)

$24.99

$

In Stock, only 1 left!

0

21

Echo A160001840

COVER, ENGINE
(Superseded to A160001841)

$12.99

$

In Stock, only 1 left!

0

22

Echo V299000420

THUMBSCREW

$3.49

$

In Stock, only 1 left!

0

23

Echo V353000430

INSULATOR

$1.99

$

In Stock, Qty 8

0

24

Echo V490000680

CLIP

$0.99

$

In Stock, Qty 8

0

25

Echo V347000030

WASHER - CONICAL

$0.99

$

In Stock, Qty 7

0

26

Echo A575000180

CLAMP, MAIN PIPE

$18.99

$

In Stock, only 2 left!

0

27

Echo V420002640

CUSHION - FRONT
(Superseded to V420002641)

$3.49

$

Usually ships in 2-4 days

0

28

Echo V420002650

CUSHION - REAR

$4.49

$

In Stock, only 2 left!

0

29

Echo V203000560

SCREW - 5X25

$1.99

$

In Stock, only 2 left!

0

30

Echo A575000460

CAP

$7.99

$

In Stock, only 1 left!

0

31

Echo V203000590

SCREW - 5X16
(Superseded to V203000591)

$0.99

$

In Stock, Qty 15

0
