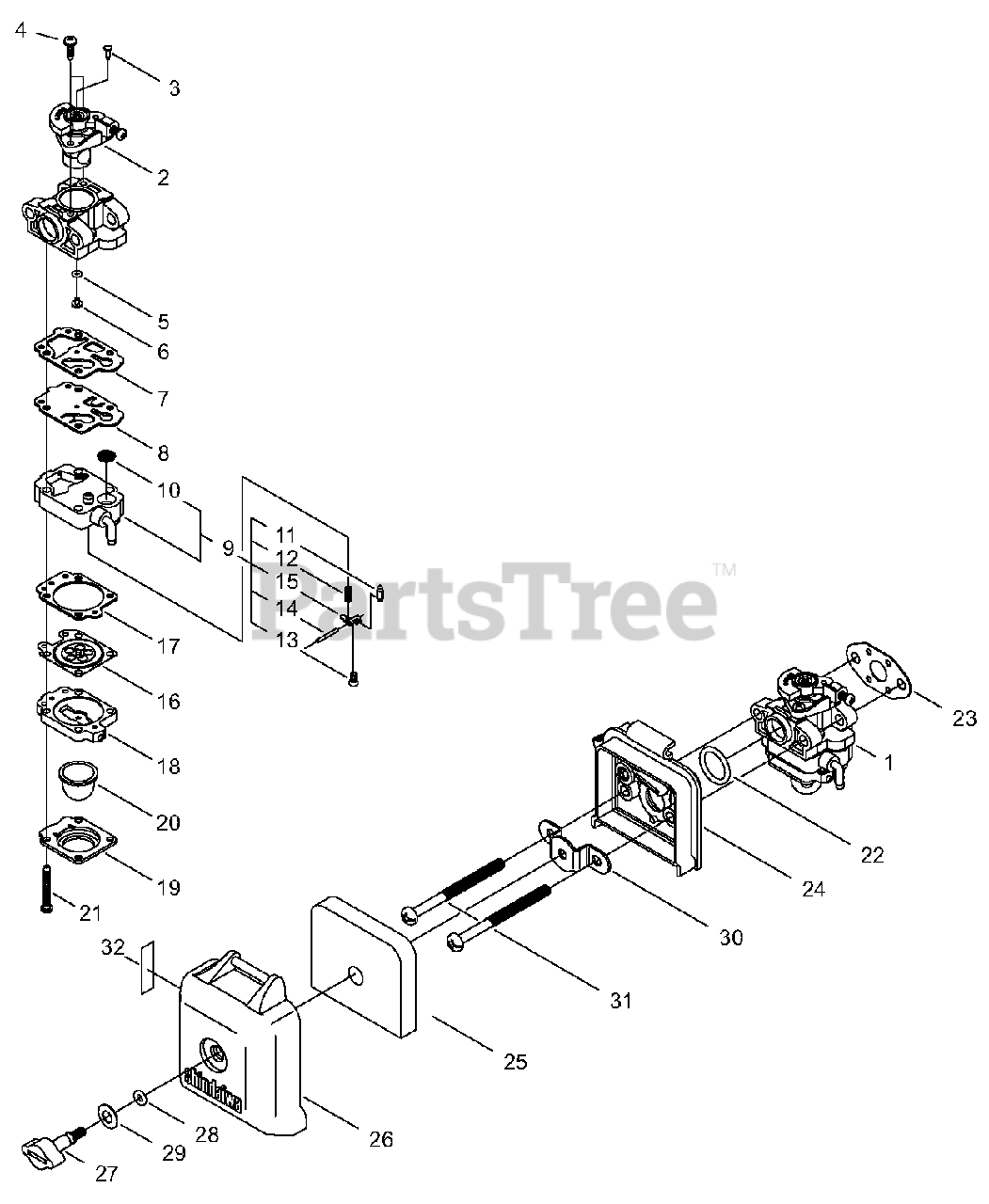

T 230 XR EMC - Shindaiwa String Trimmer (SN: 09013195 - 09095664) Carburetor / Air Filter Parts Diagram

String Trimmer

Carburetor / Air Filter Parts Diagram

  • Title

1

Echo A021002190

CARBURETOR

Note: 20016-81021

$67.99

$

In Stock, only 1 left!

0

2

Echo 12311605160

VALVE, THROTTLE

Note: 20016-81180

$15.99

$

In Stock, only 1 left!

0

3

Echo 12314644330

PLUG, WELCH

Note: 22154-81270

$0.99

$

In Stock, only 1 left!

0

4

Echo 12311444330

SCREW

Note: 70064-81290

$0.99

$

Usually ships in 2-4 days

0

5

Echo 12318340630

O-RING
(Superseded to 12318305960)

Note: 70097-81220

$1.99

$

In Stock, Qty 5

0

6

Echo 12318411810

JET, MAIN - 40

Note: 70064-81230

$7.49

$

Usually ships in 2-4 days

0

7

Echo 12312540630

GASKET, PUMP

Note: 70097-81310

$4.99

$

In Stock, only 1 left!

0

8

Echo 12311240630

DIAPHRAGM, PUMP

Note: 70097-81320

$12.99

$

In Stock, only 1 left!

0

9

Echo P003000440

PUMP BODY ASSY

Note: 20016-81410

$18.99

$

In Stock, Qty 17

0

10

Echo 12312610631

STRAINER

Note: 70030-81380

$1.49

$

In Stock, Qty 19

0

11

Echo 12313719830

VALVE, INLET NEEDLE

Note: 20036-81440

$18.99

$

Usually ships in 2-4 days

0

12

Echo P003000450

SPRING, METERING LEVER

Note: 20016-81270

$0.99

$

Usually ships in 2-4 days

0

13

Echo 12313905560

SCREW, METERING LEVER PIN

Note: 20016-81450

$0.99

$

Usually ships in 2-4 days

0

14

Echo 12313803930

PIN, METERING LEVER

Note: 22100-81250

$5.99

$

In Stock, only 4 left!

0

15

Echo 12312338330

LEVER, METERING

Note: 22100-81230

$6.49

$

In Stock, only 1 left!

0

16

Echo 12314103930

DIAPHRAGM, METERING

Note: 22100-81260

$13.99

$

In Stock, Qty 6

0

17

Echo 12314005560

GASKET, METERING

Note: 20016-81280

$3.99

$

In Stock, only 2 left!

0

18

Echo 12318005560

PURGE BASE ASSY

Note: 20016-81420

$7.49

$

In Stock, only 1 left!

0

19

Echo 12314205560

RETAINER, PURGE BULB

Note: 20016-81510

$4.49

$

In Stock, Qty 20+

0

20

Echo 12318140630

BULB, PURGE

Note: 20036-81670

$5.49

$

In Stock, Qty 20+

0

21

Echo 12311005560

SCREW, PUMP COVER

Note: 20016-81140

$2.99

$

In Stock, Qty 20+

0

22

Echo 90072000015

O-RING - 15

Note: 20016-81250

$1.99

$

In Stock, Qty 20+

0

23

Echo V103001210

GASKET, INTAKE

Note: 20016-81530

$0.99

$

In Stock, Qty 10

0

24

Echo A023000230

CASE, AIR FILTER

Note: 70140-81710

$7.49

$

In Stock, Qty 7

0

25

Echo A226000740

FILTER, AIR - FOAM

Note: 20018-81750

$3.99

$

In Stock, Qty 7

0

26

Echo A232000940

COVER, AIR FILTER

Note: 70140-81760

$5.49

$

In Stock, only 1 left!

0

27

Echo V299000430

THUMBSCREW

Note: 20115-81780

$3.99

$

In Stock, only 1 left!

0

28

Echo V581000200

O-RING

Note: 22100-82430

$0.99

$

In Stock, Qty 6

0

29

Echo V347000030

WASHER - CONICAL

Note: 20024-81790

$0.99

$

In Stock, Qty 7

0

30

Echo A244000190

PLATE, PREVENT

Note: 20018-81721

$3.99

$

In Stock, Qty 6

0

31

Echo 9157905060

SCREW - 5X60

Note: 11203-05608

$0.99

$

Usually ships in 2-4 days

0

32

Echo X506000130

LABEL - CHOKE

Note: 19404-00008

$0.99

$

In Stock, Qty 20+

0
