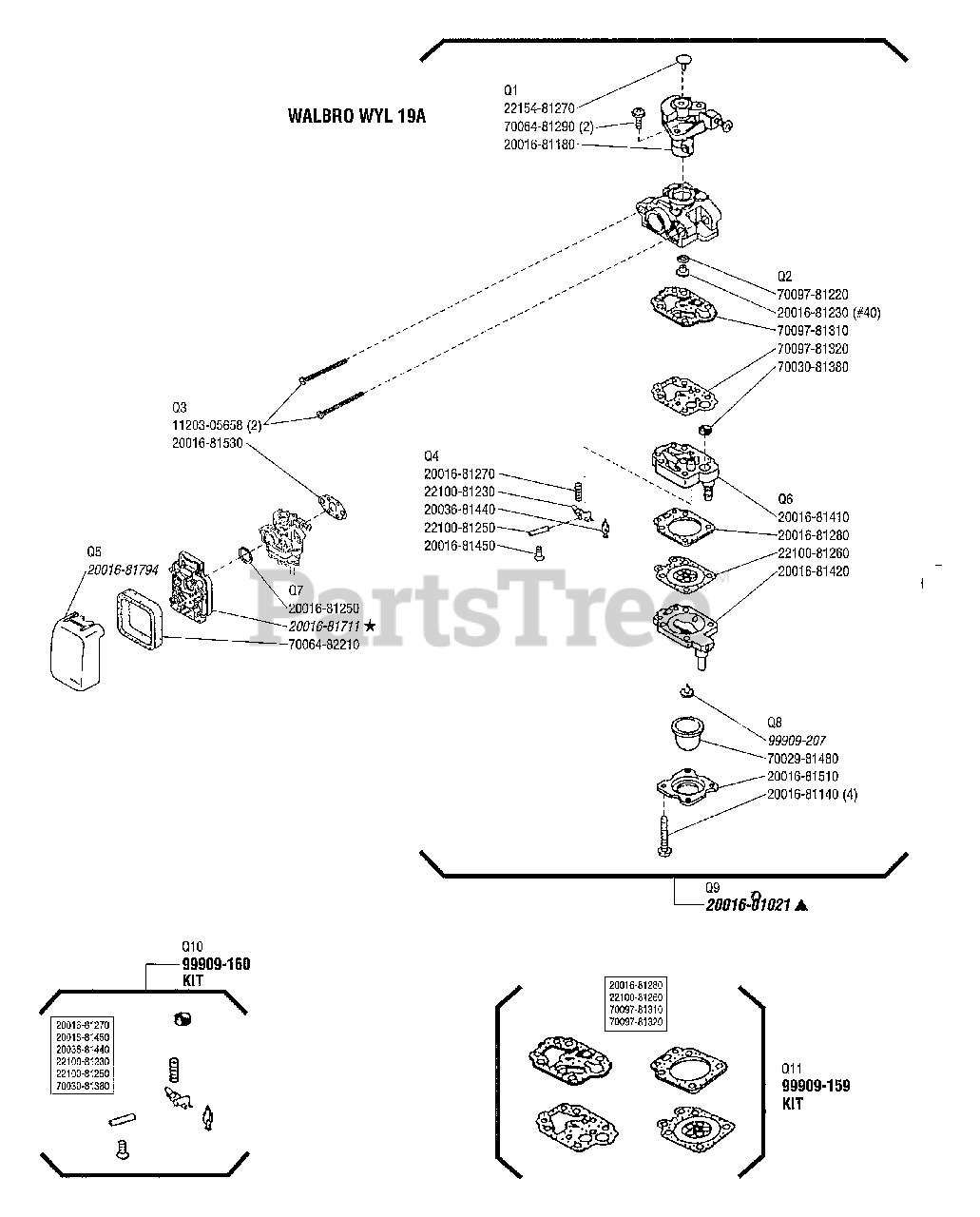

T 230 X - Shindaiwa String Trimmer (SN: 2000303 - 9999999) Carburetor Parts Diagram

String Trimmer

Carburetor Parts Diagram

  • Title

Q3-11203-05658

Echo 11203-05658

SCREW PM
(Superseded to 9157905065)

$0.99

$

Usually ships in 2-4 days

0

Q3-20016-81530

Echo 20016-81530

GASKET
(Superseded to V103001210)

$0.99

$

In Stock, Qty 10

0

Q5-20016-81794

Echo 20016-81794

COVER, AIR CLEANER
(Superseded to 99909-313)

$35.99

$

In Stock, only 2 left!

0

Q7-20016-81250

Echo 20016-81250

O-RING
(Superseded to 90072000015)

$1.99

$

In Stock, Qty 20+

0

Q7-20016-81711

Echo 20016-81711

CLEANER BODY
(Superseded to Discontinued)

$

$

Not available

Q7-70064-82210

Echo 70064-82210

FILTER, USE FOR T18 ONLY
(Superseded to A226000590)

$2.49

$

In Stock, Qty 20+

0

Q10-99909-160

Echo 99909-160

KWIK KIT

$7.49

$

In Stock, Qty 7

0

Q10-20016-81270

Echo 20016-81270

SPRING
(Superseded to P003000450)

$0.99

$

Usually ships in 2-4 days

0

Q10-20016-81450

Echo 20016-81450

SCREW, METERING LEVER PIN
(Superseded to 12313905560)

$0.99

$

Usually ships in 2-4 days

0

Q10-20036-81440

Echo 20036-81440

NEEDLE, VALVE
(Superseded to 12313719830)

$18.99

$

Usually ships in 2-4 days

0

Q10-22100-81230

Echo 22100-81230

LEVER, METERING
(Superseded to 12312338330)

$6.49

$

In Stock, only 1 left!

0

Q10-22100-81250

Echo 22100-81250

PIN, METERING, LEVER
(Superseded to 12313803930)

$5.99

$

In Stock, only 4 left!

0

Q10-70030-81380

Echo 70030-81380

SCREEN, FUEL INLET
(Superseded to 12312610631)

$1.49

$

In Stock, Qty 19

0

Q11-99909-159

Echo 99909-159

GASKET/DIAPHRAGM KIT

$14.99

$

In Stock, only 2 left!

0

Q11-20016-81280

Echo 20016-81280

GASKET, METERING/DIAPHRAGM
(Superseded to 12314005560)

$3.99

$

In Stock, only 2 left!

0

Q11-22100-81260

Echo 22100-81260

DIAPHRAGM ASSY
(Superseded to 12314103930)

$13.99

$

In Stock, Qty 6

0

Q11-70097-81310

Echo 70097-81310

GASKET, PUMP
(Superseded to 12312540630)

$4.99

$

In Stock, only 1 left!

0

Q11-70097-81320

Echo 70097-81320

DIAPHRAGM
(Superseded to 12311240630)

$12.99

$

In Stock, only 1 left!

0

Q9-20016-81021

Echo 20016-81021

CARBURETOR ASSY
(Superseded to A021002190)

$67.99

$

In Stock, only 1 left!

0

Q8-99909-207

Echo 99909-207

CHECK VALVE

$2.49

$

In Stock, only 3 left!

0

Q8-70029-81480

Echo 70029-81480

PRIMING PUMP
(Superseded to 20036-81670)

$5.49

$

In Stock, Qty 20+

0

Q8-20016-81510

Echo 20016-81510

COVER, PRIMER PUMP
(Superseded to 12314205560)

$4.49

$

In Stock, Qty 20+

0

Q8-20016-81140

Echo 20016-81140

SCREW, COVER
(Superseded to 12311005560)

$2.99

$

In Stock, Qty 20+

0

Q6-20016-81410

Echo 20016-81410

PUMP BODY COMPLETE
(Superseded to P003000440)

$18.99

$

In Stock, Qty 17

0

Q6-20016-81280

Echo 20016-81280

GASKET, METERING/DIAPHRAGM
(Superseded to 12314005560)

$3.99

$

In Stock, only 2 left!

0

Q6-22100-81260

Echo 22100-81260

DIAPHRAGM ASSY
(Superseded to 12314103930)

$13.99

$

In Stock, Qty 6

0

Q6-20016-81420

Echo 20016-81420

BODY ASSY, AIR PURGE
(Superseded to 12318005560)

$7.49

$

In Stock, only 1 left!

0

Q2-70097-81220

Echo 70097-81220

O-RING
(Superseded to 12318340630)

$1.99

$

In Stock, Qty 5

0

Q2-20016-81230

Echo 20016-81230

JET, MAIN, USE 70064-81230
(Superseded to 70064-81230)

$7.49

$

Usually ships in 2-4 days

0

Q2-70097-81310

Echo 70097-81310

GASKET, PUMP
(Superseded to 12312540630)

$4.99

$

In Stock, only 1 left!

0

Q2-70097-81320

Echo 70097-81320

DIAPHRAGM
(Superseded to 12311240630)

$12.99

$

In Stock, only 1 left!

0

Q2-70030-81380

Echo 70030-81380

SCREEN, FUEL INLET
(Superseded to 12312610631)

$1.49

$

In Stock, Qty 19

0

Q1-22154-81270

Echo 22154-81270

PLUG
(Superseded to 12314644330)

$0.99

$

In Stock, only 1 left!

0

Q1-70064-81290

Echo 70064-81290

SCREW, COLLAR THROTTLE
(Superseded to 12311444330)

$0.99

$

Usually ships in 2-4 days

0

Q1-20016-81180

Echo 20016-81180

VALVE ASSY
(Superseded to 12311605160)

$15.99

$

In Stock, only 1 left!
