T 230 X - Shindaiwa String Trimmer (SN: 2000303 - 9999999) Accessories Parts Diagram

String Trimmer

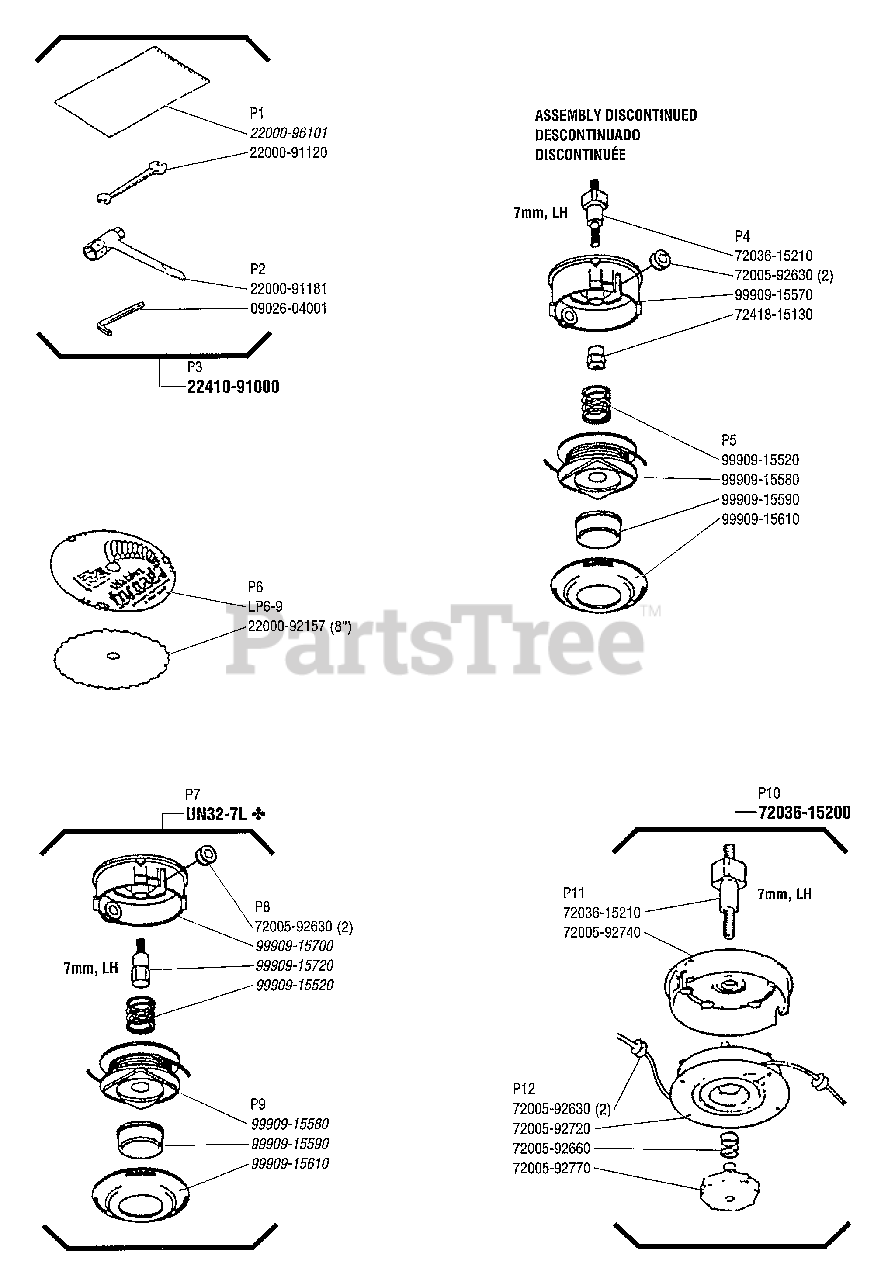

Accessories Parts Diagram

  • Title

P1-22000-96101

Echo 22000-96101

ROD BUSHING ASSY

$

$

Not available

P1-22000-91120

Echo 22000-91120

Spanner
(Superseded to X600000020)

$0.99

$

In Stock, only 3 left!

0

P2-22000-91181

Echo 22000-91181

Wrench Plug
(Superseded to X602000150)

$4.49

$

Usually ships in 2-4 days

0

P2-09026-04001

Echo 09026-04001

WRENCH, HEX
(Superseded to X605000100)

$1.99

$

In Stock, Qty 7

0

P3-22410-91000

Echo 22410-91000

SERVICE TOOL KIT
(Superseded to P021048890)

$9.49

$

In Stock, Qty 5

0

P6-22000-92157

Echo 22000-92157

BLADE, 25 MM ID - 30 TOOTH -- 8"

$

$

Currently unavailable

P6-LP6-9

Echo LP6-9

BLADE - 6 TOOTH -- 9" TORNADO

$

$

Currently unavailable

P7-UN32-7L

Echo UN32-7L

TRIMMER HEAD ASSY

$

$

Currently unavailable

P8-72005-92630

Echo 72005-92630

EYELET

$1.99

$

In Stock, Qty 20+

0

P8-99909-15700

Echo 99909-15700

HOUSING, ROUND LH

$16.99

$

In Stock, only 1 left!

0

P8-99909-15720

Echo 99909-15720

BOLT, ARBOR

$6.99

$

In Stock, only 3 left!

0

P8-99909-15520

Echo 99909-15520

SPRING

$1.99

$

In Stock, only 2 left!

0

P9-99909-15580

Echo 99909-15580

SPOOL LH

$11.99

$

In Stock, Qty 5

0

P9-99909-15590

Echo 99909-15590

BUTTON, KNOB

$4.99

$

In Stock, only 4 left!

0

P9-99909-15610

Echo 99909-15610

COVER, LH

$13.99

$

In Stock, only 1 left!

0

P12-72005-92630

Echo 72005-92630

EYELET

$1.99

$

In Stock, Qty 20+

0

P12-72005-92720

Echo 72005-92720

SPOOL

$15.99

$

In Stock, only 1 left!

0

P12-72005-92660

Echo 72005-92660

SPRING

$1.99

$

In Stock, only 4 left!

0

P12-72005-92770

Echo 72005-92770

KNOB LH

$13.99

$

In Stock, only 1 left!

0

P11-72036-15210

Echo 72036-15210

BOLT, SHAFT, 7MM LH

$14.99

$

In Stock, Qty 5

0

P11-72005-92740

Echo 72005-92740

HOUSING
(Superseded to Discontinued)

$

$

Not available

P10-72036-15200

Echo 72036-15200

$

$

Currently unavailable

P5-99909-15520

Echo 99909-15520

SPRING

$1.99

$

In Stock, only 2 left!

0

P5-99909-15580

Echo 99909-15580

SPOOL LH

$11.99

$

In Stock, Qty 5

0

P5-99909-15590

Echo 99909-15590

BUTTON, KNOB

$4.99

$

In Stock, only 4 left!

0

P5-99909-15610

Echo 99909-15610

COVER, LH

$13.99

$

In Stock, only 1 left!

0

P4-72036-15210

Echo 72036-15210

BOLT, SHAFT, 7MM LH

$14.99

$

In Stock, Qty 5

0

P4-72005-92630

Echo 72005-92630

EYELET

$1.99

$

In Stock, Qty 20+

0

P4-99909-15570

Echo 99909-15570

HOUSING, SQUARE LH

$16.99

$

In Stock, only 1 left!

0

P4-72418-15130

Echo 72418-15130

NUT

$5.99

$

Usually ships in 2-4 days

0
