T 230 - Shindaiwa String Trimmer (Original Version) Gearcase Parts Diagram

String Trimmer

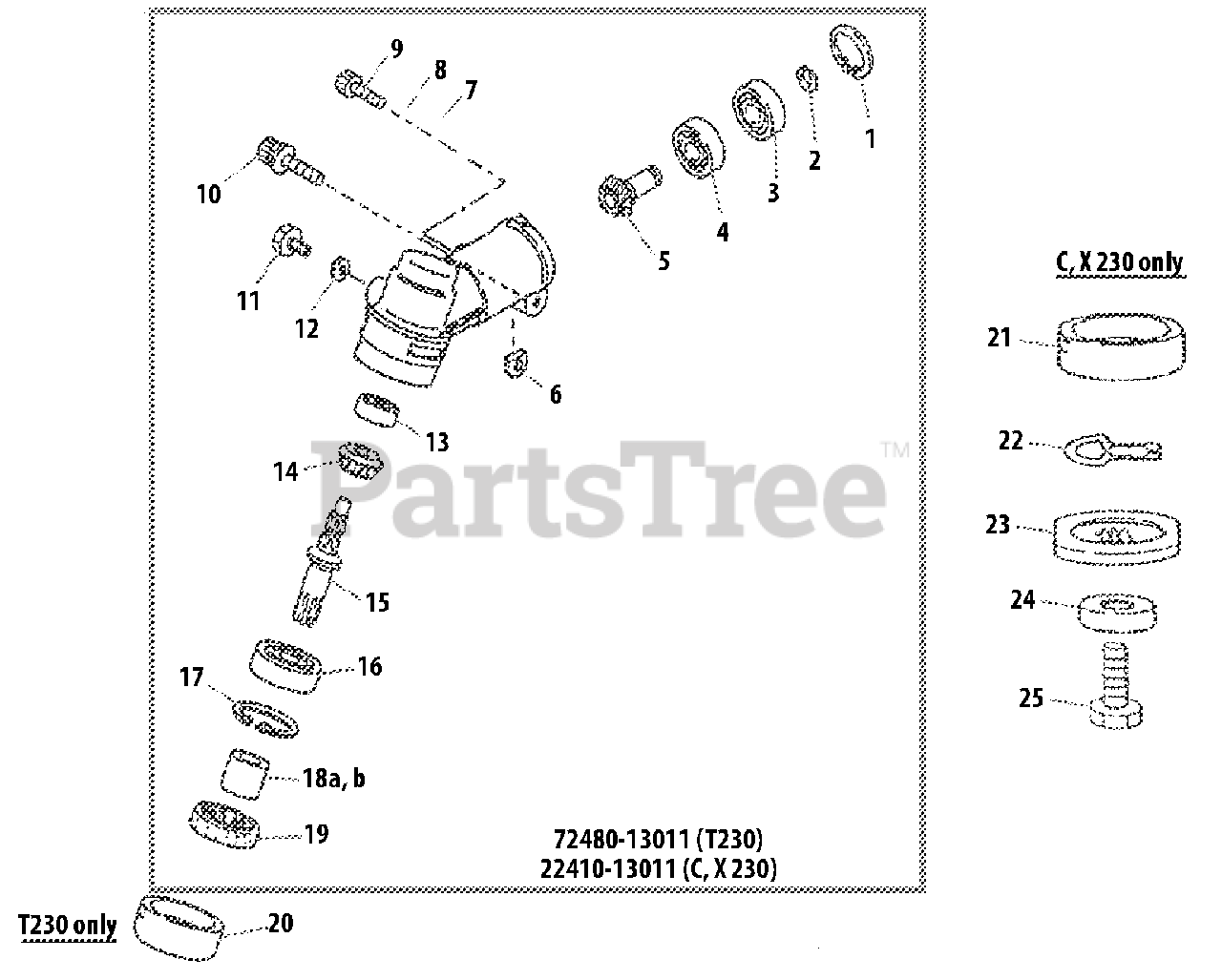

Gearcase Parts Diagram

  • Title
72480-13011

Echo 72480-13011

GEAR CASE ASSY
(Superseded to 63023-63020)

Note: T230

$104.99

$

In Stock, Qty 10

0

22410-13011

Echo 22410-13011

GEAR CASE ASSY
(Superseded to C051000400)

Note: C,X230

$112.99

$

Usually ships in 2-4 days

0

1

Echo 02432-22100

RING, RETAINING - 22
(Superseded to 9242422000)

$0.99

$

In Stock, Qty 5

0

2

Echo 22035-13340

RING, RETAINING

$0.99

$

In Stock, Qty 20+

0

3

Echo 02002-00608

BEARING, BALL - 608ZZ
(Superseded to 90080400608)

$12.99

$

In Stock, only 1 left!

0

4

Echo 02000-00608

BEARING, BALL - 608
(Superseded to 90080000608)

$5.99

$

Usually ships in 2-4 days

0

5

Echo 22035-13391

GEAR - SHAFT
(Superseded to V651000700)

$19.99

$

Usually ships in 2-4 days

0

6

Echo 22000-13420

SHIM
(Superseded to V340000300)

$0.99

$

In Stock, Qty 8

0

7

Echo 01610-05080

WASHER - 5
(Superseded to 90060000005)

$0.99

$

In Stock, Qty 20+

0

8

Echo 01600-05131

LOCKWASHER - 5
(Superseded to 90060500005)

$0.99

$

In Stock, Qty 10

0

9

Echo 90010505012

SCREW - 5X12

$1.49

$

In Stock, Qty 20+

0

10

Echo 11023-05250

SCREW - 5X25
(Superseded to V203000560)

$1.99

$

In Stock, only 2 left!

0

11

Echo 01014-06100

BOLT - 6X10
(Superseded to 9103006010)

$0.99

$

In Stock, only 3 left!

0

12

Echo 22000-13410

WASHER
(Superseded to V304000180)

$0.99

$

In Stock, only 4 left!

0

13

Echo 02006-00626

BEARING, BALL - 626
(Superseded to 90081200626)

$13.99

$

Usually ships in 2-4 days

0

14

Echo 22035-13220

GEAR - BEVEL
(Superseded to V651000690)

$15.99

$

Usually ships in 2-4 days

0

15

Echo 22410-13210

GEAR - SHAFT
(Superseded to C534000680)

$16.99

$

In Stock, only 1 left!

0

16

Echo 02000-06000

BEARING, BALL - 6000
(Superseded to 90080006000)

$10.99

$

Usually ships in 2-4 days

0

17

Echo 02432-26120

RING, RETAINING - 26
(Superseded to 9242426000)

$0.99

$

In Stock, Qty 6

0

18

Echo 72432-13230

COLLAR
(Superseded to V356000490)

Note: T230

$3.49

$

In Stock, only 1 left!

0

18

Echo 22035-13230

COLLAR
(Superseded to V356000480)

Note: C230

$2.99

$

In Stock, only 2 left!

0

19

Echo 22035-13140

SEAL, OIL
(Superseded to V509000000)

$3.49

$

In Stock, Qty 8

0

20

Echo 72432-13240

HOLDER
(Superseded to C535000500)

Note: T230

$5.99

$

In Stock, only 2 left!

0

21

Echo 22035-13242

HOLDER - A
(Superseded to C535000510)

$20.99

$

In Stock, only 2 left!

0

22

Echo 22410-13530

SLIDE CLIP
(Superseded to V490000530)

Note: C,X230

$1.99

$

In Stock, Qty 13

0

23

Echo 22410-13251

HOLDER B, REPLACES 22035-13251, REPLACES 22553-13250
(Superseded to C535000520)

Note: C,X230

$11.99

$

In Stock, only 2 left!

0

24

Echo 22035-13290

GUARD
(Superseded to C535000530)

Note: C,X230

$3.49

$

In Stock, Qty 7

0

25

Echo 22035-13271

BOLT - 7X18 -- LEFT HAND
(Superseded to V216000040)

Note: C,X230

$3.99

$

In Stock, only 2 left!

0
