T 225 (CMXGRAM7821291) (13ALA1ZT091) - Craftsman Lawn Tractor (2020) Engine Accessories Parts Diagram

Lawn Tractor

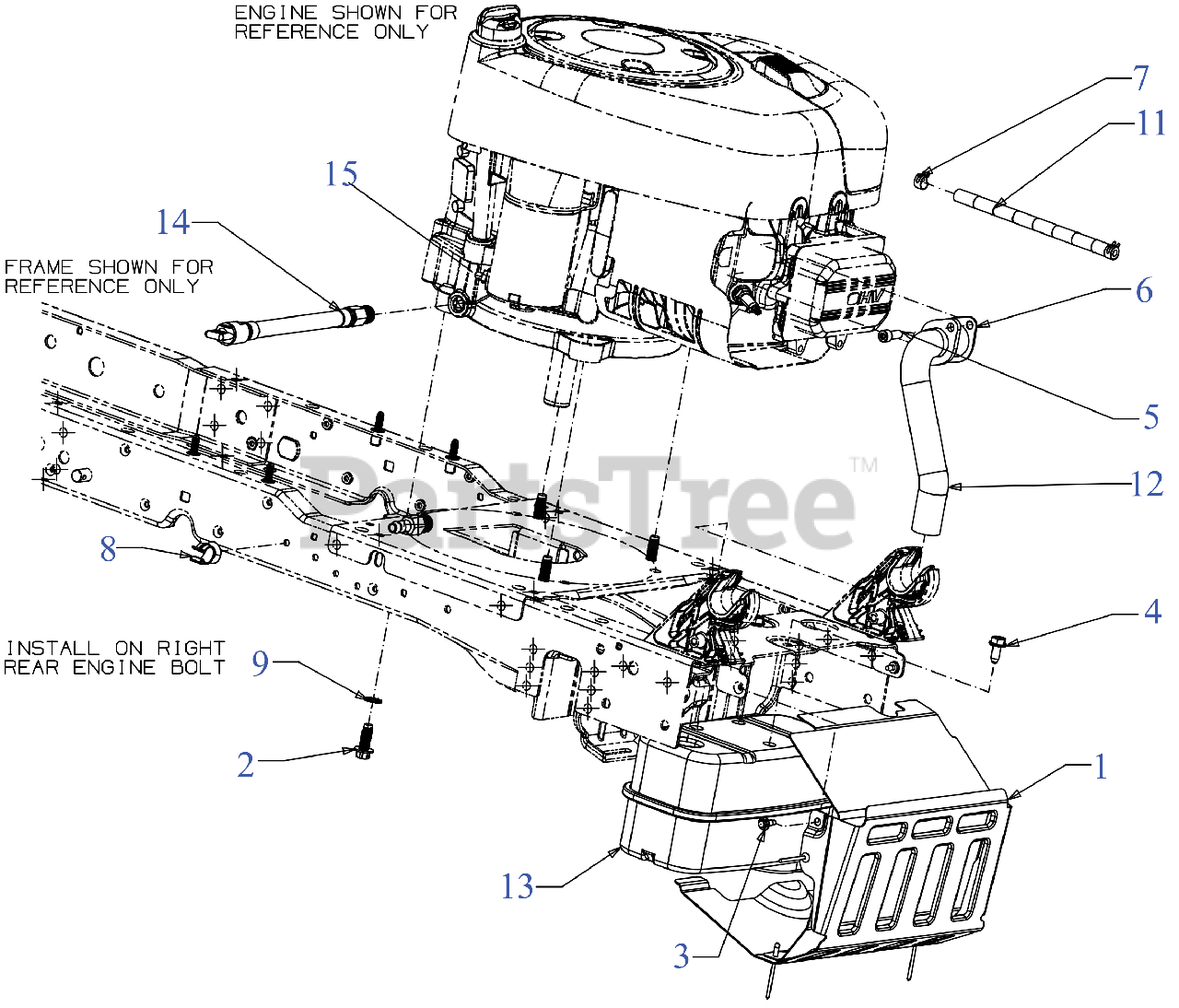

Engine Accessories Parts Diagram

  • Title
1

MTD 983-05142A

MUFFLER SHIELD ASSEMBLY

$81.99

$

Usually ships in 3-6 days

0

1

MTD 728-04033

RIVET - 3/16"

Note: (Not Shown)

$3.49

$

Usually ships in 3-6 days

0

2

MTD 710-04683C

SCREW 3/8-16 x 1

$6.49

$

In Stock, only 3 left!

0

3

MTD 710-06133

SCREW M6-1 x .625

$3.99

$

In Stock, Qty 11

0

4

MTD 710-06256

SCREW M8-1.25 x .750

$3.49

$

In Stock, only 4 left!

0

5

MTD 710-1314A

SCREW 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

6

MTD BS-692236

EXHAUST GASKET

$5.49

$

In Stock, Qty 20+

0

7

MTD 726-0205

HOSE CLAMP 1/20

$3.99

$

In Stock, Qty 18

0

8

MTD 731-10746A

DRAIN HOSE CLIP

$7.49

$

Usually ships in 3-6 days

0

9

MTD 736-0148

LOCK WASHER 3/8

$3.99

$

In Stock, only 3 left!

0

11

MTD 751-10349-13

FUEL HOSE LOW PERMEATION

$17.99

$

In Stock, only 3 left!

0

12

MTD 751-14477

EXHAUST PIPE (B&S) (SINGLE)

$50.99

$

Usually ships in 3-6 days

0

13

MTD 951-14504A

EXHAUST MUFFLER (SINGLE)
(Superseded to 951-14504D)

$74.99

$

In Stock, Qty 8

0

14

MTD 753-08657

OIL DRAIN KIT (TWIN)

Note: Kohler Twin Cylinder Engine: Order and install one of 753-08657 and follow the instructions included with the kit.

$31.99

$

In Stock, only 2 left!

0

14

MTD 753-08659

OIL DRAIN KIT

Note: Kawasaki Engine: Order and install one of 753-08659 and follow the instructions included with the kit.

$

$

Not available

14

MTD 753-08658

OIL DRAIN KIT

Note: Cub Cadet OHV Engine or Kohler Single Cylinder Engine: Order and install one of 753-08658 and follow the instructions included with the kit.

$

$

Not available

15

MTD 712-05106

HEX NUT 1/4-20

$3.49

$

Usually ships in 3-6 days

0

MTD 490-000-C044

Cub Cadet 10W30 Engine Oil 32OZ

Note: Retail Packaged Part

$10.99

$

In Stock, Qty 20+

0

MTD 490-000-C059

Cub Cadet 5W30 Engine Oil 20OZ

Note: Retail Packaged Part

$9.99

$

In Stock, only 1 left!

0
