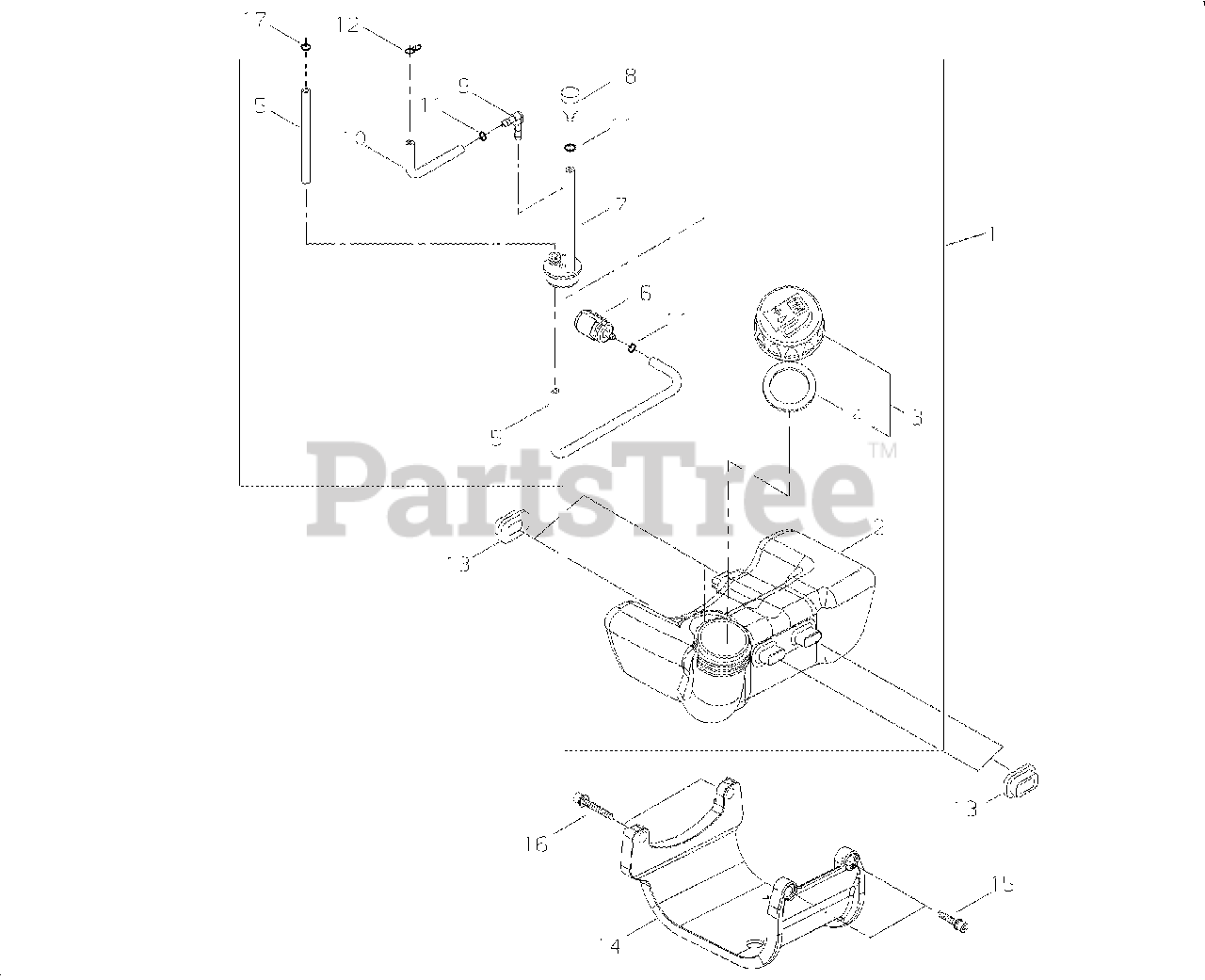

T 222 - Shindaiwa String Trimmer Fuel Tank Parts Diagram

String Trimmer

Fuel Tank Parts Diagram

  • Title

1

Echo 62123-85010

FUEL TANK ASSY
(Superseded to A038000110)

$

$

Not available

2

Echo 62100-85113

TANK, FUEL
(Superseded to A350001090)

$19.99

$

In Stock, only 1 left!

0

3

Echo 70043-85201

CAP ASSY
(Superseded to A033000070)

$3.99

$

In Stock, Qty 12

0

4

Echo 20000-85221

GASKET, CAP
(Superseded to V107000010)

$1.99

$

In Stock, Qty 20+

0

5

Echo 62123-85310

PIPE - FUEL
(Superseded to V471002500)

$2.49

$

In Stock, only 4 left!

0

6

Echo 20016-85400

FILTER, FUEL
(Superseded to A369000070)

$8.99

$

In Stock, Qty 20+

0

7

Echo V470000890

PIPE ASSY

$5.99

$

In Stock, only 2 left!

0

8

Echo 20035-85522

VENT, FUEL TANK
(Superseded to A356000040)

$6.99

$

In Stock, Qty 20+

0

9

Echo 20087-85340

CONNECTOR, PIPE
(Superseded to V186000270)

$2.99

$

In Stock, Qty 17

0

10

Echo 20140-83311

PIPE - RETURN
(Superseded to V471002490)

$1.99

$

In Stock, Qty 11

0

11

Echo 20020-85540

RING, RETAINING - 6
(Superseded to V490000500)

$0.99

$

In Stock, Qty 19

0

12

Echo 37013-85310

CLIP - SPRING
(Superseded to V490000510)

$0.99

$

In Stock, Qty 13

0

13

Echo 62901-85220

CUSHION, FUEL TANK
(Superseded to V420002220)

$0.99

$

In Stock, Qty 8

0

14

Echo 62100-85310

GUARD, FUEL TANK
(Superseded to A175000080)

$7.49

$

In Stock, only 1 left!

0

15

Echo 11024-05180

SCREW - 5X18
(Superseded to V203000510)

$0.99

$

Usually ships in 2-4 days

0

16

Echo 11022-05400

SCREW - 5X40
(Superseded to 11024-05400)

$1.99

$

In Stock, only 1 left!

0

17

Echo 20020-85540

RING, RETAINING - 6
(Superseded to V490000500)

$0.99

$

In Stock, Qty 19

0
