T 220 - Shindaiwa String Trimmer Engine Cover / Fan Cover / Muffler Cover Parts Diagram

String Trimmer

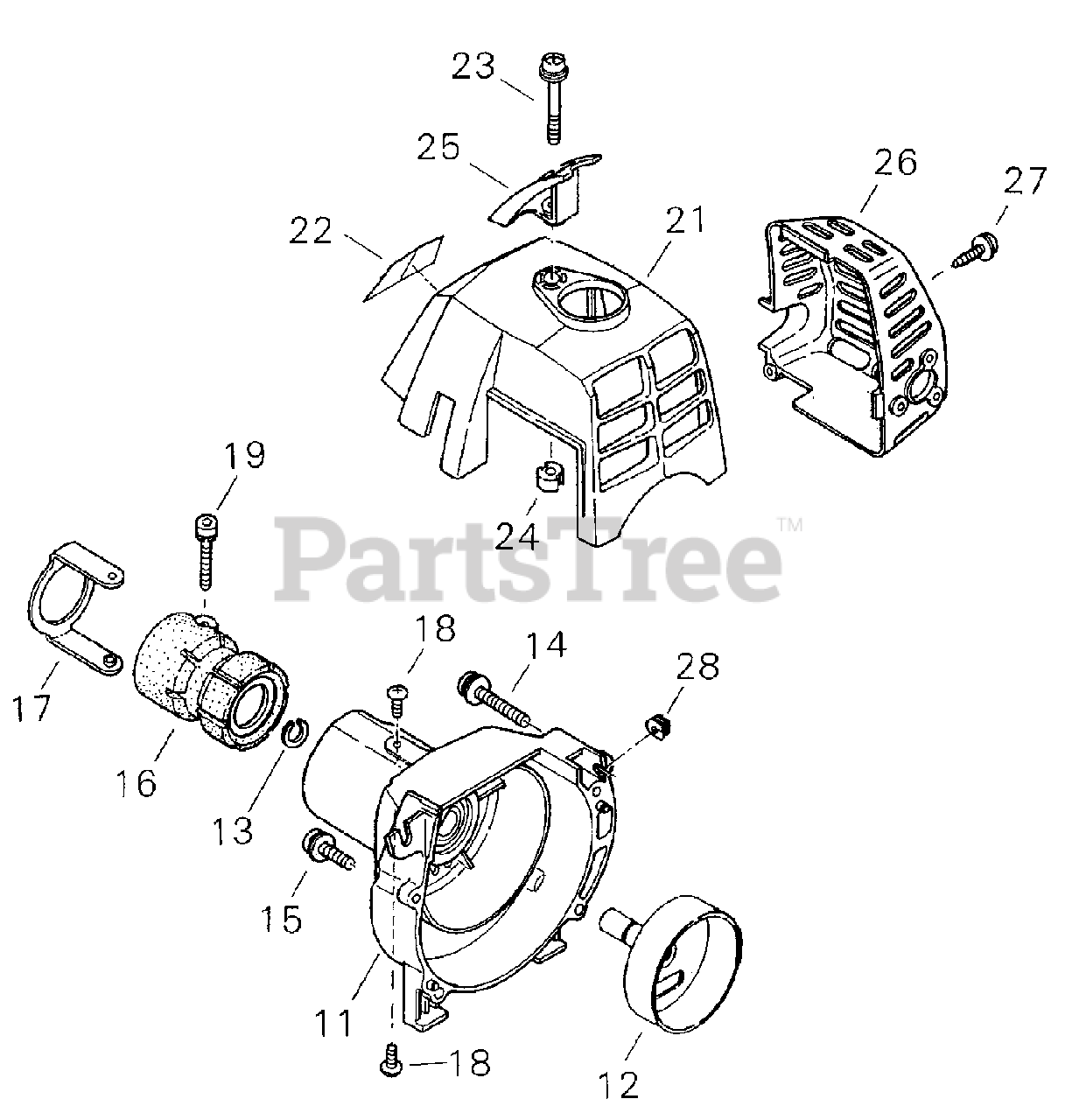

Engine Cover / Fan Cover / Muffler Cover Parts Diagram

  • Title

3-11

Echo 20142-31113

COVER, FAN
(Superseded to A172000990)

$37.99

$

Usually ships in 2-4 days

0

12

Echo 20016-31212

DRUM, CLUTCH
(Superseded to A556000650)

$16.99

$

In Stock, Qty 5

0

13

Echo 20000-31140

RING, RETAINING
(Superseded to V583000170)

$1.49

$

In Stock, Qty 6

0

14

Echo 11206-05300

SCREW - 5X30
(Superseded to 9157405030)

$0.99

$

In Stock, only 2 left!

0

15

Echo 11206-05160

SCREW - 5X16
(Superseded to 9157405016)

$0.99

$

In Stock, Qty 10

0

16

Echo 20087-31411

CUSHION
(Superseded to A575000190)

$16.99

$

In Stock, only 1 left!

0

17

Echo 20142-31420

STOPPER
(Superseded to C617000400)

$5.99

$

In Stock, only 1 left!

0

18

Echo 11260-04081

SCREW - 4X8
(Superseded to V252000100)

$0.99

$

Usually ships in 2-4 days

0

19

Echo 11020-05220

SCREW - 5X22
(Superseded to V203000620)

$0.99

$

Usually ships in 2-4 days

0

21

Echo 20140-32112

COVER, ENGINE
(Superseded to A160001370)

$11.99

$

Usually ships in 2-4 days

0

22

Echo 67000-91021

LABEL - MODEL
(Superseded to X504001340)

$1.49

$

In Stock, Qty 11

0

23

Echo 20140-31250

SCREW
(Superseded to V254000030)

$0.99

$

In Stock, Qty 6

0

24

Echo 20140-31260

INSULATOR
(Superseded to V354000240)

$0.99

$

In Stock, Qty 8

0

25

Echo 20140-34112

SPARK PLUG PROTECTOR
(Superseded to A162000170)

$1.99

$

In Stock, Qty 5

0

26

Echo 20142-32211

COVER, MUFFLER
(Superseded to A320000590)

$7.49

$

Usually ships in 2-4 days

0

27

Echo 22160-32210

SCREW
(Superseded to V253000710)

$0.99

$

In Stock, Qty 9

0

28

Echo 20011-72120

GROMMET
(Superseded to V136000060)

$0.99

$

Usually ships in 2-4 days

0
