T 220 - Shindaiwa String Trimmer Clutch Shoe / Piston Parts Diagram

String Trimmer

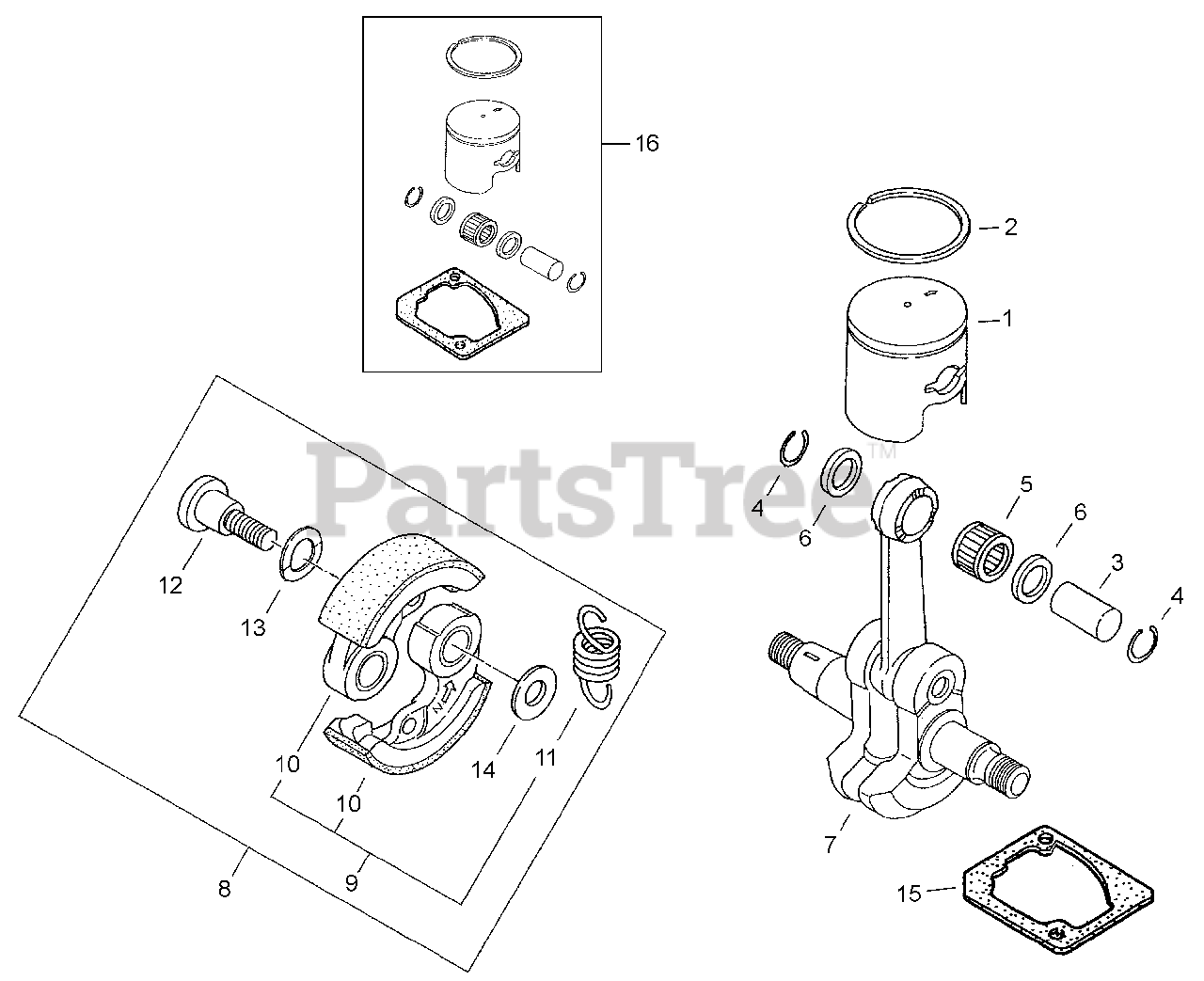

Clutch Shoe / Piston Parts Diagram

  • Title

4-1

Echo 20142-41110

PISTON
(Superseded to 20142-41111)

$32.99

$

In Stock, only 4 left!

0

2

Echo 20142-41210

RING, PISTON
(Superseded to A101000300)

$6.99

$

In Stock, Qty 8

0

3

Echo 20142-41310

PIN, PISTON
(Superseded to V606000050)

$1.99

$

In Stock, only 1 left!

0

4

Echo 70030-41320

RING, RETAINING
(Superseded to V580000070)

$0.99

$

In Stock, Qty 9

0

5

Echo 67000-41230

BEARING, NEEDLE
(Superseded to V553000100)

$5.99

$

In Stock, only 1 left!

0

6

Echo 81593

SPACER, PISTON

$7.99

$

In Stock, only 1 left!

0

7

Echo 67000-42010

CRANKSHAFT
(Superseded to A011000720)

$69.99

$

Usually ships in 2-4 days

0

8

Echo 67000-51011

CLUTCH ASSY
(Superseded to A056000330)

$27.99

$

Usually ships in 2-4 days

0

9

Echo 67000-51020

CLUTCH SHOE KIT
(Superseded to P021029170)

$23.99

$

In Stock, only 1 left!

0

10

Echo 20035-51111

SHOE, CLUTCH
(Superseded to A553000070)

$11.99

$

Usually ships in 2-4 days

0

11

Echo 20035-51221

SPRING, CLUTCH
(Superseded to A566000060)

$1.99

$

In Stock, only 3 left!

0

12

Echo 20142-51210

BOLT, CLUTCH
(Superseded to A557000060)

$1.99

$

Usually ships in 2-4 days

0

13

Echo 20087-51231

WASHER - SPRING
(Superseded to V346000040)

$0.99

$

Usually ships in 2-4 days

0

14

Echo 22100-71430

WASHER
(Superseded to V304000150)

$0.99

$

Usually ships in 2-4 days

0

15

Echo 20016-12120

GASKET, CYLINDER
(Superseded to V100000490)

$1.99

$

In Stock, Qty 13

0

16

Echo 99909-229

PISTON KIT

$53.99

$

In Stock, only 3 left!

0
