T 210 (CMXGRAM1130043) (13BOA1ZS093) - Craftsman Lawn Tractor (2020) Hood & Grille Parts Diagram

Lawn Tractor

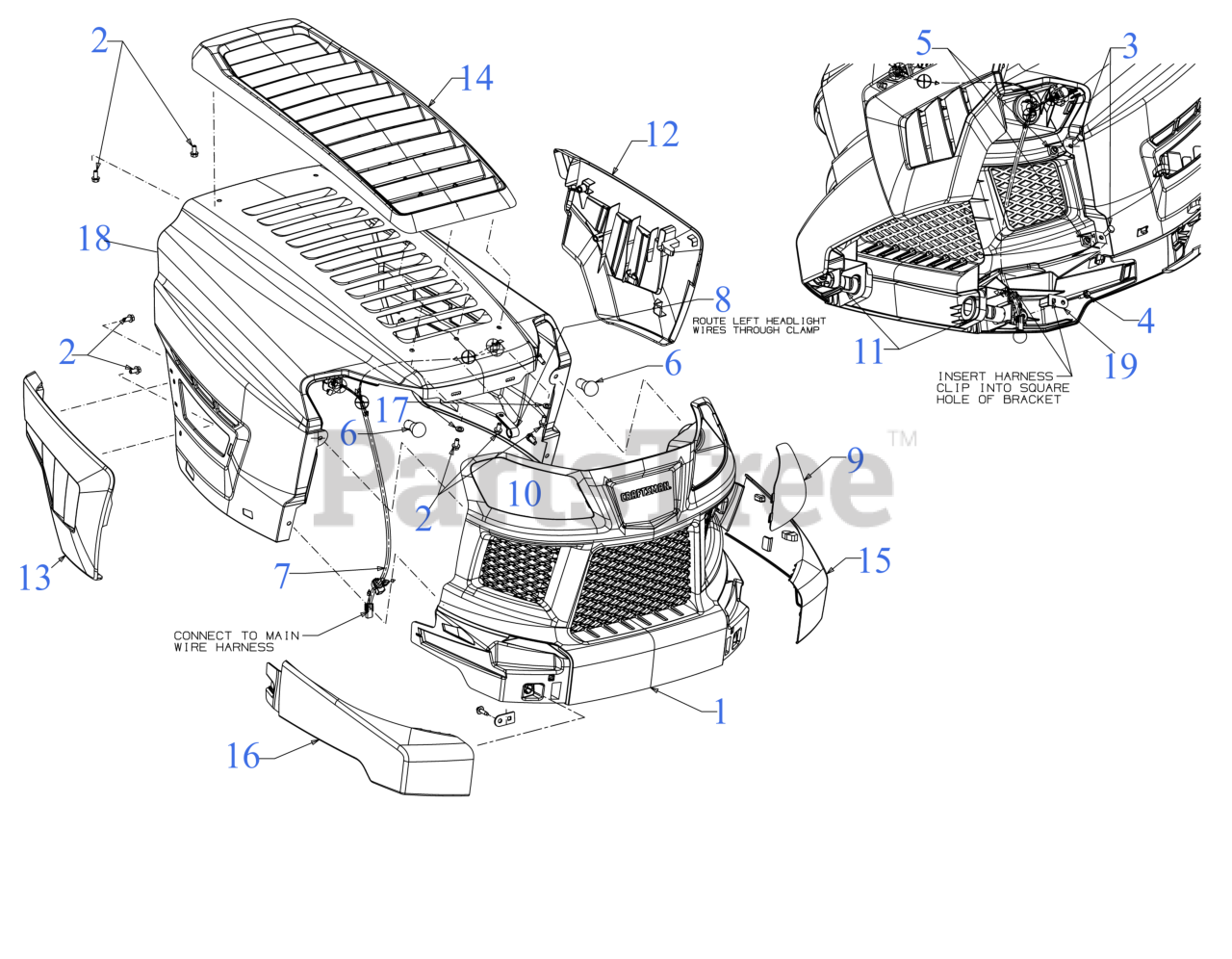

Hood & Grille Parts Diagram

  • Title
1

MTD 631P06419

GRILLE

$77.99

$

In Stock, only 1 left!

0

2

MTD 710-04187A

HEX SCREW 1/4-15 x .50

$6.99

$

In Stock, Qty 20+

0

3

MTD 710-0433

SCREW 1/4-20 x .62 SPEC GR5

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-06147

SCREW 1/4-10 x .750

$3.99

$

In Stock, Qty 20+

0

5

MTD 712-05118

SQUARE NUT 1/4-20

$5.49

$

In Stock, only 2 left!

0

6

MTD 925-0963

MINIATURE LAMP-12V #1156

$7.49

$

In Stock, Qty 5

0

7

MTD 725P13305

HEADLIGHT HARNESS

$26.99

$

Usually ships in 3-6 days

0

8

MTD 726-05072

HEADLIGHT HARNESS CLAMP

$3.49

$

Usually ships in 3-6 days

0

9

MTD 731-09756A

GRILLE LENS (LH)

$9.49

$

In Stock, Qty 20+

0

10

MTD 731-09757A

GRILLE LENS (RH)

$9.49

$

In Stock, Qty 20+

0

11

MTD 731-10070A

HOOD PIVOT PIN

$5.99

$

In Stock, Qty 20+

0

12

MTD 731-10976A

HOOD SIDE COVER (LH)

$24.99

$

Usually ships in 3-6 days

0

13

MTD 731-10977A

HOOD SIDE COVER (RH)

$24.99

$

Usually ships in 3-6 days

0

14

MTD 731-10980

HOOD SCOOP

$53.99

$

Usually ships in 3-6 days

0

14

MTD 710-06147

SCREW 1/4-10 x .750

Note: (Not Shown)

$3.99

$

In Stock, Qty 20+

0

15

MTD 731-17651

GRILLE PANEL (LH) (LIBERTY RED)

$29.99

$

Usually ships in 3-6 days

0

16

MTD 731-17652

GRILLE PANEL (RH) (LIBERTY RED)

$29.99

$

In Stock, only 1 left!

0

17

MTD 936-0142

FLAT WASHER
(Superseded to 736-0142)

$4.99

$

In Stock, Qty 20+

0

18

MTD 783-08862A

HOOD

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 783-08862A-0638

HOOD-CPX - MTD/TROY-BILT RED (0638)

$189.99

$

Usually ships in 3-6 days

0

MTD 783-08862A-0691

HOOD-CPX - BLACK JACK (0691)

$189.99

$

Usually ships in 3-6 days

0

MTD 783-08862A-4044

HOOD (CRAFTSMAN RED) - CRAFTSMAN RED (4044)

$189.99

$

Usually ships in 3-6 days

0

MTD 783-08862A-0662

HOOD-CPX - OYSTER GRAY (0662)

$

$

Not available

$153.99

$

Usually ships in 3-6 days

0

19

MTD 783-08881

HARNESS CLIP BRACKET

$4.49

$

In Stock, Qty 12

0
