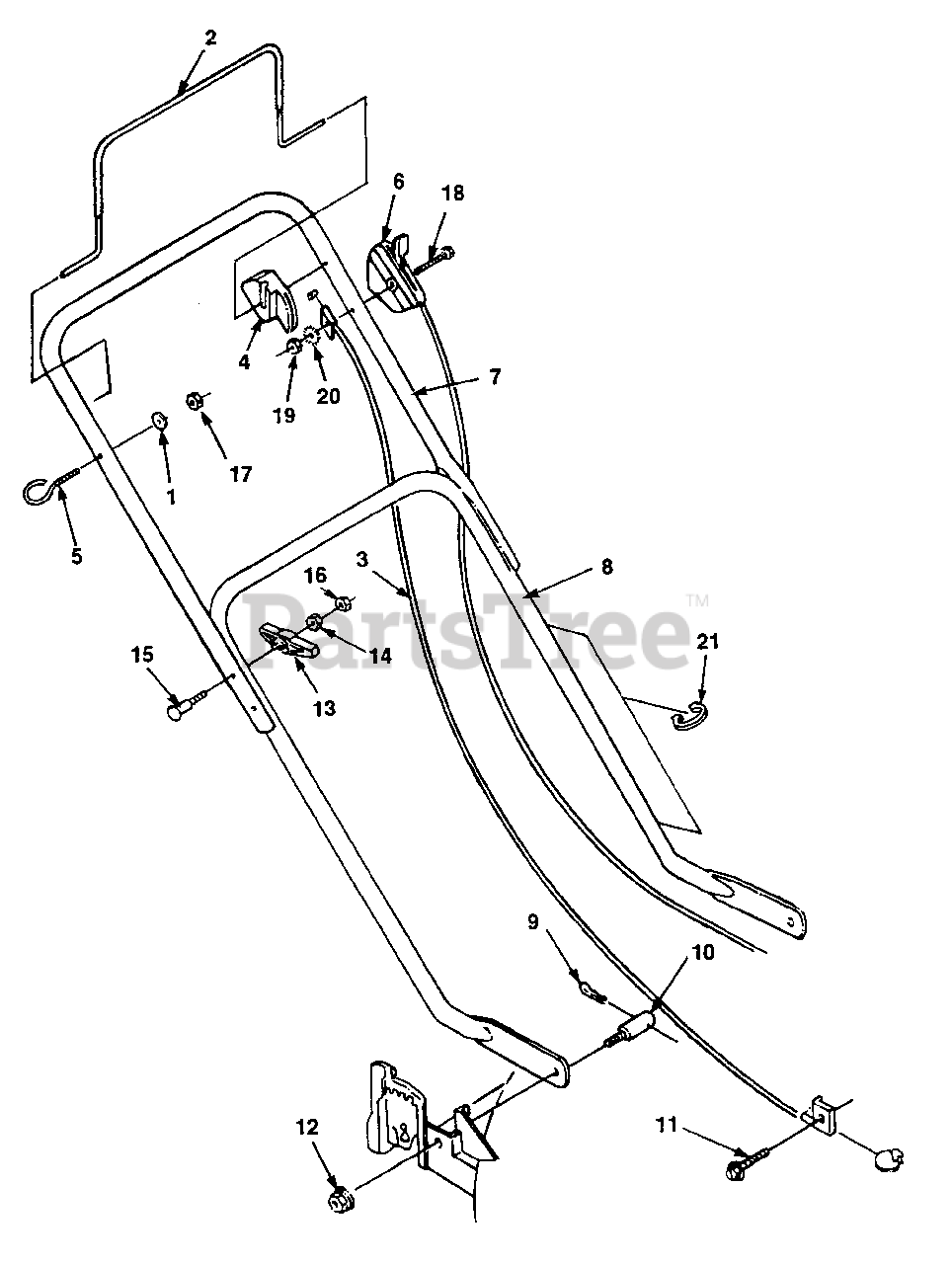

T 202 (UT-30088) - Homelite 20" Turbo Vac Walk-Behind Mower Handles & Controls Parts Diagram

20" Turbo Vac Walk-Behind Mower

Handles & Controls Parts Diagram

  • Title

1

Homelite JA343535

WASHER- Curve

$

$

Currently unavailable

2

Homelite JA991888

BAIL- Brake control

$

$

Not available

3

Homelite JA993439

CONTROL- Manual start

$

$

Currently unavailable

4

Homelite JA991907

ACTUATOR- L.H.

$

$

Currently unavailable

5

Homelite JA991952

EYEBOLT

$

$

Currently unavailable

6

Homelite JA993438

CONTROL- Throttle

$

$

Not available

7

Homelite JA991894

HANDLE- Upper

$

$

Not available

8

Homelite JA992400

HANDLE- Lower

$

$

Currently unavailable

9

Homelite JA460306

PIN- Hair

$

$

Not available

10

Homelite JA359178

STUD

$

$

Not available

11

Homelite JA403586

SCREW- Hex hd. (10-32 x 3/8")
(Superseded to UP07186)

$4.99

$

Usually ships in 3-7 days

0

12

Homelite JA445775

NUT- Flanged (5/16-18)
(Superseded to UP06674)

$

$

Not available

13

Homelite JA339550

KNOB- Handle

$

$

Not available

14

Homelite JA339550

NUT- Hex (5/16-18)

$

$

Not available

15

Homelite JA359102

BOLT

$

$

Not available

16

Homelite JA444718

NUT- Hex lock (5/16-18)

$

$

Not available

17

Homelite JA444708

NUT- Hex lock (1/4-20)

$

$

Currently unavailable

18

Homelite JA993197

SCREW- Hex cap (1/4-20 x 2")
(Superseded to UP06523)

$4.99

$

Usually ships in 3-7 days

0

19

Homelite JA443102

NUT- Hex (1/4-20)
(Superseded to JA993730)

$

$

Not available

20

Homelite JA447010

WASHER- External tooth

$

$

Currently unavailable

21

Homelite JA995410

CLAMP- Double
(Superseded to JA994274)

$

$

Not available
