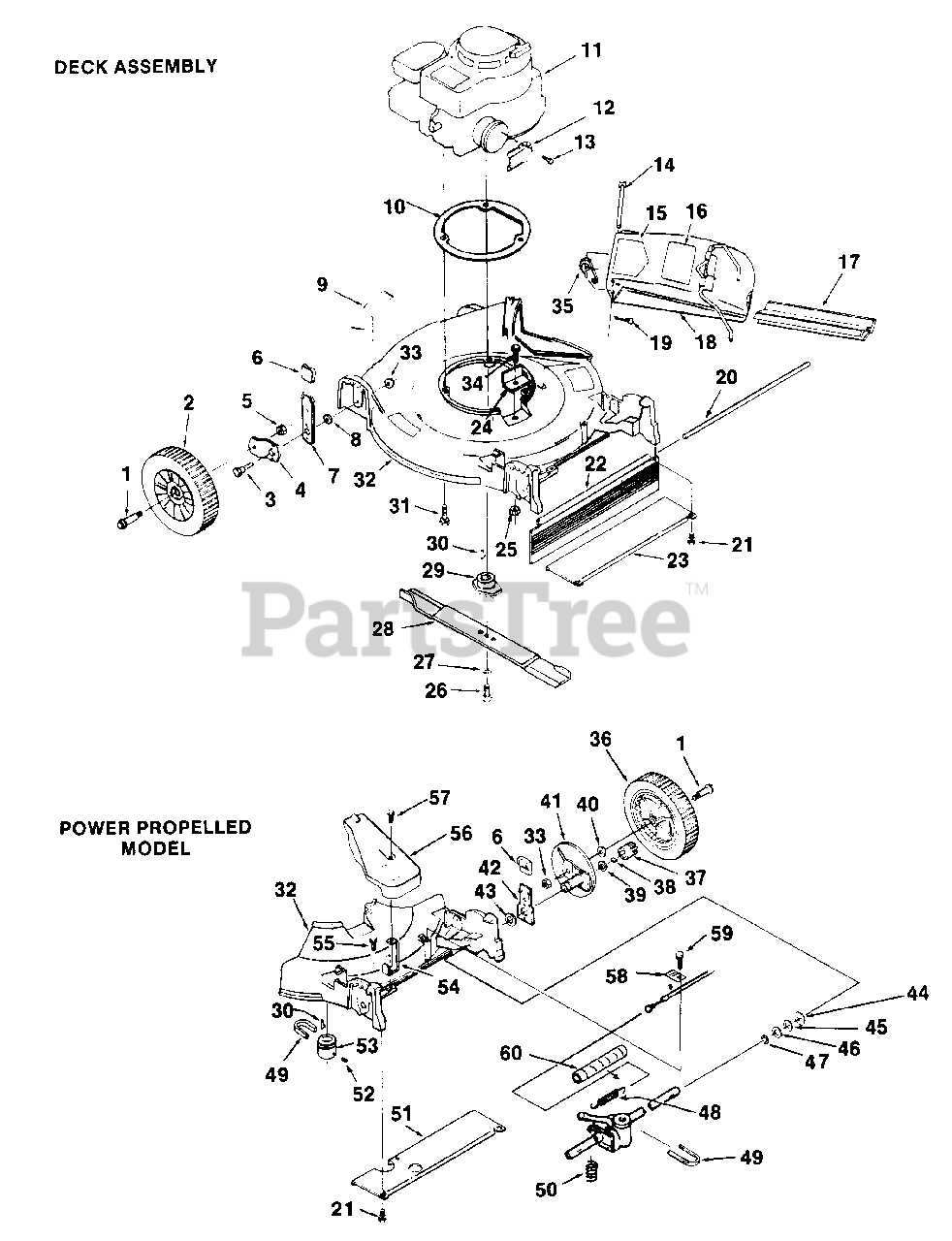

T 20 (UT-30067) - Homelite 20" Turbo Vac Walk-Behind Mower Mower Parts Diagram

20" Turbo Vac Walk-Behind Mower

Mower Parts Diagram

  • Title

1

Homelite JA359181

BOLT- Axle

$7.49

$

Usually ships in 3-7 days

0

2

Homelite JA991782

WHEEL & TIRE
(Superseded to UP06670)

$

$

Not available

3

Homelite JA359180

BOLT- Hex hd.

$

$

Not available

4

Homelite JA336314

ARM- Wheel adjusting
(Superseded to GP031455)

$

$

Currently unavailable

5

Homelite JA445776

NUT

$

$

Currently unavailable

6

Homelite JA336623

KNOB
(Superseded to UP06697)

$

$

Not available

7

Homelite JA990087

INDEXING SPRING & PIN ASSY.
(Superseded to GP586051)

$38.99

$

Usually ships in 3-7 days

0

8

Homelite JA358362

SPACER

$

$

Not available

9

Homelite JA994210

DECAL- Product identification

$

$

Currently unavailable

10

Homelite JA991878

RING- Engine
(Superseded to JA994311)

$

$

Not available

11

Homelite JA991911

ENGINE- 3.5 H.P.

$

$

Currently unavailable

12

Homelite JA359256

DEFLECTOR

$

$

Not available

13

Homelite JA400880

SCREW

$

$

Currently unavailable

14

Homelite JA375618

PIN- Hinge

$

$

Currently unavailable

15

Homelite JA339460

LABEL- Warning

$

$

Not available

16

Homelite JA339561

DECAL

$

$

Currently unavailable

17

Homelite JA339273

GUARD- Chute

$

$

Not available

18

Homelite JA518878

CHUTE & LATCH ASSY.

$

$

Not available

19

Homelite JA460014

PIN- Cotter

$

$

Not available

20

Homelite JA375391

ROD

$

$

Currently unavailable

21

Homelite JA408878

SCREW

$

$

Not available

22

Homelite JA339238

FLAP- Drag
(Superseded to UP06701)

$

$

Not available

23

Homelite JA339239

COVER- Rear
(Superseded to JA994309)

$

$

Currently unavailable

24

Homelite JA991286

COVER- Belt opening

$

$

Currently unavailable

25

Homelite JA444708

NUT- Hex

$

$

Currently unavailable

26

Homelite JA401196

SCREW

$

$

Currently unavailable

27

Homelite JA446142

WASHER

$

$

Not available

28

Homelite JA392422

BLADE
(Superseded to JA993820)

$23.99

$

Usually ships in 3-7 days

0

29

Homelite JA991821

ADAPTOR

$30.99

$

Usually ships in 3-7 days

0

30

Homelite JA463029

KEY

$

$

Not available

31

Homelite JA408876

SCREW- Hex hd.

$

$

Not available

32

Homelite JA990171

DECK

$

$

Currently unavailable

33

Homelite JA445775

NUT- Flange
(Superseded to UP06674)

$

$

Not available

34

Homelite JA400104

SCREW- Hex hd.
(Superseded to UP03379)

$

$

Not available

35

Homelite JA375276

SPRING

$

$

Currently unavailable

36

Homelite JA991783

WHEEL & TIRE ASSY.
(Superseded to JA993975)

$

$

Not available

37

Homelite JA204244

PINION- R.H.

Note: Not used on this product

$

$

Not available

Homelite JA204245

PINION- L.H.

Note: Not used on this product

$

$

Currently unavailable

38

Homelite JA313659

PAWL

Note: Not used on this product

$

$

Not available

39

Homelite JA351077

WASHER

Note: Not used on this product

$

$

Not available

40

Homelite JA359500

WASHER

Note: Not used on this product

$

$

Not available

41

Homelite JA990074

DRIVE WHEEL SUPPORT ASSY.
(Superseded to GP095304)

Note: Not used on this product

$

$

Not available

42

Homelite JA162044

INDEXING SPRING & PIN ASSY.

Note: Not used on this product

$

$

Currently unavailable

43

Homelite JA359141

SPACER

Note: Not used on this product

$

$

Not available

44

Homelite JA454037

WASHER

Note: Not used on this product

$

$

Not available

45

Homelite JA353406

WASHER

Note: Not used on this product

$

$

Not available

46

Homelite JA328147

WASHER- (Shim)

Note: Not used on this product

$

$

Not available

47

Homelite JA458451

RING- Eaton

Note: Not used on this product

$2.99

$

Usually ships in 3-7 days

0

48

Homelite JA375748

SPRING- Extension

Note: Not used on this product

$

$

Not available

49

Homelite JA390165

BELT- Drive
(Superseded to UP07148)

Note: Not used on this product

$

$

Not available

50

Homelite JA359266

SPRING- Compression

Note: Not used on this product

$

$

Not available

51

Homelite JA339240

COVER- Rear
(Superseded to JA994309)

Note: Not used on this product

$

$

Currently unavailable

52

Homelite JA422505

SCREW

Note: Not used on this product

$

$

Not available

53

Homelite JA991819

PULLEY- Drive

Note: Not used on this product

$

$

Currently unavailable

54

Homelite JA375400

BRACKET- Gear box cover

Note: Not used on this product

$

$

Currently unavailable

55

Homelite JA408865

SCREW

Note: Not used on this product

$

$

Currently unavailable

56

Homelite JA392514

COVER- Drive

Note: Not used on this product

$

$

Currently unavailable

57

Homelite JA408879

SCREW- 1/4-20 x 3/4

Note: Not used on this product

$

$

Currently unavailable

58

Homelite JA991065

CLAMP- Cable

Note: Not used on this product

$

$

Not available

59

Homelite JA409908

SCREW- 1/4-20

Note: Not used on this product

$3.99

$

Usually ships in 3-7 days

0

60

Homelite JA990641

COVER- Spring

$

$

Currently unavailable
