T 20 - Shindaiwa String Trimmer Gear Case Parts Diagram

String Trimmer

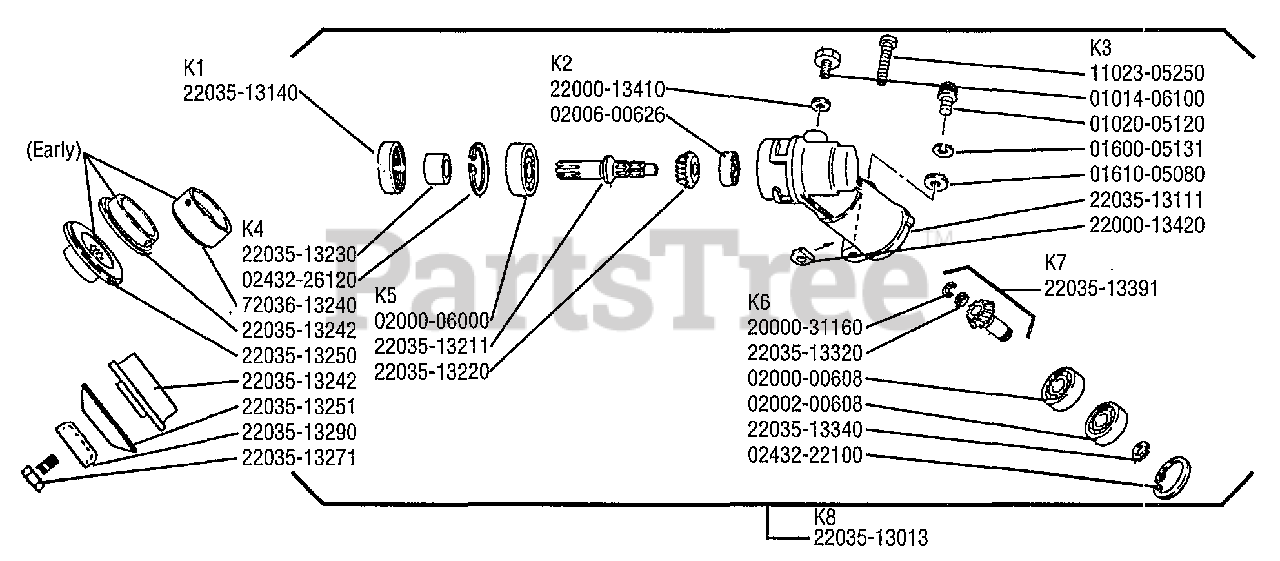

Gear Case Parts Diagram

  • Title

K1-22035-13140

Echo 22035-13140

SEAL, OIL
(Superseded to V509000000)

$3.49

$

In Stock, Qty 8

0

K4-22035-13230

Echo 22035-13230

COLLAR
(Superseded to V356000480)

$2.99

$

In Stock, only 2 left!

0

K4-02432-26120

Echo 02432-26120

SNAP RING
(Superseded to 9242426000)

$0.99

$

In Stock, Qty 6

0

K4-72036-13240

Echo 72036-13240

ADAPTER
(Superseded to Discontinued)

$

$

Not available

K4-22035-13242

Echo 22035-13240

HOLDER A, USE 22035-13242
(Superseded to 22035-13242)

$20.99

$

In Stock, only 2 left!

0

K4

------------------

Note: NO LONGER AVAILABLE

$

$

Not available

K4-22035-13242

Echo 22035-13242

HOLDER A
(Superseded to C535000510)

$20.99

$

In Stock, only 2 left!

0

K4-22035-13251

Echo 22035-13251

HOLDER B, USE 22410-13251
(Superseded to 22410-13251)

$11.99

$

In Stock, only 2 left!

0

K4-22035-13290

Echo 22035-13290

BOLT, GUARD
(Superseded to C535000530)

$3.49

$

In Stock, Qty 7

0

K4-22035-13271

Echo 22035-13271

BOLT
(Superseded to V216000040)

$3.99

$

In Stock, only 2 left!

0

K5-02000-06000

Echo 02000-06000

BEARING, BALL
(Superseded to 90080006000)

$10.99

$

Usually ships in 2-4 days

0

K5-22035-13211

Echo 22035-13211

GEAR SHAFT, USE 22410-13210
(Superseded to 22410-13210)

$16.99

$

In Stock, only 1 left!

0

K5-22035-13220

Echo 22035-13220

BEVEL GEAR
(Superseded to V651000690)

$15.99

$

Usually ships in 2-4 days

0

K2-22000-13410

Echo 22000-13410

GASKET
(Superseded to V304000180)

$0.99

$

In Stock, only 4 left!

0

K2-02006-00626

Echo 02006-00626

BEARING
(Superseded to 90081200626)

$13.99

$

Usually ships in 2-4 days

0

K6-20000-31160

Echo 20000-31160

SNAP RING
(Superseded to V582000110)

$0.99

$

Usually ships in 2-4 days

0

K6-22035-13320

Echo 22035-13320

RING, STOP

$0.99

$

Usually ships in 2-4 days

0

K6-02000-00608

Echo 02000-00608

BEARING, BALL
(Superseded to 90080000608)

$5.99

$

Usually ships in 2-4 days

0

K6-02002-00608

Echo 02002-00608

BEARING, BALL
(Superseded to 90080400608)

$12.99

$

In Stock, only 1 left!

0

K6-22035-13340

Echo 22035-13340

SNAP RING

$0.99

$

In Stock, Qty 20+

0

K6-02432-22100

Echo 02432-22100

SNAP RING
(Superseded to 9242422000)

$0.99

$

In Stock, Qty 5

0

K8-22035-13013

Echo 22035-13013

GEARCASE ASSY
(Superseded to 22035-13014)

$130.99

$

In Stock, only 1 left!

0

K3-11023-05250

Echo 11023-05250

BOLT SW, REPLACES 11024-05250
(Superseded to V203000560)

$1.99

$

In Stock, only 2 left!

0

K3-01014-06100

Echo 01014-06100

BOLT
(Superseded to 9103006010)

$0.99

$

In Stock, only 3 left!

0

K3-01020-05120

Echo 90010505012

SCREW - 5X12 HSH

$1.49

$

In Stock, Qty 20+

0

K3-01600-05131

Echo 01600-05131

WASHER, SPRING
(Superseded to 90060500005)

$0.99

$

In Stock, Qty 10

0

K3-01610-05080

Echo 01610-05080

WASHER
(Superseded to 90060000005)

$0.99

$

In Stock, Qty 20+

0

K3-22035-13111

Echo 22035-13111

GEARCASE
(Superseded to 22035-13112)

$22.99

$

Usually ships in 2-4 days

0

K3-22000-13420

Echo 22000-13420

SHIM
(Superseded to V340000300)

$0.99

$

In Stock, Qty 8

0

K7-22035-13391

Echo 22035-13391

PINION
(Superseded to V651000700)

$19.99

$

Usually ships in 2-4 days

0
