T 195 S - Shindaiwa String Trimmer Outer Tube, Throttle Parts Diagram

String Trimmer

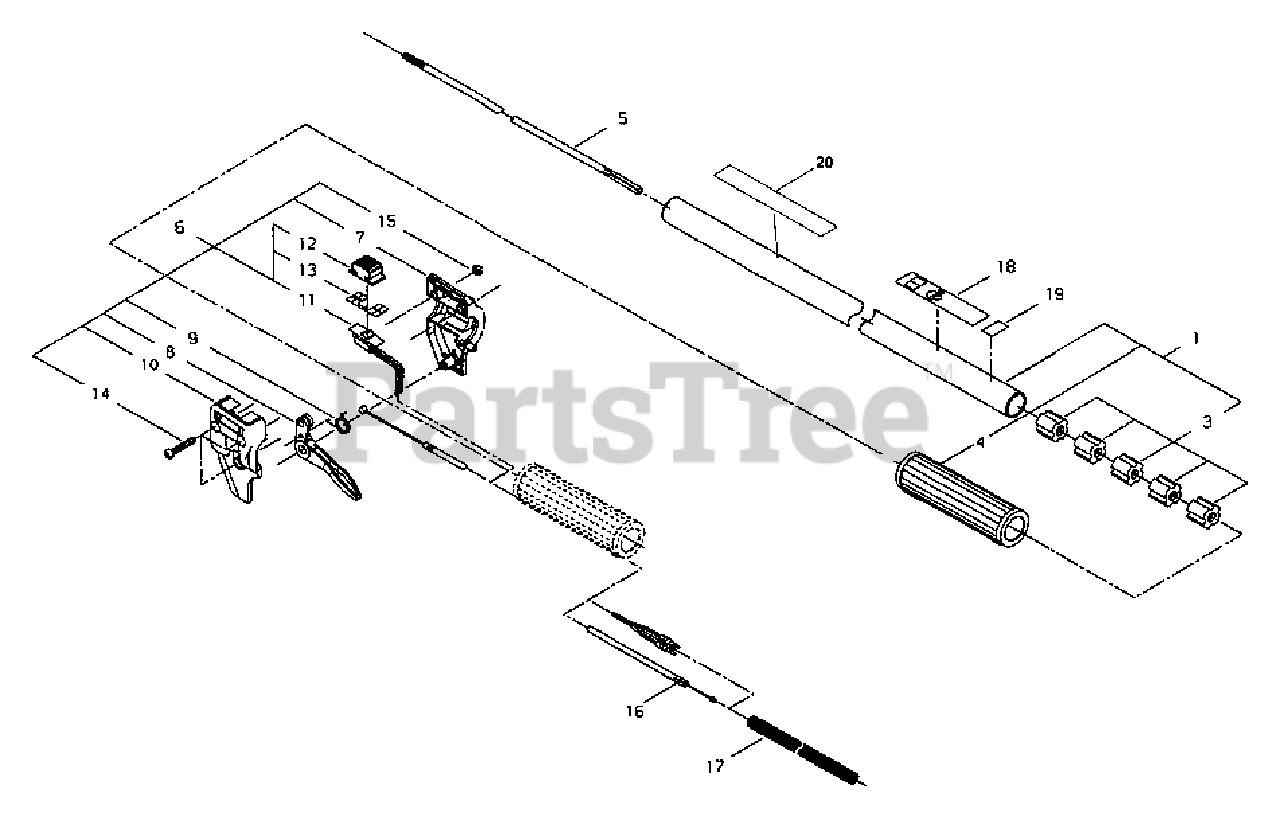

Outer Tube, Throttle Parts Diagram

  • Title

1

Echo 80030

MAIN PIPE ASSY

$72.99

$

Usually ships in 2-4 days

0

3

Echo 22410-12120

BUSHING
(Superseded to C501000030)

$4.49

$

In Stock, Qty 6

0

4

Echo 22036-12612

GRIP
(Superseded to C412000300)

$9.49

$

In Stock, only 1 left!

0

5

Echo 63054-62210

DRIVESHAFT - FLEXIBLE
(Superseded to C504000510)

$19.99

$

Usually ships in 2-4 days

0

6

Echo 63054-62160

THROTTLE LEVER ASSY

$29.99

$

Usually ships in 2-4 days

0

7

Echo 22410-14312

BRACKET - RIGHT
(Superseded to C401000080)

$5.99

$

In Stock, Qty 8

0

8

Echo 22410-14321

TRIGGER, THROTTLE
(Superseded to C450000460)

$7.49

$

In Stock, Qty 20+

0

9

Echo 22410-14331

SPRING, TRIGGER
(Superseded to V452000440)

$1.99

$

In Stock, Qty 12

0

10

Echo 22410-14341

BRACKET - LEFT
(Superseded to C401000090)

$5.99

$

In Stock, Qty 9

0

11

Echo 63054-62310

SWITCH
(Superseded to Discontinued)

$

$

Not available

12

Echo 22420-12930

KNOB
(Superseded to A444000090)

$2.49

$

In Stock, Qty 5

0

13

Echo 22420-12940

PLATE, SWITCH
(Superseded to X510000500)

$2.49

$

Usually ships in 2-4 days

0

14

Echo 11206-05300

SCREW - 5X30
(Superseded to 9157405030)

$0.99

$

In Stock, Qty 5

0

15

Echo 01501-05031

NUT - 5
(Superseded to 90050200005)

$0.99

$

In Stock, Qty 13

0

16

Echo 37015-98010

CABLE, THROTTLE
(Superseded to V043000690)

$5.99

$

In Stock, Qty 7

0

17

Echo 63901-62440

TUBE
(Superseded to V475006830)

$0.99

$

In Stock, only 3 left!

0

18

Echo 19422-00028

LABEL - CAUTION
(Superseded to X505005990)

$4.49

$

In Stock, only 2 left!

0

19

Echo 19401-00269

LABEL - INSTRUCTION
(Superseded to X505002850)

$0.99

$

In Stock, only 3 left!

0

20

Echo 80867

LABEL - OUTER TUBE
(Superseded to Discontinued)

$

$

Not available
