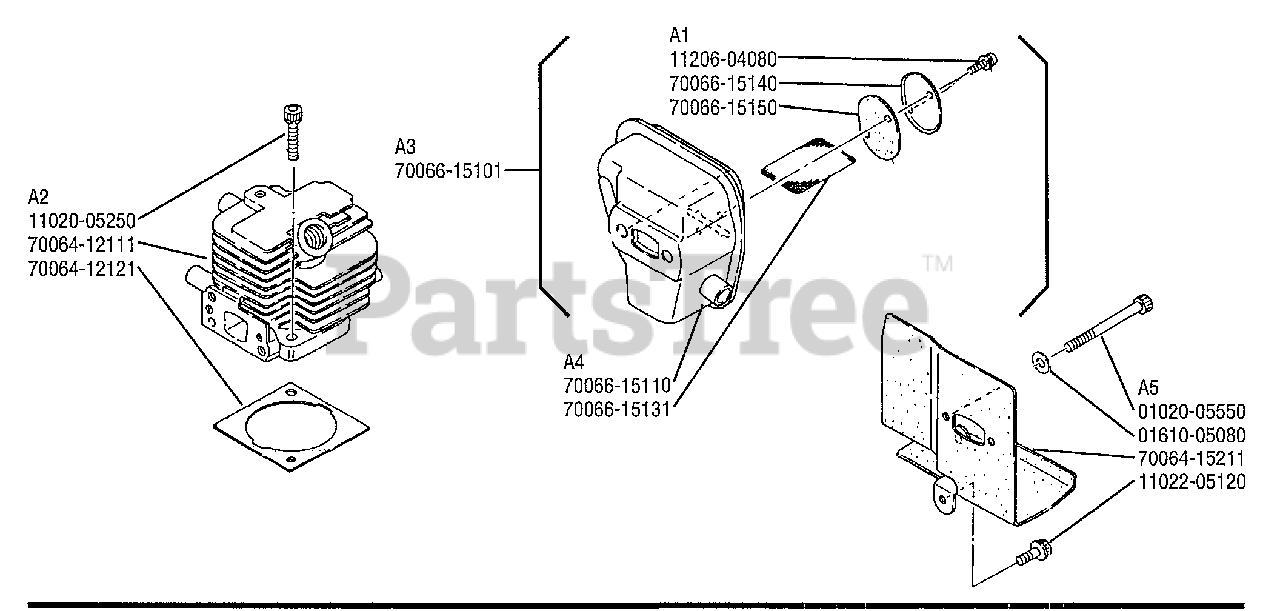

T 18 - Shindaiwa String Trimmer Cylinder, Muffler Assembly Parts Diagram

String Trimmer

Cylinder, Muffler Assembly Parts Diagram

  • Title

A2-11020-05250

Echo 11020-05250

BOLT SW
(Superseded to V203001330)

$1.99

$

Usually ships in 2-4 days

0

A2-70064-12111

Echo 70064-12111

CYLINDER
(Superseded to Discontinued)

$

$

Not available

A2-70064-12121

Echo 70064-12121

GASKET, CYLINDER
(Superseded to Discontinued)

$

$

Not available

A3-70066-15101

Echo 70066-15101

MUFFLER ASSY
(Superseded to Discontinued)

$

$

Not available

A4-70066-15110

Echo 70066-15110

$

$

Currently unavailable

A4-70066-15131

Echo 70066-15131

SCREEN

$1.49

$

Usually ships in 2-4 days

0

A5-01020-05550

Echo 01020-05550

BOLT
(Superseded to 90010505055)

$1.49

$

In Stock, Qty 15

0

A5-01610-05080

Echo 01610-05080

WASHER
(Superseded to 90060000005)

$0.99

$

In Stock, Qty 20+

0

A5-70064-15211

Echo 70064-15211

GASKET, MUFFLER

$8.99

$

In Stock, only 1 left!

0

A5-11022-05120

Echo 11022-05120

BOLT SPW
(Superseded to V203000700)

$0.99

$

In Stock, Qty 20+

0

A1-11206-04080

Echo 11206-04080

SCREW PM
(Superseded to 9157404008)

$

$

Not available

A1-70066-15140

Echo 70066-15140

CAP

$0.99

$

Usually ships in 2-4 days

0

A1-70066-15150

Echo 70066-15150

GASKET
(Superseded to Discontinued)

$

$

Not available
