T-16 H (1690049) - Homelite Garden Tractor, 16hp Lift Group (3859I02) Parts Diagram

Garden Tractor, 16hp

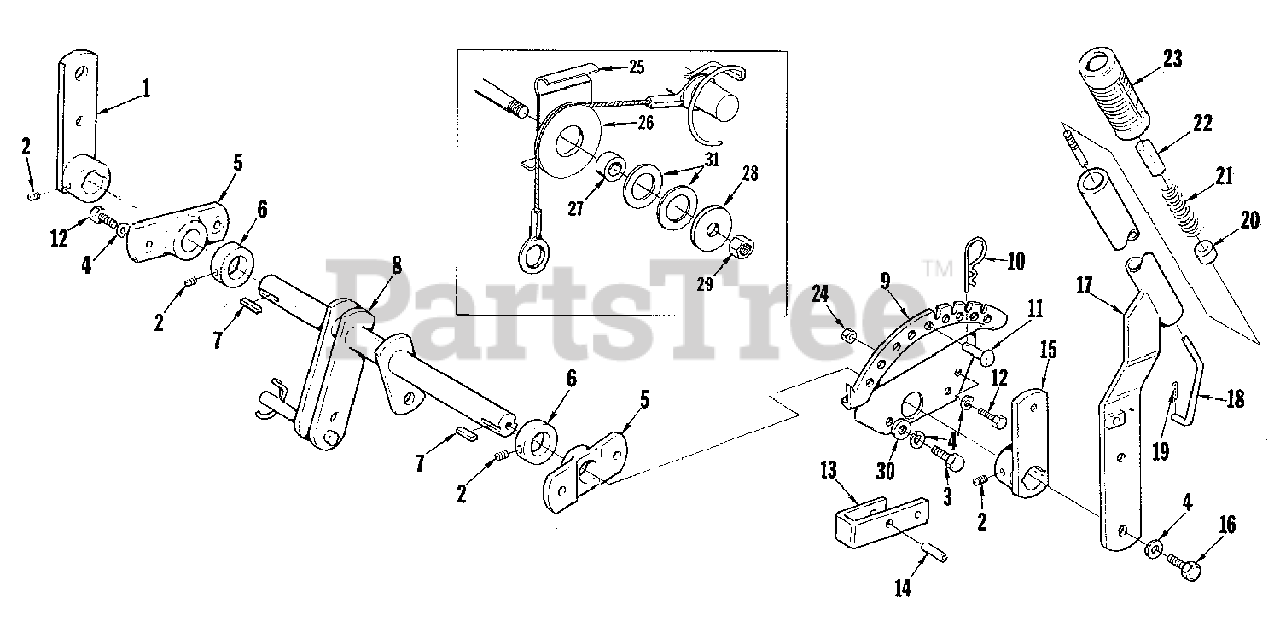

Lift Group (3859I02) Parts Diagram

  • Title

1

Simplicity LM-01576-25

LEVER ASSEMBLY, Front Lift

$

$

Not available

2

Simplicity LM-09117-12

SETSCREW, Hex Socket, 5/16-18 x 5/16

$

$

Not available

3

Simplicity LM-09077-31

SCREW, Hex Head Cap

$

$

Not available

4

Simplicity LM-09169-65

WASHER, Lock

$

$

Not available

5

Simplicity LM-01576-20

BEARING, Lift Lever

$

$

Not available

6

Simplicity LM-01576-24

COLLAR, Set

$

$

Not available

7

Simplicity LM-09213-46

KEY, Plain Parallel

$

$

Not available

8

Simplicity LM-16064-31

SHAFT ASSEMBLY, Lift

$

$

Not available

9

Simplicity LM-16076-48

QUADRANT, Lift Lever

$

$

Not available

10

Simplicity LM-81610-45

CLIP, Spring

$

$

Not available

11

Simplicity LM-16087-02

PIN, Lock

$

$

Not available

12

Simplicity LM-09081-27

SCREW, Hex Head Cap

$

$

Not available

13

Simplicity LM-01730-39

LATCH, Lift Lever

$

$

Not available

14

Simplicity LM-09181-13

PIN, Spring

$

$

Not available

15

Simplicity LM-01715-93

LIFT LEVER ASSEMBLY, Inner Section

$

$

Not available

16

Simplicity LM-09212-10

SCREW, Hex Head Cap, 3/8-16 x 1

$

$

Not available

17

Simplicity LM-16065-51

LEVER ASSEMBLY, Lift

$

$

Not available

18

Simplicity LM-16065-53

ROD, Latch Lift Lever

$

$

Not available

19

Simplicity LM-09184-47

PIN, Cotter

$

$

Not available

20

Simplicity LM-01542-26

SPACER, Handle, Lift Lever

$

$

Not available

21

Simplicity LM-01520-06

SPRING, Stand

$

$

Not available

22

Simplicity LM-01542-27

BUTTON, Thumb

$

$

Not available

23

Simplicity LM-01562-09

GRIP, Lift Lever

$

$

Not available

24

Simplicity LM-09169-50

NUT, Hex Fin, 3/8-16

$

$

Not available

25

Simplicity LM-16064-30

CLIP, Cable Retaining

$

$

Not available

26

Simplicity LM-01727-25

PULLEY

$

$

Not available

27

Simplicity LM-16064-69

SPACER, Pulley

$

$

Not available

28

Simplicity LM-09226-11

WASHER, Flat, 13/32

$

$

Not available

29

Simplicity LM-09234-28

NUT, Hex Lock, 3/8-16

$

$

Not available

30

Simplicity LM-09173-78

WASHER, Flat, 3/8

$

$

Not available

31

Simplicity LM-01084-72

WASHER

$

$

Not available
