T-16 H (1690049) - Homelite Garden Tractor, 16hp Clutch & Brake Group (3859I12) Parts Diagram

Garden Tractor, 16hp

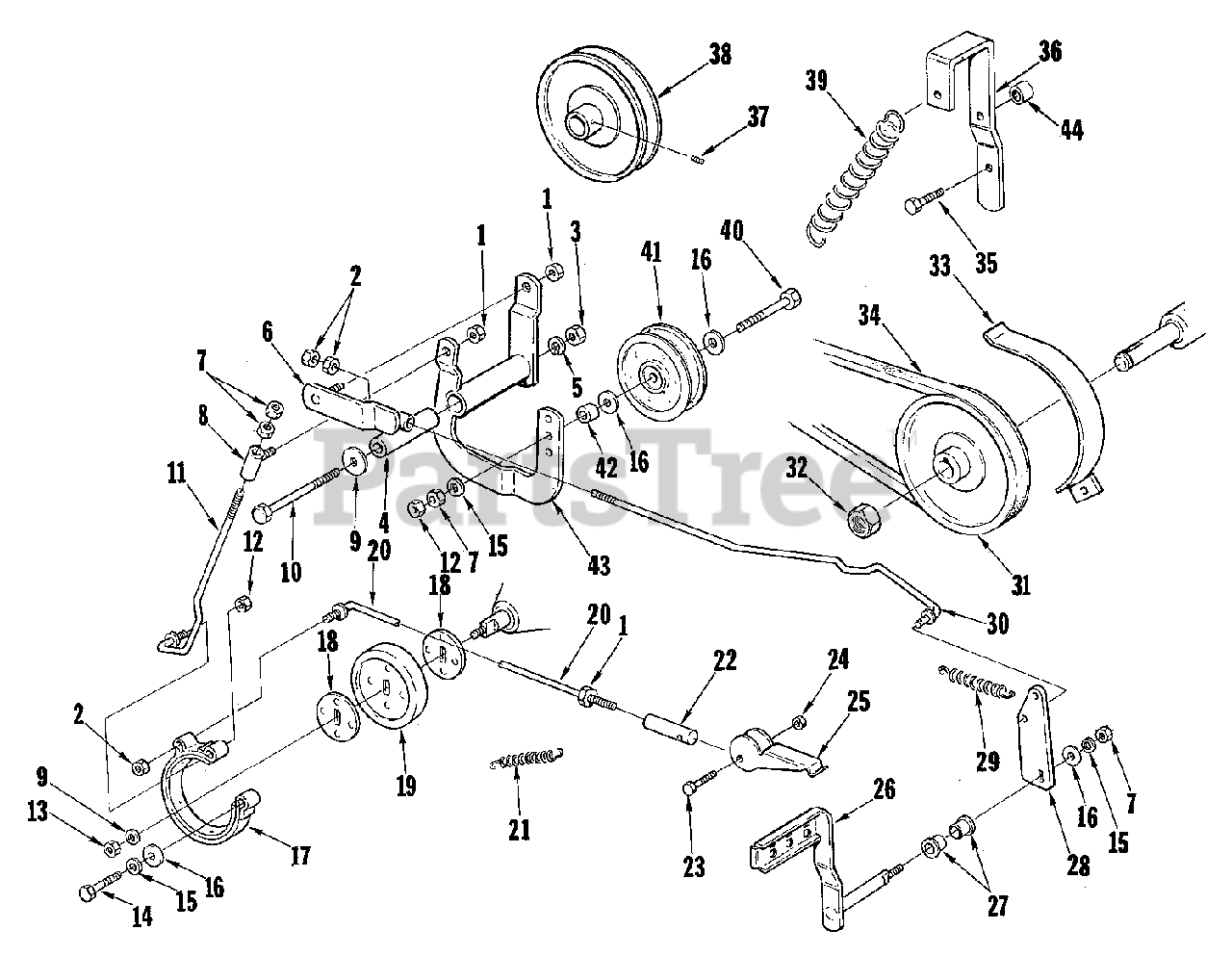

Clutch & Brake Group (3859I12) Parts Diagram

  • Title

1

Simplicity LM-09233-62

NUT, Hex Lock, 5/16-18

$

$

Not available

2

Simplicity LM-09173-72

NUT, Hex Fin, 5/16-18

$

$

Not available

3

Simplicity LM-09182-13

NUT, Hex Fin, 7/16-14

$

$

Not available

4

Simplicity LM-01661-30

SPACER

$

$

Not available

5

Simplicity LM-09181-99

WASHER, Lock, 7/16

$

$

Not available

6

Simplicity LM-01661-57

GUIDE ASSEMBLY, Rod

$

$

Not available

7

Simplicity LM-09169-50

NUT, Hex Fin, 3/8-16

$

$

Not available

8

Simplicity LM-16035-62

GUIDE ASSEMBLY, Rod

$

$

Not available

9

Simplicity LM-09184-30

WASHER, Flat, 7/16

$

$

Not available

10

Simplicity LM-09193-67

SCREW, Hex Head Cap, 7/16-14 x 3-3/4

$

$

Not available

11

Simplicity LM-01724-60

ROD ASSEMBLY, Brake

$

$

Not available

12

Simplicity LM-09234-28

NUT, Hex Lock Fin, 3/8-16

$

$

Not available

13

Simplicity LM-09240-58

NUT, Hex Lock 7/16-14

$

$

Not available

14

Simplicity LM-09193-61

SCREW, Hex Head Cap, 3/8-16 x 1-3/4

$

$

Not available

15

Simplicity LM-09169-65

WASHER, Lock, 3/8

$

$

Not available

16

Simplicity LM-09173-78

WASHER, Flat, 3/8

$

$

Not available

17

Simplicity LM-01722-34

BAND ASSEMBLY, Brake

$

$

Not available

18

Simplicity LM-01581-96

WASHER, Special

$

$

Not available

19

Simplicity LM-01661-76

DRUM, Brake

$

$

Not available

20

Simplicity LM-16068-17

ROD ASSEMBLY, Parking Brake

$

$

Not available

21

Simplicity LM-01210-37

SPRING

$

$

Not available

22

Simplicity LM-01719-94

ROD, End

$

$

Not available

23

Simplicity LM-09287-45

SCREW, Hex Head Cap, 1/4-20 x 1-1/4

$

$

Not available

24

Simplicity LM-09233-58

NUT, Hex Lock, 1/4-20

$

$

Not available

25

Simplicity LM-01721-08

LEVER, Parking Brake

$

$

Not available

26

Simplicity LM-01711-78

PEDAL ASSEMBLY, Foot

$

$

Not available

27

Simplicity LM-16104-56

BUSHING, Flanged

$

$

Not available

28

Simplicity LM-16064-77

ARM, Foot Pedal

$

$

Not available

29

Simplicity LM-01591-06

SPRING, Brake Pedal

$

$

Not available

30

Simplicity LM-16064-78

ROD, Clutch & Brake

$

$

Not available

31

Simplicity LM-16062-06

PULLEY, Driver

$

$

Not available

32

Simplicity LM-16070-21

NUT, Jam Lock, 3/4-16

$

$

Not available

33

Simplicity LM-16074-57

RETAINER ASSEMBLY, Belt

$

$

Not available

34

Simplicity LM-16029-69

BELT, Hydrostatic Drive

$

$

Not available

35

Simplicity LM-09286-96

SCREW, Tapping (Taptite), 3/8-16 x 1

$

$

Not available

36

Simplicity LM-16082-50

BRACKET, Spring

$

$

Not available

37

Simplicity LM-09117-12

SETSCREW, 5/16-18 x 5/16

$

$

Not available

38

Simplicity LM-01661-73

PULLEY, Driven

$

$

Not available

39

Simplicity LM-16083-95

SPRING, Idler Pulley

$

$

Not available

40

Simplicity LM-09193-62

SCREW, Hex Head Cap, 3/8-16 x 2-1/4

$

$

Not available

41

Simplicity LM-16035-15

PULLEY, Idler

$

$

Not available

42

Simplicity LM-01570-81

SPACER

$

$

Not available

43

Simplicity LM-01661-26

LEVER ASSEMBLY, Idler

$

$

Not available

44

Simplicity LM-16104-04

SPACER

$

$

Not available
