T-16 H (1600285) - Homelite Garden Tractor, 16hp Clutch, Brake & Dual Range Group (3859I13) Parts Diagram

Garden Tractor, 16hp

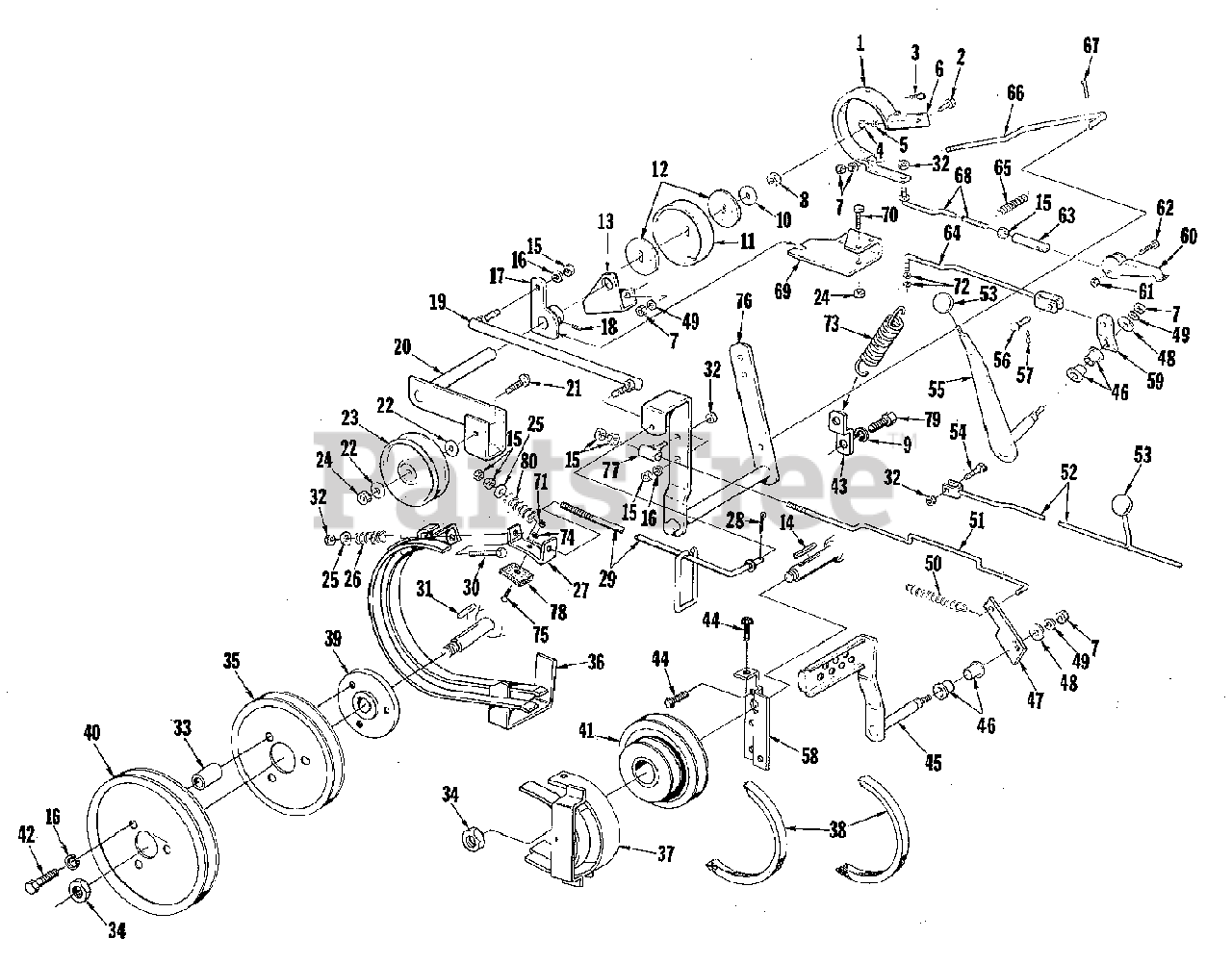

Clutch, Brake & Dual Range Group (3859I13) Parts Diagram

  • Title

1

Simplicity LM-01714-97

BAND ASSEMBLY, Brake

$

$

Not available

2

Simplicity LM-09174-00

SCREW, Hex Head Cap, 3/8-16 x 1-1/4

$

$

Not available

3

Simplicity LM-09160-19

SCREW, Hex Head Cap, 1/4-20 x 3/4

$

$

Not available

4

Simplicity LM-09166-22

NUT, Hex Fin, 1/4-20

$

$

Not available

5

Simplicity LM-09169-64

WASHER, Lock, 1/4

$

$

Not available

6

Simplicity LM-01641-13

BRACKET, Brake Hand

$

$

Not available

7

Simplicity LM-09169-50

NUT, Hex Fin, 3/8-16

$

$

Not available

8

Simplicity LM-09240-58

NUT, Lock, 7/16-14

$

$

Not available

9

Simplicity LM-09181-99

WASHER, Lock

$

$

Not available

10

Simplicity LM-09184-30

WASHER, Flat, 5/16

$

$

Not available

11

Simplicity LM-01572-82

DRUM, Brake

$

$

Not available

12

Simplicity LM-01581-96

WASHER, Special

$

$

Not available

13

Simplicity LM-16070-27

BEARING, Idler Pivot

$

$

Not available

14

Simplicity LM-09051-21

KEY, Woodruff, #5

$

$

Not available

15

Simplicity LM-09173-72

NUT, Hex Fin, 5/16-18

$

$

Not available

16

Simplicity LM-09173-56

WASHER, Lock, 5/16

$

$

Not available

17

Simplicity LM-16070-26

LEVER ASSEMBLY, Cam Shaft

$

$

Not available

18

Simplicity LM-09057-59

SETSCREW, Hex Socket, 1/4-20 x 1/4

$

$

Not available

19

Simplicity LM-16065-68

JOINT, Ball, Double End

$

$

Not available

20

Simplicity LM-16070-25

ARM ASSEMBLY, Idler

$

$

Not available

21

Simplicity LM-09232-32

CARRIAGE BOLT, 3/8-16 x 1

$

$

Not available

22

Simplicity LM-09246-07

WASHER, Flat

$

$

Not available

23

Simplicity LM-16065-54

PULLEY

$

$

Not available

24

Simplicity LM-09234-28

NUT, Hex Lock, 3/8-16

$

$

Not available

25

Simplicity LM-09176-42

WASHER, Flat

$

$

Not available

26

Simplicity LM-16107-03

SPRING

$

$

Not available

27

Simplicity LM-16105-90

BRAKE, Sheave

$

$

Not available

28

Simplicity LM-09193-13

PIN, Cotter

$

$

Not available

29

Simplicity LM-16086-21

ROD, Pulley Brake

$

$

Not available

30

Simplicity LM-09193-55

SCREW, Hex Head Cap, 5/16-18 x 2-1/2

$

$

Not available

31

Simplicity LM-09051-23

KEY, Hi-Pro

$

$

Not available

32

Simplicity LM-09233-62

NUT, Hex Lock, 5/16-18

$

$

Not available

33

Simplicity LM-16083-10

SPACER

$

$

Not available

34

Simplicity LM-16070-21

NUT, Lock Jam, 3/4-16

$

$

Not available

35

Simplicity LM-16081-22

SHEAVE

$

$

Not available

36

Simplicity LM-16081-27

RETAINER ASSEMBLY, Rear

$

$

Not available

37

Simplicity LM-16083-08

RETAINER ASSEMBLY, Belt

$

$

Not available

38

Simplicity LM-16079-67

BELT, "V", Dual Range Drive

$

$

Not available

39

Simplicity LM-16083-09

HUB, Pulley

$

$

Not available

40

Simplicity LM-16081-23

SHEAVE

$

$

Not available

41

Simplicity LM-16083-22

PULLEY, Front

$

$

Not available

42

Simplicity LM-09193-54

SCREW, Hex 5/16-18 x 2

$

$

Not available

43

Simplicity LM-01748-93

CLIP, Spring

$

$

Not available

44

Simplicity LM-09248-56

SCREW, Hex Washer, 5/16-18 x 1/2

$

$

Not available

45

Simplicity LM-01711-78

PEDAL ASSEMBLY, Foot

$

$

Not available

46

Simplicity LM-16104-56

BUSHING, Flanged

$

$

Not available

47

Simplicity LM-16064-77

ARM, Foot Pedal

$

$

Not available

48

Simplicity LM-09173-78

WASHER, 3/8

$

$

Not available

49

Simplicity LM-09169-65

WASHER, Lock, 3/8

$

$

Not available

50

Simplicity LM-01591-06

SPRING, Brake Pedal

$

$

Not available

51

Simplicity LM-16064-78

ROD, Clutch & Brake

$

$

Not available

52

Simplicity LM-16064-49

ROD, Shift Assembly

$

$

Not available

53

Simplicity LM-16010-42

BALL, Shift Lever

$

$

Not available

54

Simplicity LM-09261-50

SCREW, Hex Head Cap

$

$

Not available

55

Simplicity LM-16066-12

LEVER ASSEMBLY

$

$

Not available

56

Simplicity LM-16087-02

PIN

$

$

Not available

57

Simplicity LM-09184-47

PIN, Cotter

$

$

Not available

58

Simplicity LM-16083-04

SUPPORT, Belt Retainer

$

$

Not available

59

Simplicity LM-16065-48

LINK, Speed Control

$

$

Not available

60

Simplicity LM-01721-08

LEVER, Parking Brake

$

$

Not available

61

Simplicity LM-09233-58

NUT, Hex Lock, 1/4-20

$

$

Not available

62

Simplicity LM-09287-45

SCREW, Hex Head Cap, 1/4-20 x 1-1/4

$

$

Not available

63

Simplicity LM-01719-94

END, Rod

$

$

Not available

64

Simplicity LM-16066-15

ROD ASSEMBLY, Control

$

$

Not available

65

Simplicity LM-01210-37

SPRING

$

$

Not available

66

Simplicity LM-01641-89

ROD, Brake

$

$

Not available

67

Simplicity LM-09184-48

PIN, Cotter

$

$

Not available

68

Simplicity LM-16069-03

ROD ASSEMBLY, Parking Brake

$

$

Not available

69

Simplicity LM-16065-67

FORK, Shift

$

$

Not available

70

Simplicity LM-09174-02

SCREW, Hex Head Cap, 3/8-16 x 2

$

$

Not available

71

Simplicity LM-09166-21

NUT, Hex, 10-24

$

$

Not available

72

Simplicity LM-16027-35

RING, "E", External

$

$

Not available

73

Simplicity LM-01748-96

SPRING, Tension

$

$

Not available

74

Simplicity LM-09173-65

WASHER, Lock, #10

$

$

Not available

75

Simplicity LM-09262-67

SCREW, Flat, 10-24 x 5/8

$

$

Not available

76

Simplicity LM-16083-17

LEVER ASSEMBLY, Pivot

$

$

Not available

77

Simplicity LM-16043-19

GUIDE ASSEMBLY, Rod

$

$

Not available

78

Simplicity LM-16079-43

STRAP, Pulley Brake

$

$

Not available

79

Simplicity LM-09206-77

SCREW, Hex Head Cap, 7/16-14 x 1-1/4

$

$

Not available

80

Simplicity LM-01570-41

SPRING

$

$

Not available
