T-15 (1600115) - Homelite Garden Tractor, 15hp Draw Bar Assembly Group (3858I15) Parts Diagram

Garden Tractor, 15hp

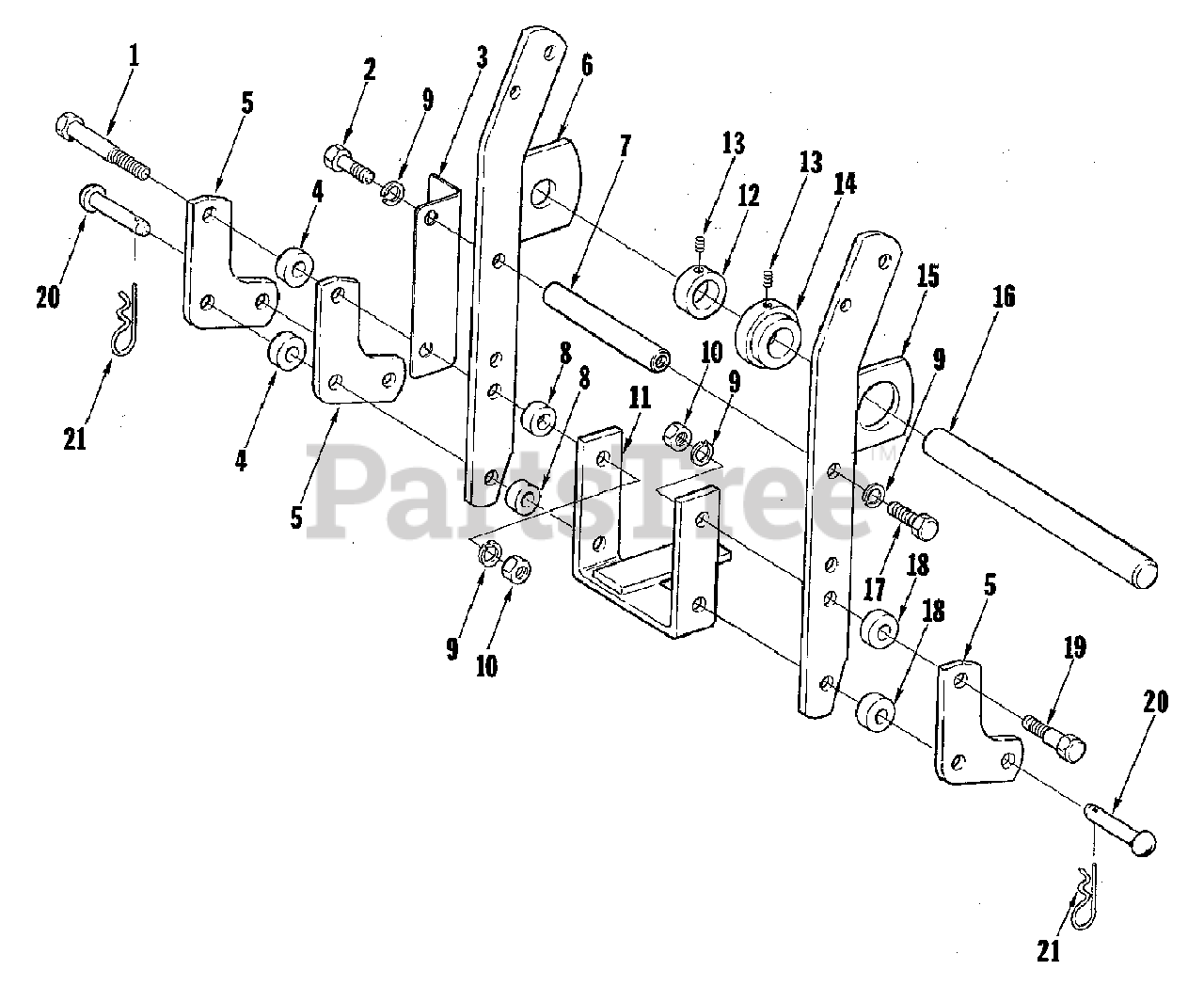

Draw Bar Assembly Group (3858I15) Parts Diagram

  • Title
1

Simplicity LM-09193-65

SCREW, Hex Head Cap, 7/16-14 x 3

$

$

Not available

2

Simplicity LM-09166-09

SCREW, Hex Head Cap, 7/16-14 x 1-3/4

$

$

Not available

3

Simplicity LM-01661-98

PLATE, Decal

$

$

Not available

$

$

Not available

5

$

$

Not available

6

Simplicity LM-01662-06

BAR ASSEMBLY, Upright

$

$

Not available

$

$

Not available

$

$

Not available

9

Simplicity LM-09181-99

WASHER, Lock, 7/16

$

$

Not available

10

Simplicity LM-09182-13

NUT, Hex Fin, 7/16-14

$

$

Not available

11

Simplicity LM-16066-38

DRAWBAR ASSEMBLY

$

$

Not available

12

$

$

Not available

13

Simplicity LM-09117-12

SCREW, Set, 5/16-18 x 5/16

$

$

Not available

14

$

$

Not available

15

Simplicity LM-01660-72

BAR ASSEMBLY, Upright

$

$

Not available

16

$

$

Not available

17

Simplicity LM-09164-32

SCREW, Hex Head Cap, 5/16-14 x 1-1/4

$

$

Not available

$

$

Not available

19

Simplicity LM-09193-64

SCREW, Hex Head Cap, 7/16-14 x 2-1/4

$

$

Not available

20

Simplicity LM-09550-37

PIN, Round Head

$

$

Not available

21

Simplicity LM-09181-96

CLIP, Spring

$

$

Not available
