T 1444 E - Electrolux/AYP Lawn Tractor (1994) CHASSIS Parts Diagram

Lawn Tractor

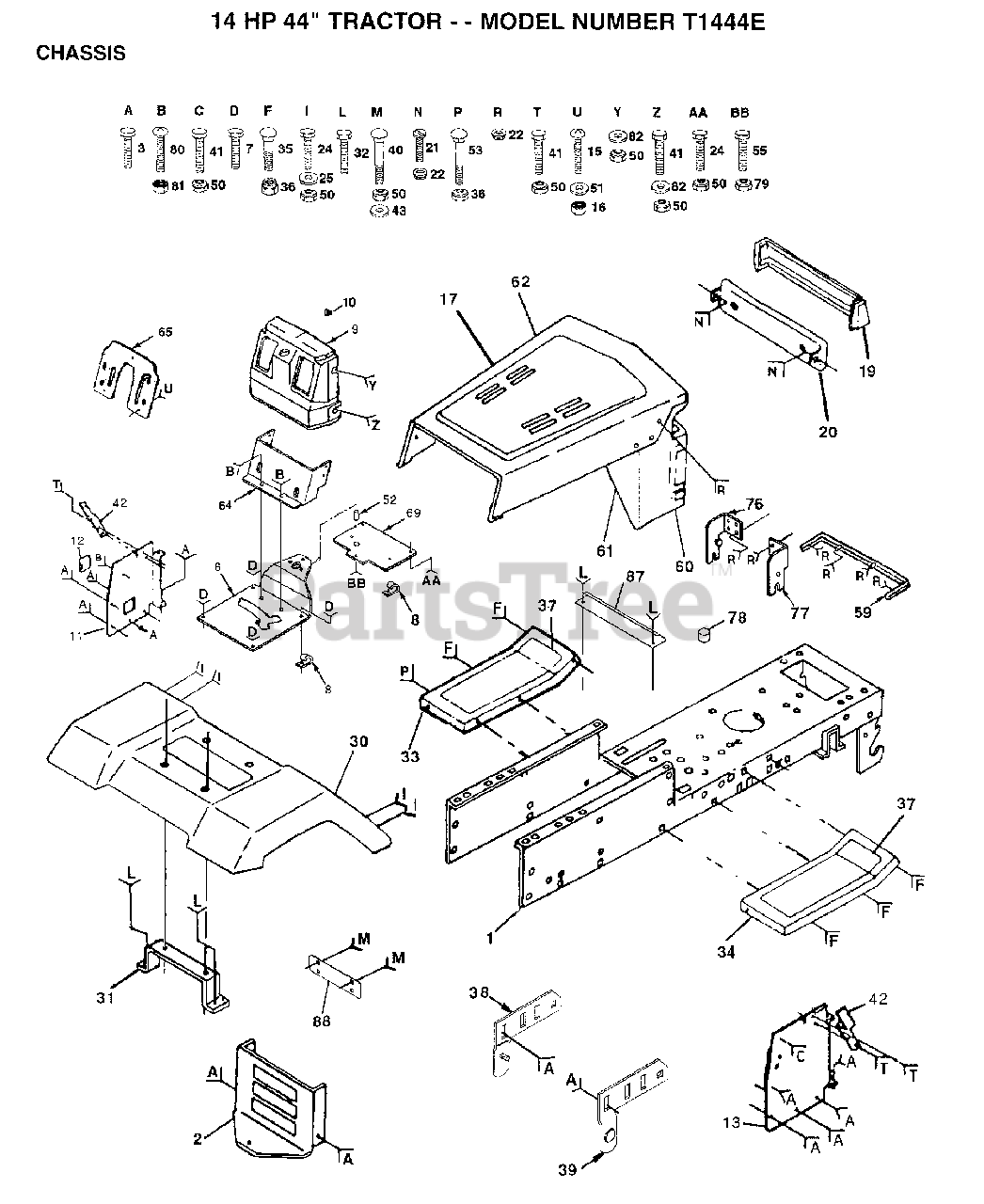

CHASSIS Parts Diagram

  • Title
1

Electrolux/AYP 140341

SUB= 145501

$

$

Not available

2

Electrolux/AYP 140356

SUB= 145009

$

$

Not available

3

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, only 4 left!

0

6

Electrolux/AYP 127543

SUB= 127543X011

$

$

Not available

7

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, only 4 left!

0

8

Electrolux/AYP 2751R

CLIP T
(Superseded to 532002751)

$

$

Not available

9

Electrolux/AYP 136696

SUB= 145203

$

$

Not available

10

Electrolux/AYP 8022J

PLUG-DASH T
(Superseded to 532125085)

$

$

Not available

11

Electrolux/AYP 136967

PANEL.DASH.LH
(Superseded to 532136967)

$

$

Not available

12

Electrolux/AYP 121794X

COVER ACCESS
(Superseded to 532121794)

$

$

Not available

13

Electrolux/AYP 136970

PANEL.DASH.RH
(Superseded to 532136970)

$

$

Not available

15

Electrolux/AYP 74180412

SCREW
(Superseded to 874180412)

$4.99

$

In Stock, only 4 left!

0

16

Murray 73510400

NUT
(Superseded to 873640400)

$

$

Not available

$

$

Not available

$

$

Not available

20

Electrolux/AYP 132257

SUB= 918132257
(Superseded to 132257X417)

$

$

Not available

21

Electrolux/AYP 124201X

SCREW SPECIAL
(Superseded to 583668901)

$2.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 108067X

PAL NUT LT
(Superseded to 532108067)

$

$

Not available

24

Electrolux/AYP 74780616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 19131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, only 2 left!

0

30

$113.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 139976

BRACKET SUPT FEND
(Superseded to 532139976)

$17.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, only 4 left!

0

33

Electrolux/AYP 105465X419

SUB= 145244X419

$

$

Not available

34

$5.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 72110606

BOLT
(Superseded to 872110606)

$4.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 73800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 133671

FOOTREST PAD
(Superseded to 532133671)

$10.99

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 139886

BRACKET ASM LH
(Superseded to 532139886)

$8.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 139887

BRACKET ASM RH
(Superseded to 532139887)

$

$

Not available

40

Electrolux/AYP 72110608

BOLT D
(Superseded to 872110608)

$6.49

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 74760616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 139915

BRACKET.ASM.SUPT.

$

$

Not available

43

Electrolux/AYP 19171416

WASHER
(Superseded to 819171416)

$4.99

$

In Stock, Qty 8

0

50

Electrolux/AYP 73800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 19091216

WASHER PM
(Superseded to 819091216)

$4.99

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 121236X

SPACER
(Superseded to 532121236)

$

$

Not available

53

Murray 72140608

SUB= 72110608

$

$

Not available

55

Electrolux/AYP 74760532

BOLT
(Superseded to 874760532)

$2.99

$

Usually ships in 3-10 days

0

59

Electrolux/AYP 110350X419

"STRAP,GRILL"
(Superseded to 583659201)

$6.99

$

Usually ships in 3-10 days

0

60

Electrolux/AYP 140671

GRILLE ASM WELD

$

$

Not available

61

$

$

Not available

62

$

$

Not available

64

Electrolux/AYP 105518X

DASH-LOWER YT
(Superseded to 583646101)

$14.99

$

Usually ships in 3-10 days

0

65

Electrolux/AYP 140943X011

PLATE DASH SILKSC

$

$

Not available

69

Electrolux/AYP 140181

PLATE.SUPT.BATTER
(Superseded to 532140181)

$

$

Not available

76

Electrolux/AYP 137467

BRACKET.RH
(Superseded to 582962401)

$23.99

$

Usually ships in 3-10 days

0

77

Electrolux/AYP 137466

BRACKET.LH
(Superseded to 149036)

$

$

Not available

78

$

$

Not available

79

Electrolux/AYP 73800500

NUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

80

Electrolux/AYP 74180512

SCREW
(Superseded to 874180512)

$

$

Not available

$2.99

$

Usually ships in 3-10 days

0

82

Murray 19131614

WASHER
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

87

Electrolux/AYP 139977

SPACER FENDER LT

$

$

Not available

88

Electrolux/AYP 139978

PLATE EXTEN FEND

$

$

Not available
