T 1444 D - Electrolux/AYP Lawn Tractor (1993) LIFT ADJUSTMENT Parts Diagram

Lawn Tractor

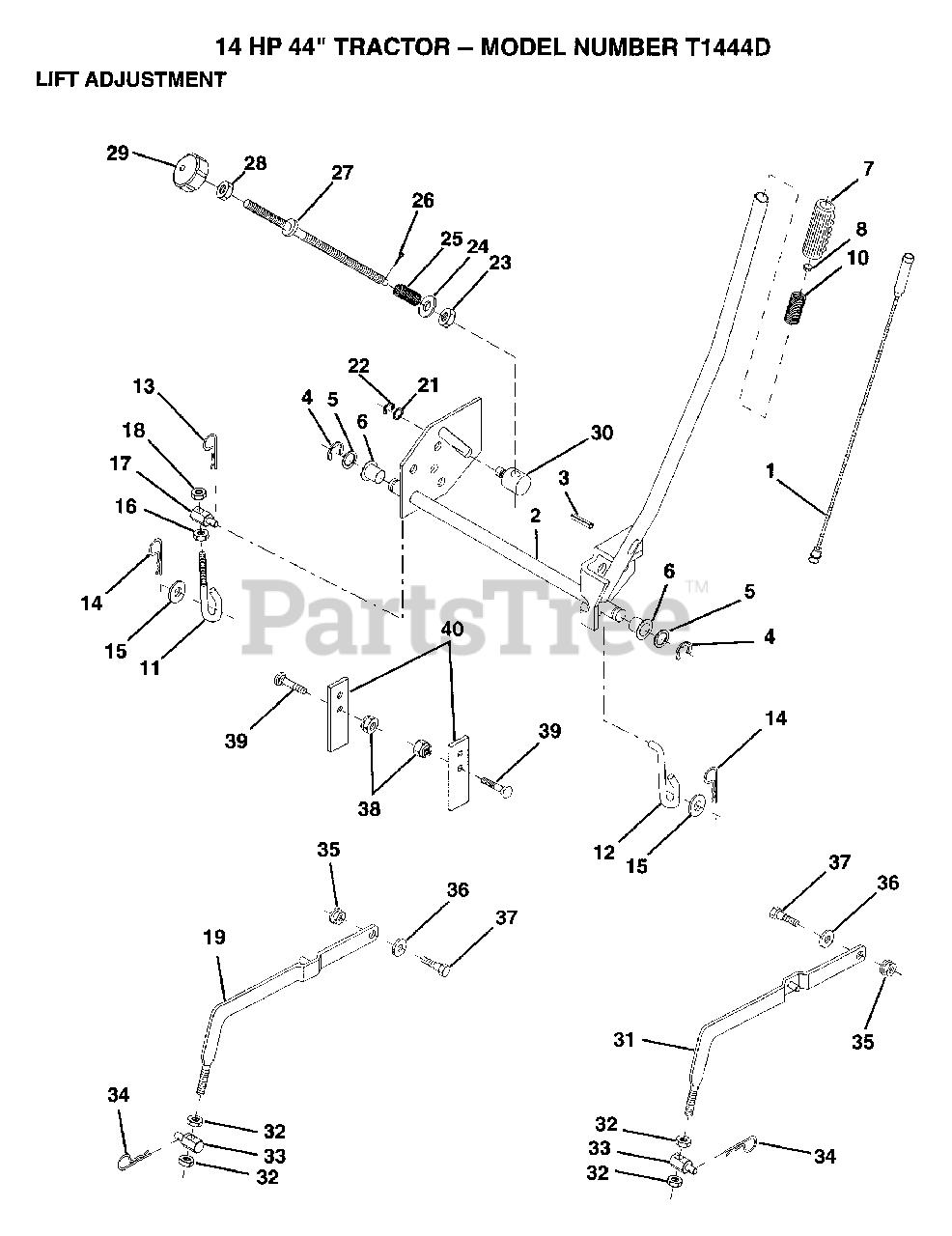

LIFT ADJUSTMENT Parts Diagram

  • Title
1

Electrolux/AYP 136973

WIRE ASM
(Superseded to 532136973)

$

$

Not available

2

$

$

Not available

3

Electrolux/AYP 105767X

PIN-GROOVE LT
(Superseded to 532105767)

$6.49

$

In Stock, only 3 left!

0

$

$

Not available

5

Electrolux/AYP 19211621

WASHER
(Superseded to 819211621)

$6.49

$

In Stock, only 2 left!

0

6

Electrolux/AYP 120183X

NYLON BEARING
(Superseded to 532120183)

$6.99

$

In Stock, only 3 left!

0

7

Electrolux/AYP 109413X

GRIP
(Superseded to 532109413)

$7.99

$

In Stock, only 1 left!

0

8

Electrolux/AYP 124385X

SUB= 125925X

$

$

Not available

10

Electrolux/AYP 122512X

SUB= 532122512

$

$

Not available

11

Electrolux/AYP 110448X

PIVOT PIN T
(Superseded to 532110448)

$7.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 110029X

LIFT LINK LT
(Superseded to 532110029)

$

$

Not available

13

Murray 4939M

SUB= 85902

$

$

Not available

14

Electrolux/AYP 4921H

SPRING.RETAINER
(Superseded to 532004921)

$6.49

$

In Stock, only 2 left!

0

$2.49

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 73360700

NUT
(Superseded to 873610700)

$7.49

$

In Stock, only 4 left!

0

17

Electrolux/AYP 110447X

SUB= 132793
(Superseded to 532110447)

$

$

Not available

18

$2.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 121599X

LH SUSP ARM ASM
(Superseded to 532121599)

$

$

Not available

21

Electrolux/AYP 19151216

WASHER
(Superseded to 819151216)

$

$

Not available

22

Electrolux/AYP 12000037

KLIP RING
(Superseded to 812000037)

$6.49

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 110807X

NUT T
(Superseded to 532110807)

$

$

Not available

24

Electrolux/AYP 19131016

WASHER
(Superseded to 819131016)

$6.49

$

In Stock, Qty 5

0

25

Electrolux/AYP 2876H

SPRING T
(Superseded to 532002876)

$7.49

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 76020308

SUB= 3145
(Superseded to 876020308)

$

$

Not available

27

Electrolux/AYP 126971

SUB= 532126971

$

$

Not available

28

Electrolux/AYP 73350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

29

Electrolux/AYP 138057

KNOB INF 3/8-16
(Superseded to 532138057)

$8.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 110810X

TRUNION LT
(Superseded to 532110810)

$

$

Not available

31

Electrolux/AYP 121598X

RH SUSP ARM ASM
(Superseded to 532121598)

$

$

Not available

32

Electrolux/AYP 73220800

NUT
(Superseded to 596433401)

$3.99

$

In Stock, Qty 16

0

33

$

$

Not available

34

Electrolux/AYP 9135R

SPRING H
(Superseded to 532009135)

$4.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 73980600

NUT SPECIAL T
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 110739X

WASHER T
(Superseded to 532110739)

$4.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 105848X

"BOLT, SHOULDER LT"
(Superseded to 532105848)

$

$

Not available

38

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

39

Murray 72140608

SUB= 72110608

$

$

Not available

40

Electrolux/AYP 121252X

UPSTOP
(Superseded to 532121252)

$4.99

$

Usually ships in 3-10 days

0
