T 1444 B - Electrolux/AYP Lawn Tractor (1991) STEERING AND FRONT AXLE Parts Diagram

Lawn Tractor

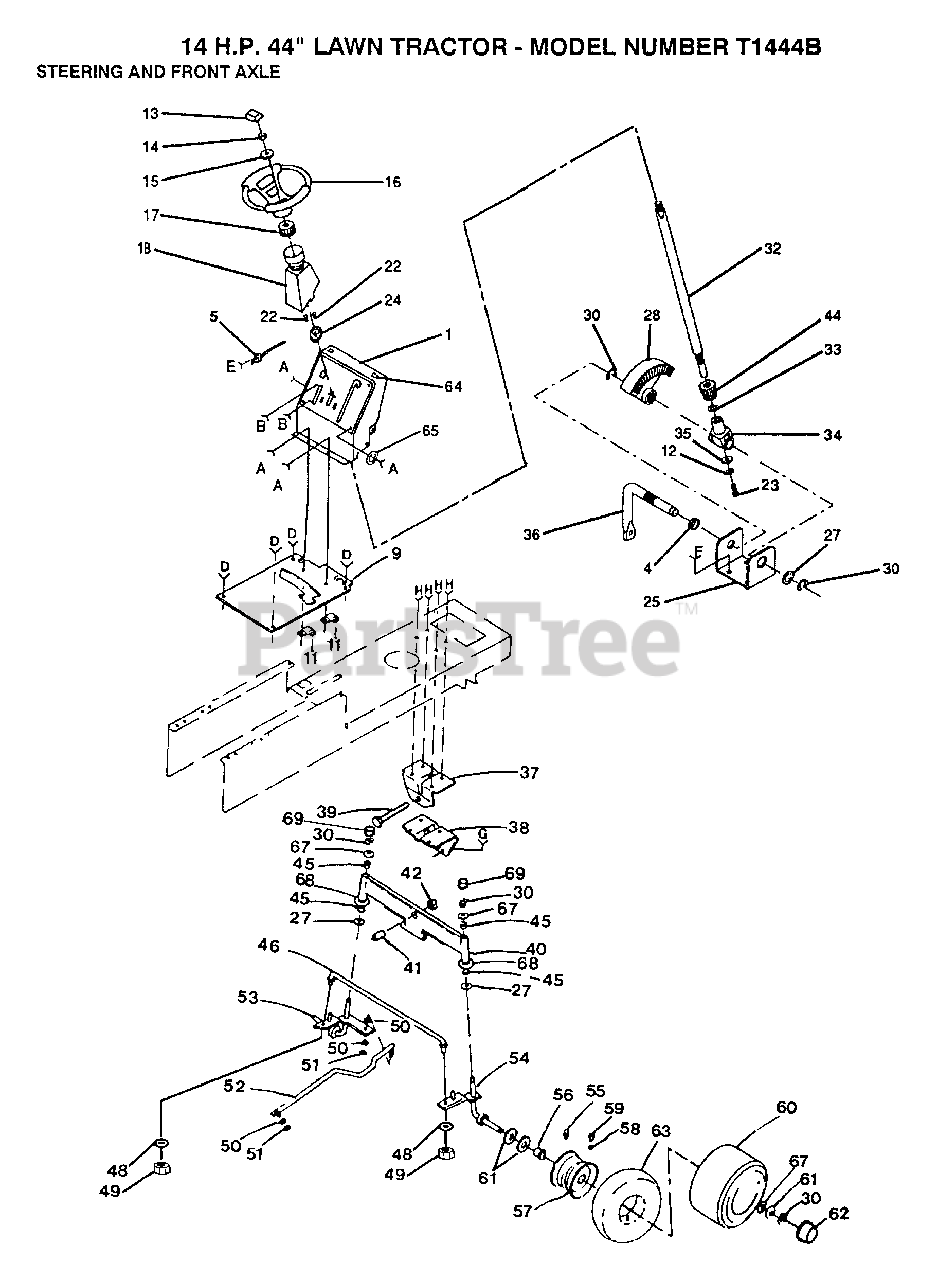

STEERING AND FRONT AXLE Parts Diagram

  • Title

$

$

Not available

4

Electrolux/AYP 109816X

NYLINER T
(Superseded to 532109816)

$6.49

$

In Stock, only 2 left!

0

5

$

$

Not available

$

$

Not available

11

Electrolux/AYP 2751R

CLIP T
(Superseded to 532002751)

$

$

Not available

12

Electrolux/AYP 10040400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

13

Electrolux/AYP 100710L

INSERT-WHEEL LT
(Superseded to 532100710)

$

$

Not available

14

Electrolux/AYP 73940800

SUB= 73360800
(Superseded to 873940800)

$7.49

$

In Stock, only 4 left!

0

15

Electrolux/AYP 100712K

WASHER
(Superseded to 532100712)

$

$

Not available

16

$

$

Not available

17

Electrolux/AYP 100711L

ADAPTER LT
(Superseded to 587738905)

$9.49

$

In Stock, Qty 8

0

18

Electrolux/AYP 124418X

"TUBE, STR SHAFT"
(Superseded to 583669801)

$

$

Not available

22

Electrolux/AYP 17431008

SUB= 98000165

$

$

Not available

23

Electrolux/AYP 71070410

"SCREW,SPECIAL"
(Superseded to 71070510)

$

$

Not available

24

Electrolux/AYP 124373X

"BUSHING,STEERING"

$

$

Not available

25

Electrolux/AYP 124036X

"BRKT,STEERING"
(Superseded to 532124036)

$

$

Not available

27

Electrolux/AYP 6266H

WASHER .T
(Superseded to 532006266)

$7.49

$

In Stock, Qty 11

0

28

$

$

Not available

30

Electrolux/AYP 12000029

RING
(Superseded to 812000029)

$4.99

$

Usually ships in 3-10 days

0

32

$

$

Not available

33

Electrolux/AYP 57079

THRUST WASHER
(Superseded to 532057079)

$6.49

$

In Stock, Qty 11

0

34

Electrolux/AYP 124035X

SUPPORT.SHAFT
(Superseded to 532160395)

$10.99

$

In Stock, Qty 8

0

35

Electrolux/AYP 126684X

SUB= 532126684

$

$

Not available

36

$

$

Not available

37

Electrolux/AYP 105663X

SUPPORT-SADDL T
(Superseded to 532105663)

$

$

Not available

38

Electrolux/AYP 105664X

SUPPORT.SADDLE.FT
(Superseded to 532105664)

$9.49

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 74761060

BOLT LT
(Superseded to 874761060)

$6.49

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 105669X

SUB= 108075X
(Superseded to 108075X)

$

$

Not available

41

Electrolux/AYP 110438X

BEARING
(Superseded to 532110438)

$

$

Not available

42

Electrolux/AYP 73901000

"NUT-LOC,FLANGE LT"
(Superseded to 583612401)

$3.49

$

Usually ships in 3-10 days

0

44

Electrolux/AYP 124037X

"GEAR,PINION"
(Superseded to 532124037)

$

$

Not available

45

Electrolux/AYP 3366R

COL. SRTG. BEAR.
(Superseded to 532003366)

$4.99

$

In Stock, Qty 20+

0

46

Electrolux/AYP 121334X

ROD TIE
(Superseded to 532121334)

$

$

Not available

48

Electrolux/AYP 10040500

LOCKWASHER
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 73810500

NUT.LOCK.5/16-24
(Superseded to 873810500)

$5.99

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 10040600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 73610600

SUB= 7810H
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 124032X

SUB= 532130468

$

$

Not available

53

Electrolux/AYP 105656X

SPINDLE-LH LT
(Superseded to 532105656)

$

$

Not available

54

$

$

Not available

55

Electrolux/AYP 278H

FITTING LT
(Superseded to 532000278)

$6.99

$

Usually ships in 3-10 days

0

56

Electrolux/AYP 9040H

"FLANGE, BEARING"
(Superseded to 532009040)

$7.99

$

In Stock, Qty 20+

0

57

Electrolux/AYP 106732X311

SUB= 106732X427

$

$

Not available

58

Electrolux/AYP 59192

VALVE CAP
(Superseded to 532059192)

$7.49

$

In Stock, Qty 9

0

59

Electrolux/AYP 65139

VALVE STEM LT
(Superseded to 532065139)

$9.99

$

In Stock, only 3 left!

0

60

Electrolux/AYP 106222X

SUB= 122073X
(Superseded to 532122073)

$74.99

$

Usually ships in 3-10 days

0

61

Electrolux/AYP 121749X

WASHER
(Superseded to 532121749)

$3.49

$

Usually ships in 3-10 days

0

62

Electrolux/AYP 104757X

HUB CAP
(Superseded to 532104757)

$4.99

$

In Stock, Qty 20+

0

63

Electrolux/AYP 59904

TUBE.5.3/4.5/6
(Superseded to 532059904)

$37.99

$

In Stock, Qty 7

0

64

Electrolux/AYP 126938X

SUB= 532126938
(Superseded to 532126938)

$

$

Not available

65

Electrolux/AYP 11050500

LOCKWASHER.5/16.E
(Superseded to 811050500)

$

$

Not available

67

Electrolux/AYP 121748X

WASHER
(Superseded to 532121748)

$4.99

$

In Stock, Qty 20+

0

68

Electrolux/AYP 19272016

WASHER
(Superseded to 819272016)

$6.49

$

In Stock, only 2 left!

0

69

Electrolux/AYP 121232X

CAP
(Superseded to 532121232)

$4.99

$

In Stock, Qty 9

0

Electrolux/AYP 109821X

SUB= 138956
(Superseded to 532109821)

$

$

Not available

Electrolux/AYP 126175X

"DECAL,STR WHL T"

$2.49

$

Usually ships in 3-10 days

0
