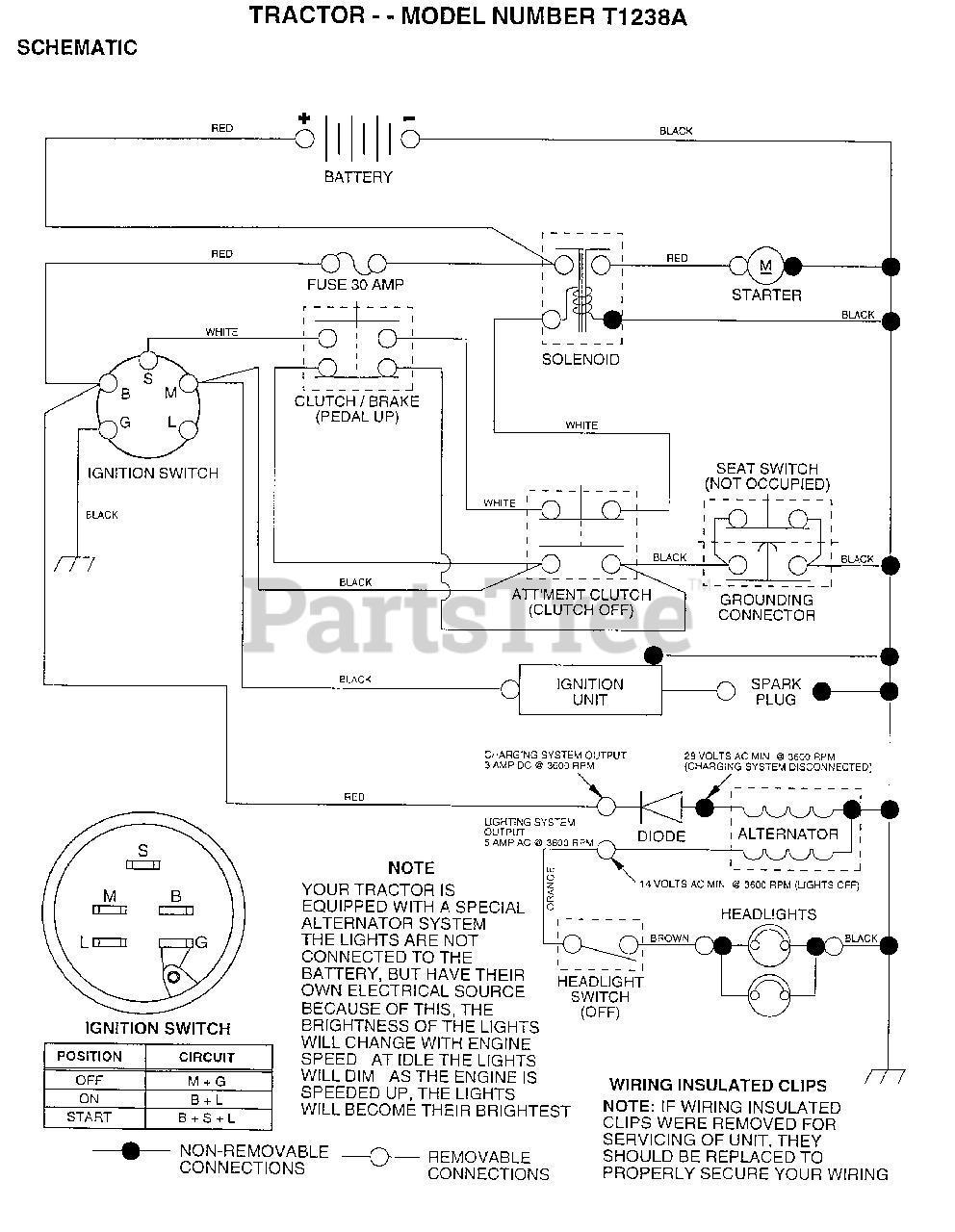

T 1238 A - Electrolux/AYP Lawn Tractor (1996) SCHEMATIC Parts Diagram

Lawn Tractor

SCHEMATIC Parts Diagram

  • Title

1

Electrolux/AYP 138956

DECAL.DASH.INSTR.

$

$

Not available

2

Electrolux/AYP 126171X

"DECAL,GRILL"

$

$

Not available

3

Electrolux/AYP 272440

DECAL, HP ENGINE
(Superseded to 532272440)

$8.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 152472

DECAL GRILLE COOP

$21.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 133795

DECAL CAUTION
(Superseded to 532133795)

$

$

Not available

7

Electrolux/AYP 101892X

DECAL T
(Superseded to 532101892)

$

$

Not available

8

Electrolux/AYP 152473

DECAL LOGO FENDER

$49.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 126658X

DECAL.STRIPE.GR

$1.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 135013

NLA

$

$

Not available

11

Electrolux/AYP 137259

"DECAL, WARNING"
(Superseded to 532137259)

$

$

Not available

12

Electrolux/AYP 152470

DECAL HOOD RH

$26.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 126175X

"DECAL,STR WHL T"

$2.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 152471

DECAL HOOD LH

$26.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 146451

DECAL.BTRY.DANGER

$

$

Not available

16

Electrolux/AYP 140837

DECAL BRAK PARK
(Superseded to 532140837)

$

$

Not available

17

Electrolux/AYP 136832

DECAL
(Superseded to 532136832)

$3.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 138311

DECAL HANDLE LIFT
(Superseded to 581724901)

$15.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 145761

"MANUAL.OP.GEN.38"""

$7.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 152401

MANUAL.P.T1238A

$6.99

$

Usually ships in 3-10 days

0

Electrolux/AYP LSB42

SNOW THROWER

$

$

Not available

Electrolux/AYP LBD48

SNOW BLADE

$

$

Not available

Electrolux/AYP LC05

WHEEL WTS.
(Superseded to 954050501)

$117.99

$

Usually ships in 3-10 days

0

Electrolux/AYP CH12

TIRE CHAINS

$

$

Not available

Electrolux/AYP MK380

KIT.MULCHER
(Superseded to 954040431)

$

$

Not available

Electrolux/AYP C38

GRASS CATCHER
(Superseded to 504830701)

$425.99

$

Usually ships in 3-10 days

0

1

Electrolux/AYP 59192

VALVE CAP
(Superseded to 532059192)

$7.49

$

In Stock, Qty 9

0

2

Electrolux/AYP 65139

VALVE STEM LT
(Superseded to 532065139)

$9.99

$

In Stock, only 1 left!

0

3

Electrolux/AYP 106222X

SUB= 122073X
(Superseded to 532122073)

$74.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 59904

TUBE.5.3/4.5/6
(Superseded to 532059904)

$37.99

$

In Stock, Qty 7

0

5

Electrolux/AYP 106732X427

"RIM ASM 6"" FRT"
(Superseded to 532106732)

$91.99

$

In Stock, only 4 left!

0

6

Electrolux/AYP 278H

FITTING LT
(Superseded to 532000278)

$6.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 9040H

"FLANGE, BEARING"
(Superseded to 532009040)

$7.99

$

In Stock, Qty 20+

0

8

Electrolux/AYP 106108X427

"RIM AS 8"" REAR"
(Superseded to 532106108)

$145.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 124635X

SUB= 126957X

$

$

Not available

10

Electrolux/AYP 7152J

TUBE.18X9.5-8
(Superseded to 532007152)

$74.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 104757X

HUB CAP
(Superseded to 532104757)

$4.99

$

In Stock, Qty 20+

0

Electrolux/AYP 144334

SEALANT.TIRE 10 OZ. TUBE
(Superseded to 532144334)

$

$

Not available
