T 1136 A - Electrolux/AYP Lawn Tractor (1991) MOWER DECK Parts Diagram

Lawn Tractor

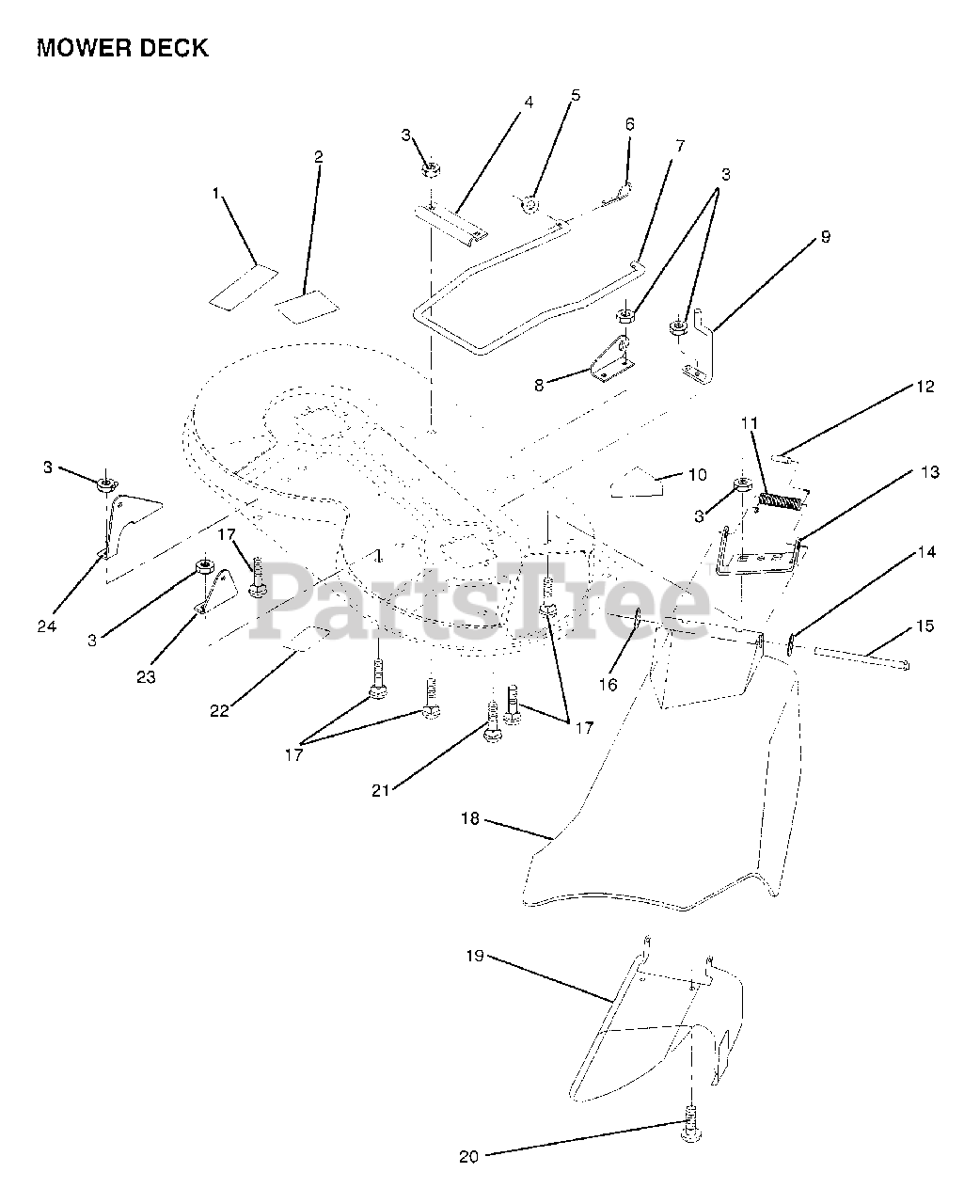

MOWER DECK Parts Diagram

  • Title
1

Electrolux/AYP 109820X

DECAL YT
(Superseded to 532109820)

$

$

Not available

2

Electrolux/AYP 105814X

DECAL.LT
(Superseded to 532105814)

$

$

Not available

3

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

4

Electrolux/AYP 122047X

"BRKT,STAB LINK"
(Superseded to 532122047)

$

$

Not available

5

$

$

Not available

6

Electrolux/AYP 3146R

RETAINER.SPRING
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

7

Electrolux/AYP 124636X

STABILIZER MOWER
(Superseded to 532124636)

$

$

Not available

8

Electrolux/AYP 122045X

"BRKT,FRT LIFT RH"
(Superseded to 532122045)

$

$

Not available

9

Electrolux/AYP 123661X

"GUIDE,FRT MAN RH"
(Superseded to 532123661)

$

$

Not available

10

Electrolux/AYP 123658X

DECAL WARNING
(Superseded to 532123658)

$

$

Not available

11

Electrolux/AYP 123713X

SPRING TORSION
(Superseded to 532123713)

$7.99

$

In Stock, only 1 left!

0

12

Electrolux/AYP 105304X

CAP-SLEEVE LT
(Superseded to 532105304)

$4.99

$

In Stock, Qty 20+

0

13

Electrolux/AYP 126361X

SUB= 532136631

$

$

Not available

14

Electrolux/AYP 19111016

WASHER
(Superseded to 819111016)

$3.99

$

In Stock, Qty 11

0

15

Electrolux/AYP 121980X

HINGE ROD
(Superseded to 532121980)

$

$

Not available

16

Electrolux/AYP 110452X

NUT PUSH M
(Superseded to 532110452)

$3.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 72140505

BOLT
(Superseded to 872140505)

$3.99

$

In Stock, Qty 20+

0

18

$

$

Not available

19

Electrolux/AYP 125629X

DEFL SUPT ASS'Y
(Superseded to 532125629)

$

$

Not available

20

Electrolux/AYP 17051007

SCREW PAN HD
(Superseded to 817051007)

$4.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 74760512

BOLT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

22

Electrolux/AYP 123649X

DECAL WARNING
(Superseded to 532123649)

$

$

Not available

23

Electrolux/AYP 122043X

"BRKT,REAR LIFT RH"
(Superseded to 532122043)

$

$

Not available

24

Electrolux/AYP 122044X

"BRKT,REAR LIFT LH"
(Superseded to 532122044)

$

$

Not available
