T 110 (CMXGRAM1130037) (13AN77XSB93) - Craftsman Lawn Tractor (2023) Fuel Tank Parts Diagram

Lawn Tractor

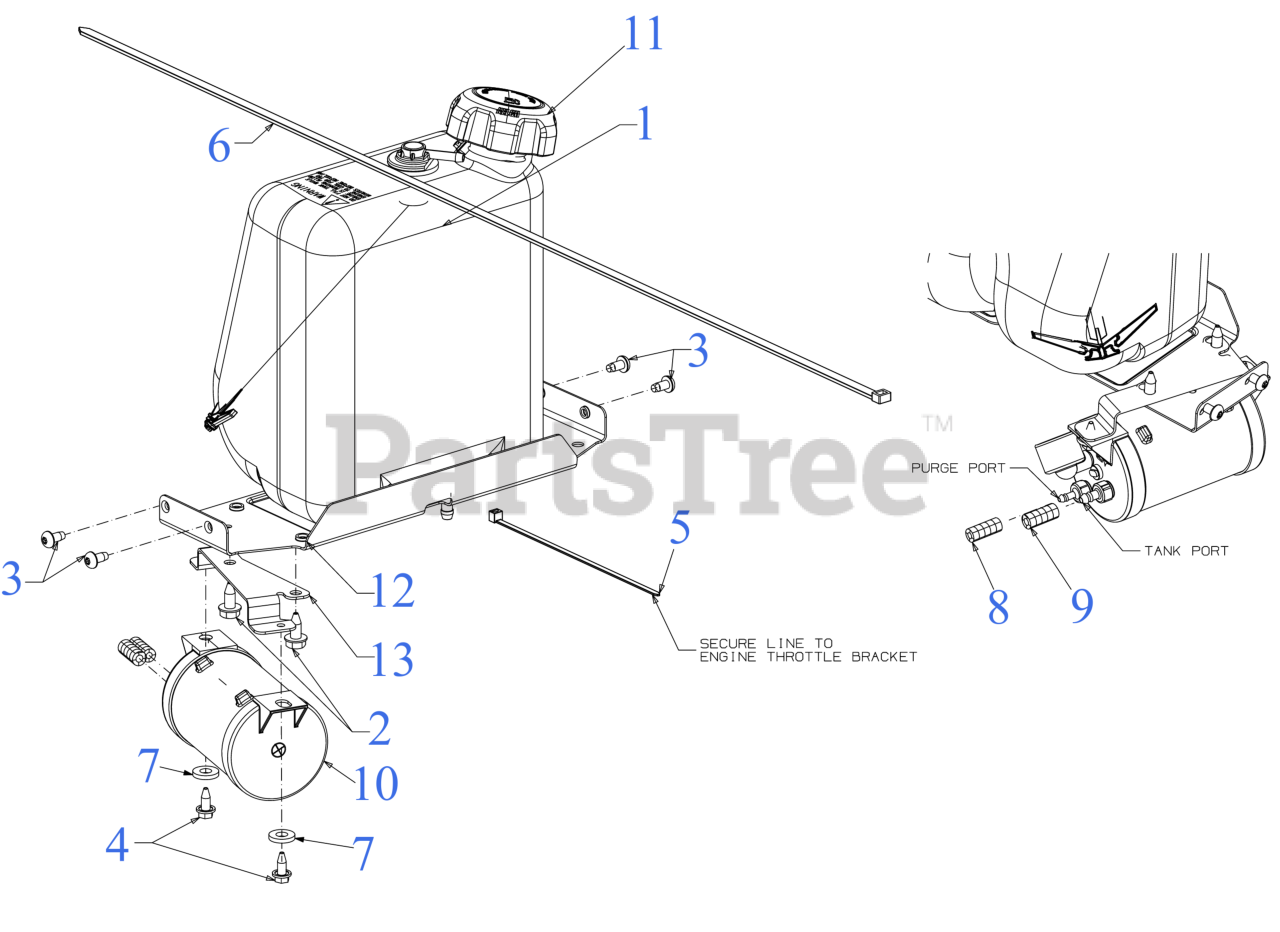

Fuel Tank Parts Diagram

  • Title

1

MTD 951-04304B

FUEL TANK ASSEMBLY (1.36 Gal)

$111.99

$

In Stock, only 1 left!

0

1

MTD 735-04081

RUBBER GROMMET 23.0 ID x 35.5 OD

$4.99

$

In Stock, only 1 left!

0

1

MTD 751-12118

ROLLOVER FUEL VALVE

$35.99

$

In Stock, only 2 left!

0

2

MTD 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

3

MTD 710-05070A

SCREW 1/4-20 x .5

$6.99

$

In Stock, Qty 8

0

4

MTD 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 17

0

5

MTD 725-0157

7" CABLE TIE

$3.99

$

In Stock, only 2 left!

0

6

MTD 726-0230

CABLE TIE 36"

$27.99

$

In Stock, only 1 left!

0

7

MTD 936-3008

FLAT WASHER.344X.75X.1

$6.99

$

In Stock, only 1 left!

0

8

MTD 751-10749-30

FUEL HOSE LO PERMEATION 30"

$36.99

$

Usually ships in 3-6 days

0

9

MTD 751-10750-28

FUEL HOSE LO PERMEATION 28"

$

$

Not available

10

MTD 951-12372A

CARBON CANISTER

$71.99

$

Usually ships in 3-6 days

0

11

MTD 951-12426B

FUEL CAP (W/TETHER)

$41.99

$

Usually ships in 3-6 days

0

12

MTD 783-07083A

FUEL TANK BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 783-07083A-0637

Fuel Tank Bracket - POWDER BLACK (0637)

$28.99

$

Usually ships in 3-6 days

0

$22.99

$

Usually ships in 3-6 days

0

13

MTD 783-09337

CARBON CANISTER BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 783-09337-0637

BRKT-CARBON CNSTR - POWDER BLACK (0637)

$13.99

$

Usually ships in 3-6 days

0

$13.99

$

Usually ships in 3-6 days

0
