T-10 (1690052) - Homelite Garden Tractor, 10hp Transmission Group (3859I05) Parts Diagram

Garden Tractor, 10hp

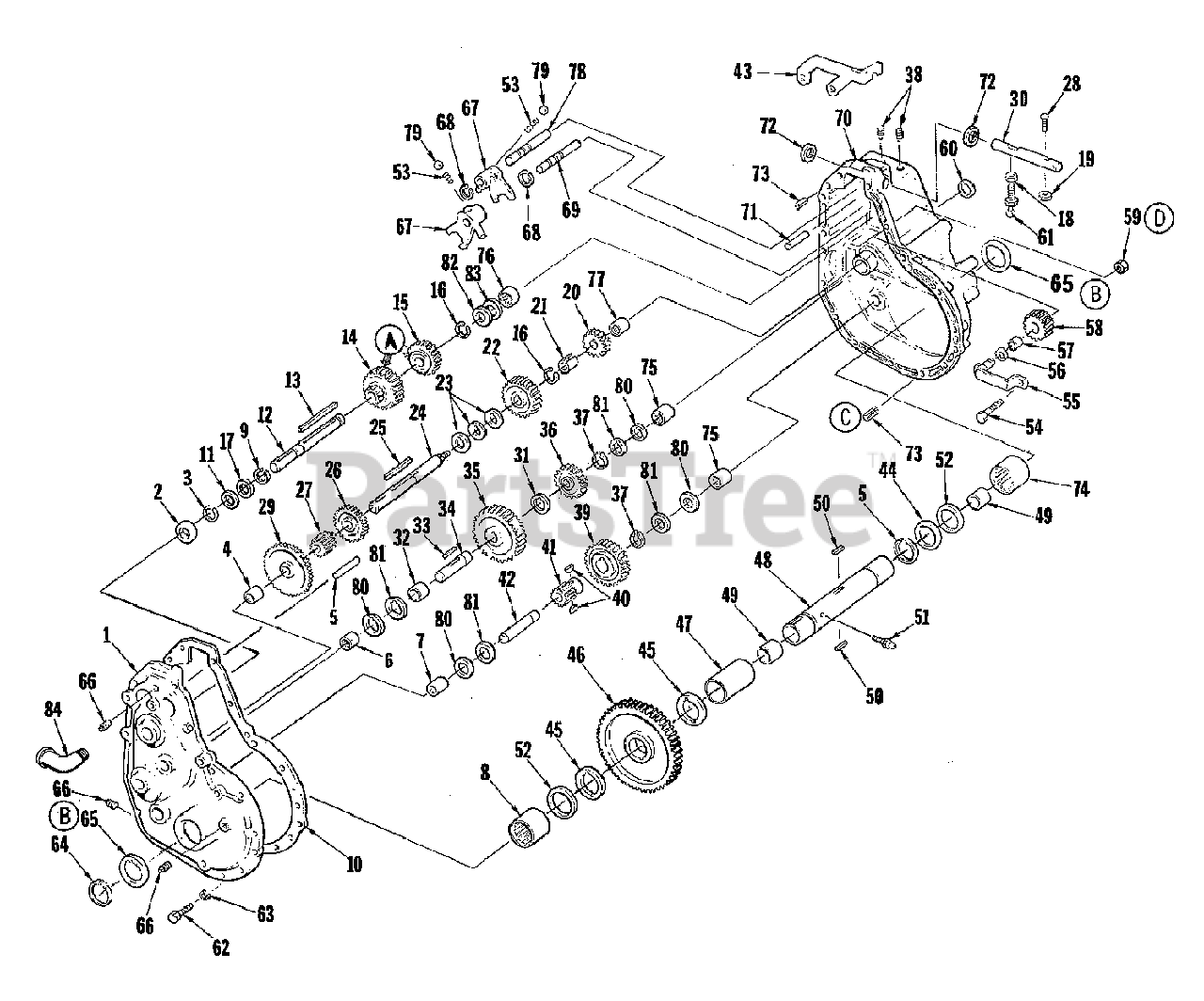

Transmission Group (3859I05) Parts Diagram

  • Title

1

Simplicity LM-01642-26

COVER, Gear Case Sub Assembly

$

$

Not available

2

Simplicity LM-01082-02

BEARING

$

$

Not available

3

Simplicity LM-01640-64

RING, Retaining

$

$

Not available

4

Simplicity LM-01542-57

BEARING, Needle

$

$

Not available

5

Simplicity LM-01545-37

ROLL PIN ASSEMBLY

$

$

Not available

6

Simplicity LM-01542-71

BEARING, Needle

$

$

Not available

7

Simplicity LM-01542-59

BEARING, Needle

$

$

Not available

8

Simplicity LM-01575-20

BEARING, Needle

$

$

Not available

9

Simplicity LM-01181-34

RING, Retaining

$

$

Not available

10

Simplicity LM-01642-34

GASKET, Gear Case

$

$

Not available

11

Simplicity LM-01084-72

WASHER

$

$

Not available

12

Simplicity LM-01743-38

SHAFT, Pulley

$

$

Not available

12

Simplicity LM-01743-38

SHAFT, Pulley

$

$

Not available

13

Simplicity LM-01738-07

KEY

$

$

Not available

14

Simplicity LM-01642-94

PINION ASSEMBLY

$

$

Not available

15

Simplicity LM-01540-75

PINION ASSEMBLY, Rev. & II

$

$

Not available

16

Simplicity LM-01540-72

RING, Retaining

$

$

Not available

17

Simplicity LM-01544-62

WASHER

$

$

Not available

18

Simplicity LM-09221-32

NUT, Full, 3/8-24

$

$

Not available

19

Simplicity LM-09201-61

NUT, Hex Jam Fin, 5/16-18

$

$

Not available

20

Simplicity LM-01742-28

PINION, Rev. & IV

$

$

Not available

21

Simplicity LM-01540-82

SPACER

$

$

Not available

22

Simplicity LM-01540-81

GEAR, Driven II

$

$

Not available

23

Simplicity LM-80610-12

SPACER, Transmission Gear

$

$

Not available

24

Simplicity LM-01572-90

SHAFT, 1st Intermediate

$

$

Not available

25

Simplicity LM-01543-54

KEY

$

$

Not available

26

Simplicity LM-01540-80

PINION, Driven III

$

$

Not available

27

Simplicity LM-01540-79

PINION, 1st Intermediate

$

$

Not available

28

Simplicity LM-01722-41

BOLT, Round Head, 5/16-18 x 1

$

$

Not available

29

Simplicity LM-01540-78

GEAR, Driven 1st

$

$

Not available

30

Simplicity LM-01642-50

ROD, Shift Assembly

$

$

Not available

31

Simplicity LM-01540-38

WASHER

$

$

Not available

32

Simplicity LM-01540-90

SPACER

$

$

Not available

33

Simplicity LM-01542-67

KEY

$

$

Not available

34

Simplicity LM-01540-86

SHAFT, 2nd Intermediate

$

$

Not available

35

Simplicity LM-01540-89

GEAR, 2nd Intermediate

$

$

Not available

36

Simplicity LM-01640-62

PINION, 2nd Intermediate

$

$

Not available

37

Simplicity LM-01542-66

RING, Retaining

$

$

Not available

38

Simplicity LM-09172-31

SCREW, Set Socket head, 5/16-18 x 1/2

$

$

Not available

39

Simplicity LM-01640-51

GEAR, 3rd Intermediate

$

$

Not available

40

Simplicity LM-09102-24

KEY, Woodruff #6

$

$

Not available

41

Simplicity LM-01540-92

PINION, 3rd Intermediate

$

$

Not available

42

Simplicity LM-01540-91

SHAFT, 3rd Intermediate

$

$

Not available

43

Simplicity LM-01642-51

SUPPORT, Switch

$

$

Not available

44

Simplicity LM-01540-97

WASHER

$

$

Not available

45

Simplicity LM-01541-30

WASHER, Axle Tube

$

$

Not available

46

Simplicity LM-01540-95

GEAR, Drive

$

$

Not available

47

Simplicity LM-01540-98

SPACER, Axle Tube

$

$

Not available

48

Simplicity LM-01642-22

TUBE & BUSHING ASSEMBLY

$

$

Not available

49

Simplicity LM-01642-24

BUSHING

$

$

Not available

50

Simplicity LM-01540-96

KEY

$

$

Not available

51

Simplicity LM-09128-08

FITTING, Lube

$

$

Not available

52

Simplicity LM-01729-77

WASHER

$

$

Not available

53

Simplicity LM-01543-23

SPRING

$

$

Not available

54

Simplicity LM-09174-00

SCREW, Hex Head Cap, 3/8-16 x 1-1/4

$

$

Not available

55

Simplicity LM-01543-52

PIN ASSEMBLY, Reverse Gear

$

$

Not available

56

Simplicity LM-01543-25

WASHER

$

$

Not available

57

Simplicity LM-01540-84

SPACER, Reverse Gear

$

$

Not available

58

Simplicity LM-01540-87

GEAR, Reverse

$

$

Not available

59

Simplicity LM-09180-16

NUT, Hex Lock Fin

$

$

Not available

60

Simplicity LM-01542-63

SEAL, Oil

$

$

Not available

61

Simplicity LM-01542-61

STEM, Shift

$

$

Not available

62

Simplicity LM-09164-31

SCREW, Hex Head Cap, 5/16-18 x 1

$

$

Not available

63

Simplicity LM-09173-56

WASHER, Lock, 5/16

$

$

Not available

64

Simplicity LM-01542-68

RING, Snap

$

$

Not available

65

Simplicity LM-01542-69

SEAL

$

$

Not available

66

Simplicity LM-09016-53

PLUG, Pipe

$

$

Not available

67

Simplicity LM-01540-69

FORK, Shift

$

$

Not available

68

Simplicity LM-80610-48

RING, Retaining

$

$

Not available

69

Simplicity LM-01540-68

SHAFT, Shifter, Hi-Lo

$

$

Not available

70

Simplicity LM-01575-16

CASE, Gear Sub Assembly

$

$

Not available

70

Simplicity LM-01745-82

CASE, Gear Sub Assembly

$

$

Not available

71

Simplicity LM-01545-38

ROLL PIN SUB ASSEMBLY

$

$

Not available

72

Simplicity LM-01576-19

SEAL, Oil

$

$

Not available

73

Simplicity LM-09181-13

PIN, Roll

$

$

Not available

74

Simplicity LM-01575-19

BEARING, Needle

$

$

Not available

75

Simplicity LM-01542-59

BEARING, Needle

$

$

Not available

75

Simplicity LM-01542-59

BEARING, Needle

$

$

Not available

76

Simplicity LM-01542-57

BEARING, Needle

$

$

Not available

77

Simplicity LM-01542-58

BEARING, Needle

$

$

Not available

78

Simplicity LM-01540-67

SHAFT, Shifter Reverse Medium

$

$

Not available

79

Simplicity LM-01542-62

BALL, Shift Lock

$

$

Not available

80

Simplicity LM-01729-79

WASHER

$

$

Not available

81

Simplicity LM-01729-78

WASHER

$

$

Not available

81

Simplicity LM-01729-78

WASHER

$

$

Not available

82

Simplicity LM-01729-82

WASHER

$

$

Not available

83

Simplicity LM-01729-81

WASHER

$

$

Not available

84

Simplicity LM-09017-23

ELBOW, Street

$

$

Not available
