T-10 (1690052) - Homelite Garden Tractor, 10hp Frame, Hood, Dash & Seat Group (3859I09) Parts Diagram

Garden Tractor, 10hp

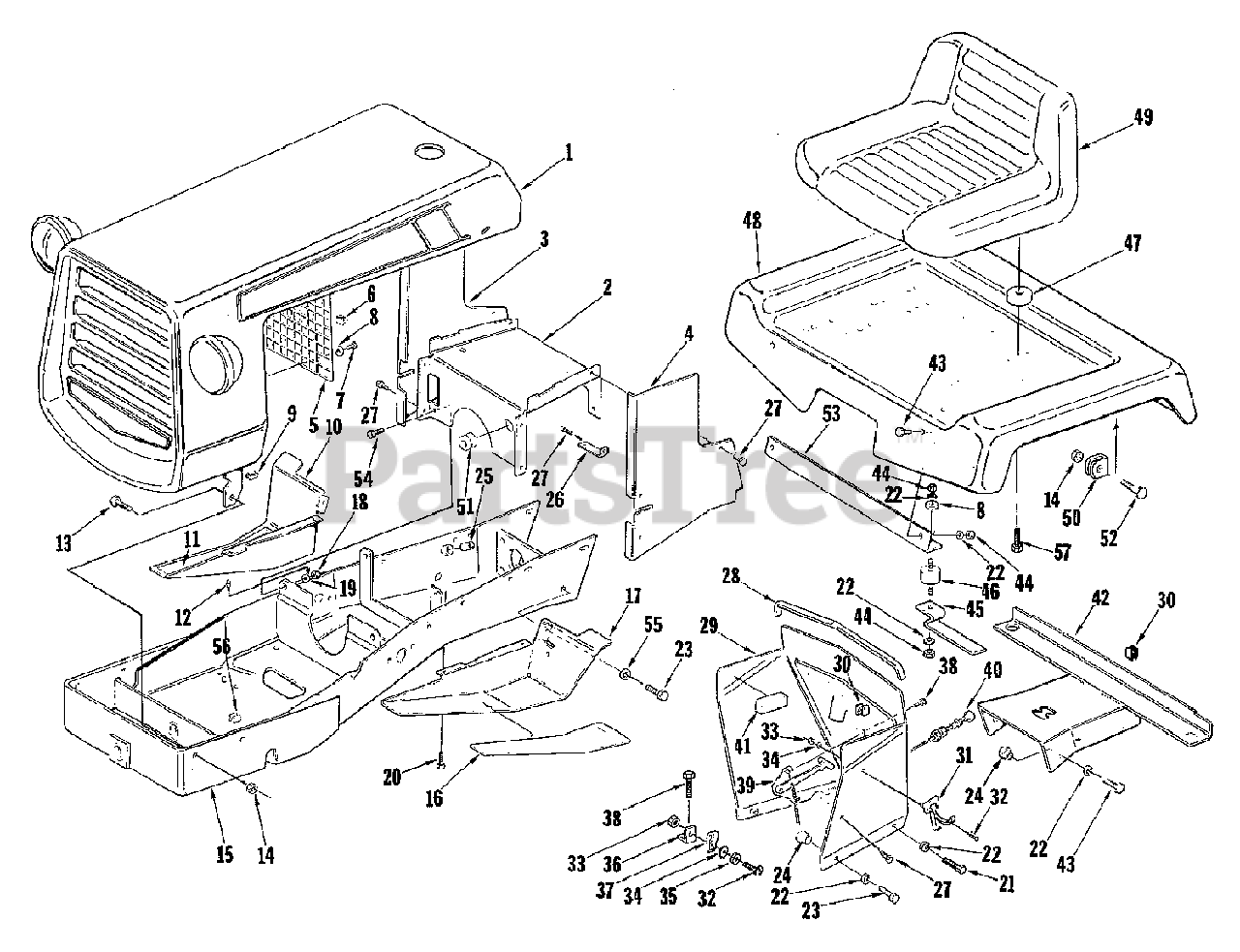

Frame, Hood, Dash & Seat Group (3859I09) Parts Diagram

  • Title

1

Simplicity LM-16063-79

HOOD ASSEMBLY

$

$

Not available

2

Simplicity LM-16081-06

SUPPORT ASSEMBLY, Battery

$

$

Not available

3

Simplicity LM-16064-48

PANEL, Side (R.H.)

$

$

Not available

4

Simplicity LM-16064-47

PANEL, Side (L.H.)

$

$

Not available

5

Simplicity LM-16071-83

SCREEN, Grille

$

$

Not available

6

Simplicity LM-01650-74

SPEED, Clip

$

$

Not available

7

Simplicity LM-16045-56

RIVET, Pop

$

$

Not available

8

Simplicity LM-09173-77

WASHER, 1/4

$

$

Not available

9

Simplicity LM-16044-51

SPEED CLIP

$

$

Not available

10

Simplicity LM-16064-09

FOOT REST (R.H.)

$

$

Not available

11

Simplicity LM-16066-77

PAD, Foot (R.H.)

$

$

Not available

12

Simplicity LM-09211-33

FITTING, Lube (Drive Type)

$

$

Not available

13

Simplicity LM-09221-10

BOLT, Carriage, 3/8-16 x 3/4

$

$

Not available

14

Simplicity LM-09234-28

NUT, Hex Lock, 3/8-16

$

$

Not available

15

Simplicity LM-16081-08

FRAME ASSEMBLY

$

$

Not available

16

Simplicity LM-16066-78

PAD, Foot (L.H.)

$

$

Not available

17

Simplicity LM-16064-08

FOOT REST (L.H.)

$

$

Not available

18

Simplicity LM-09169-50

NUT, Hex Head, 3/8-16

$

$

Not available

19

Simplicity LM-09169-65

WASHER, Lock, 3/8

$

$

Not available

20

Simplicity LM-09236-83

SCREW, Taptite, 3/8-16 x 3/4

$

$

Not available

21

Simplicity LM-09173-97

SCREW, Lock, 5/16

$

$

Not available

22

Simplicity LM-09173-56

WASHER, Lock, 5/16

$

$

Not available

23

Simplicity LM-09248-56

SCREW, Hex Head Taptie, 3/8-16 x 1/2

$

$

Not available

24

Simplicity LM-09228-58

NUT, Retainer, 5/16-18

$

$

Not available

25

Simplicity LM-16064-45

BEARING, Sleeve

$

$

Not available

26

Simplicity LM-09253-07

CLIP, Closed

$

$

Not available

26

Simplicity LM-09253-07

CLIP, Closed (T-16H)

$

$

Not available

27

Simplicity LM-09250-03

SCREW, Taptie, 1/4-20 x 1/2

$

$

Not available

28

Simplicity LM-16066-16

BOULDING, Dash

$

$

Not available

29

Simplicity LM-16080-83

PANEL ASSEMBLY, Instrument

$

$

Not available

30

Simplicity LM-01724-34

CLIP, Cable

$

$

Not available

31

Simplicity LM-16032-78

LATCH, Hood

$

$

Not available

32

Simplicity LM-09160-79

SCREW, Round Head, 10-24 x 3/8

$

$

Not available

33

Simplicity LM-09166-21

NUT, Hex, 10-24

$

$

Not available

34

Simplicity LM-09227-11

WASHER, Lock, #10, Extension Tooth

$

$

Not available

35

Simplicity LM-09232-12

WASHER, #10

$

$

Not available

36

Simplicity LM-01573-15

BRACKET, Throttle Cable

$

$

Not available

37

Simplicity LM-16031-04

CLIP, Throttle Cable

$

$

Not available

38

Simplicity LM-09274-29

SCREW, Tapping, 1/4-20 x 5/8 (Taptite)

$

$

Not available

39

Simplicity LM-16066-89

THROTTLE

$

$

Not available

40

Simplicity LM-01713-34

CHOKE (Includes Nut & Washer)

$

$

Not available

41

Simplicity LM-01065-82

GASKET, Felt

$

$

Not available

42

Simplicity LM-16064-61

COVER ASSEMBLY, Frame

$

$

Not available

43

Simplicity LM-09193-18

SCREW, Hex Head Cap, 5/16-18 x 5/8

$

$

Not available

44

Simplicity LM-09173-72

NUT, Hex, 5/16-18

$

$

Not available

45

Simplicity LM-16068-23

CLIP, Spring

$

$

Not available

46

Simplicity LM-01570-94

CONNECTOR, Cushion

$

$

Not available

47

Simplicity LM-16085-35

CONNECTOR, Cushion

$

$

Not available

48

Simplicity LM-01661-11

DECK ASSEMBLY, Seat

$

$

Not available

49

Simplicity LM-16079-86

SEAT

$

$

Not available

50

Simplicity LM-16078-70

STOP, Seat Deck

$

$

Not available

51

Simplicity LM-16021-02

GROMMET (T-10, T-16S)

$

$

Not available

51

Simplicity LM-16021-02

GROMMET (T-16H)

$

$

Not available

52

Simplicity LM-09174-00

SCREW, Hex Head Cap, 3/8-16 x 1-1/4

$

$

Not available

53

Simplicity LM-01640-29

BRACKET, Front Seat Deck

$

$

Not available

54

Simplicity LM-09081-27

SCREW, Hex Cap, 3/8-16 x 3/4

$

$

Not available

55

Simplicity LM-09227-55

WASHER, Flat, 13/32

$

$

Not available

56

Simplicity LM-01724-36

CLIP, Cable

$

$

Not available

57

Simplicity LM-09213-33

SCREW, Cap, 5/16-18 x 1

$

$

Not available
