T-10 (1600363) - Homelite Garden Tractor, 10hp Draw Bar Group (3859I01) Parts Diagram

Garden Tractor, 10hp

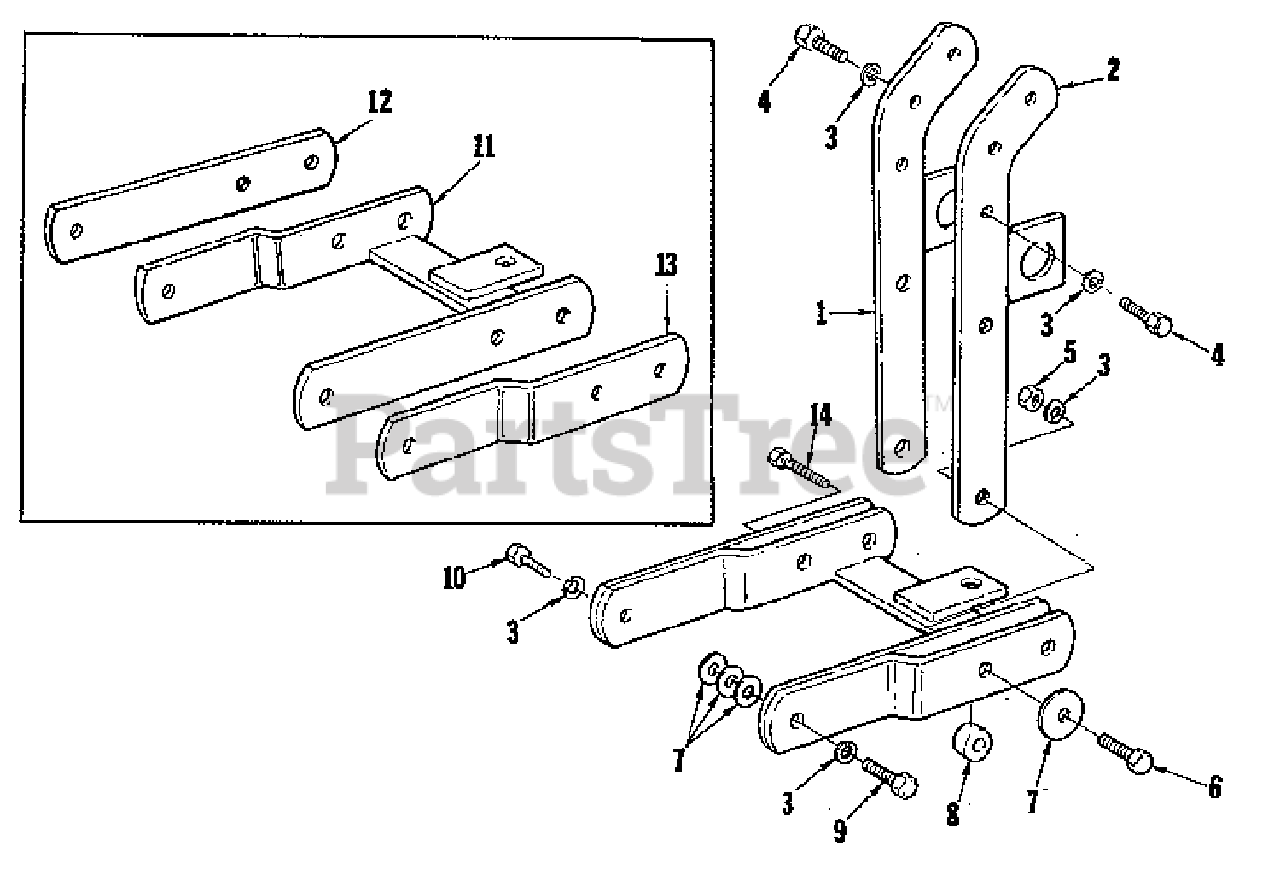

Draw Bar Group (3859I01) Parts Diagram

  • Title
1

Simplicity LM-01643-04

ARM ASSEMBLY, L.H.

$

$

Not available

2

Simplicity LM-01642-84

ARM ASSEMBLY, R.H.

$

$

Not available

3

Simplicity LM-09181-99

WASHER, Lock

$

$

Not available

4

Simplicity LM-09182-12

SCREW, Hex Head Cap

$

$

Not available

$

$

Not available

6

Simplicity LM-09166-09

SCREW, Hex Head Cap, 7/16-14 x 1-3/4

$

$

Not available

7

Simplicity LM-09184-30

WASHER, Flat

$

$

Not available

$

$

Not available

9

Simplicity LM-09166-08

SCREW, Hex Head Cap, 7/16-14 x 1-1/2

$

$

Not available

10

Simplicity LM-09164-32

SCREW, Hex Head Cap, 7/16-14 x 1-1/4

$

$

Not available

11

Simplicity LM-16066-36

DRAWBAR ASSEMBLY

$

$

Not available

12

$

$

Not available

13

$

$

Not available

14

Simplicity LM-09174-03

SCREW, Hex, 7/16-14 x 2

$

$

Not available
