T-10 (1600283) - Homelite Garden Tractor, 10hp Transmission Group (3859I06) Parts Diagram

Garden Tractor, 10hp

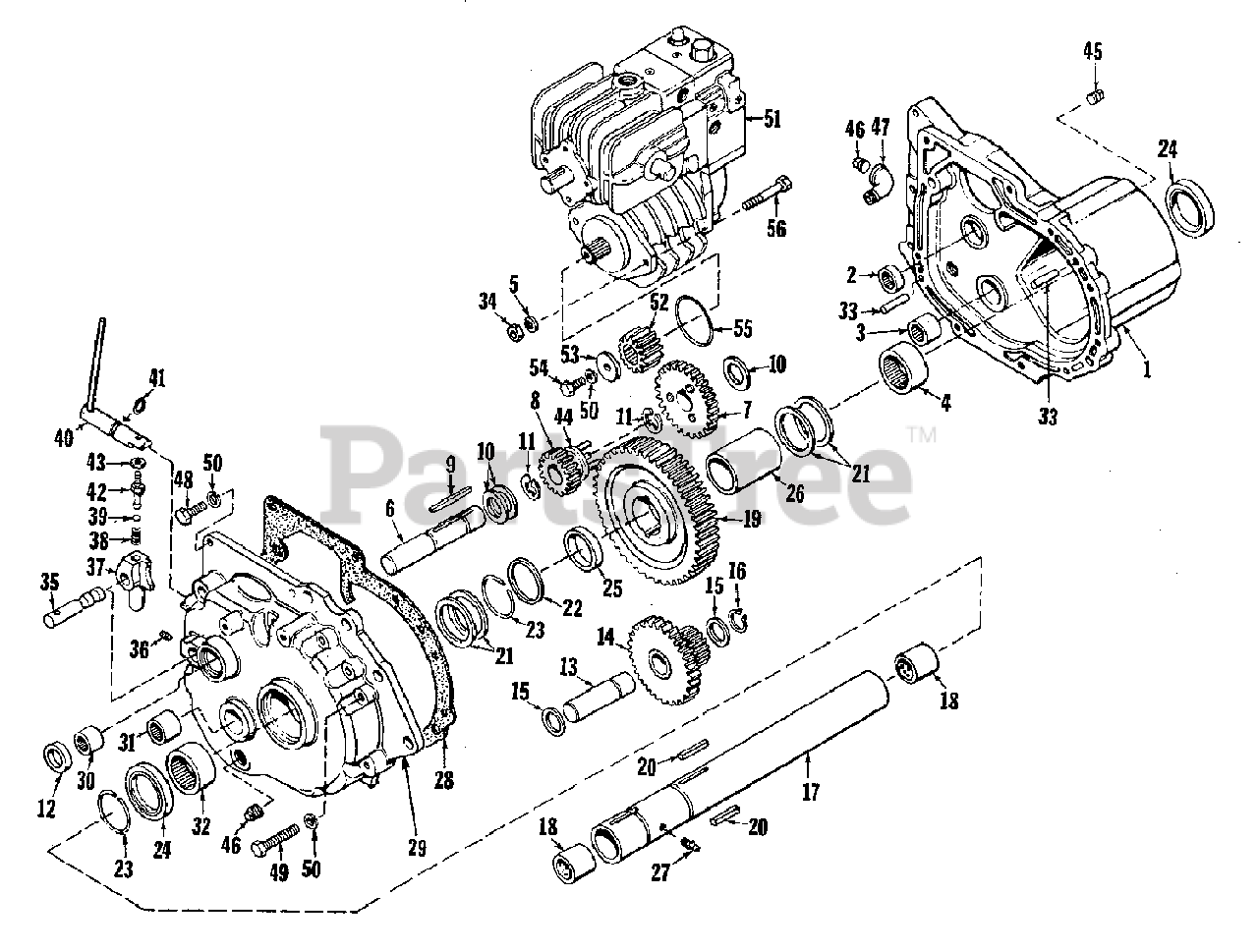

Transmission Group (3859I06) Parts Diagram

  • Title

1

Simplicity LM-01661-05

GEAR CASE

$

$

Not available

2

Simplicity LM-01542-71

BEARING, Needle

$

$

Not available

3

Simplicity LM-01660-18

BEARING, Needle

$

$

Not available

4

Simplicity LM-01575-19

BEARING, Needle

$

$

Not available

5

Simplicity LM-09191-99

WASHER, Lock, 7/16

$

$

Not available

6

Simplicity LM-01762-46

BRAKE SHAFT

$

$

Not available

7

Simplicity LM-01762-45

GEAR, 1st Intermediate

$

$

Not available

8

Simplicity LM-01762-43

PINION, 1st Intermediate

$

$

Not available

9

Simplicity LM-01762-44

KEY

$

$

Not available

10

Simplicity LM-01660-13

WASHER

$

$

Not available

11

Simplicity LM-01769-80

RING, Retainer

$

$

Not available

12

Simplicity LM-01660-21

SEAL, Oil

$

$

Not available

13

Simplicity LM-01660-12

SHAFT, Intermediate

$

$

Not available

14

Simplicity LM-01762-36

PINION & GEAR ASSEMBLY

$

$

Not available

15

Simplicity LM-01660-16

WASHER

$

$

Not available

16

Simplicity LM-01660-17

RING, Retaining

$

$

Not available

17

Simplicity LM-01660-66

AXLE TUBE ASSEMBLY

$

$

Not available

18

Simplicity LM-01642-24

BUSHING

$

$

Not available

19

Simplicity LM-01660-06

GEAR, Drive

$

$

Not available

20

Simplicity LM-01540-96

KEY

$

$

Not available

21

Simplicity LM-01540-97

WASHER

$

$

Not available

22

Simplicity LM-01661-67

WASHER

$

$

Not available

23

Simplicity LM-01542-68

RING, Snap

$

$

Not available

24

Simplicity LM-01542-69

SEAL

$

$

Not available

25

Simplicity LM-01660-40

SPACER, Side, R.H.

$

$

Not available

26

Simplicity LM-01660-41

SPACER, Side, L.H.

$

$

Not available

27

Simplicity LM-09128-08

FITTING, Grease

$

$

Not available

28

Simplicity LM-01660-43

GASKET, Gear Case

$

$

Not available

29

Simplicity LM-01661-03

COVER, Gear Case Sub Assembly

$

$

Not available

30

Simplicity LM-01660-19

BEARING, Needle

$

$

Not available

31

Simplicity LM-01660-18

BEARING, Needle

$

$

Not available

32

Simplicity LM-01575-19

BEARING, Needle

$

$

Not available

33

Simplicity LM-09183-90

PIN, Roll, 3/8 x 1

$

$

Not available

34

Simplicity LM-09182-13

NUT, Full Hex, 7/16-14

$

$

Not available

35

Simplicity LM-01762-39

SHAFT, Shifter

$

$

Not available

36

Simplicity LM-09172-31

SCREW, Cone Point, Hollow Head, 5/16-18 x 1/2

$

$

Not available

37

Simplicity LM-01762-34

FORK, Shift

$

$

Not available

38

Simplicity LM-01543-23

SPRING

$

$

Not available

39

Simplicity LM-01542-62

BALL, Shift Lock

$

$

Not available

40

Simplicity LM-01762-38

SHIFT SHAFT ASSEMBLY

$

$

Not available

41

Simplicity LM-09235-48

RING, "O"

$

$

Not available

42

Simplicity LM-01660-29

STEM, Shift

$

$

Not available

43

Simplicity LM-09204-38

NUT, Hex Jam, 5/16-24

$

$

Not available

44

Simplicity LM-01762-42

FLANGE, Drive

$

$

Not available

45

Simplicity LM-09016-52

PLUG, Pipe, 1/4

$

$

Not available

46

Simplicity LM-09016-53

PLUG, Pipe

$

$

Not available

47

Simplicity LM-09017-23

ELBOW, Street, 3/8

$

$

Not available

48

Simplicity LM-09164-31

SCREW, Hex Cap, 5/16-18 x 1

$

$

Not available

49

Simplicity LM-09193-54

SCREW, Hex Cap, 5/16-18 x 2

$

$

Not available

50

Simplicity LM-09173-56

WASHER, Lock, 5/16

$

$

Not available

51

Simplicity LM-01660-97

PUMP & MOTOR UNIT, Hydrostatic

$

$

Not available

52

Simplicity LM-01660-03

PINION, Motor Shaft

$

$

Not available

53

Simplicity LM-01231-44

WASHER

$

$

Not available

54

Simplicity LM-09219-80

SCREW, Hex Cap, 5/16-24 x 5/8

$

$

Not available

55

Simplicity LM-01660-26

RING, "O"

$

$

Not available

56

Simplicity LM-01762-42

SCREW, Hex Cap, 7/16-14 x 4

$

$

Not available
