T-10 (1600283) - Homelite Garden Tractor, 10hp Shuttle Controls Group (3859I16) Parts Diagram

Garden Tractor, 10hp

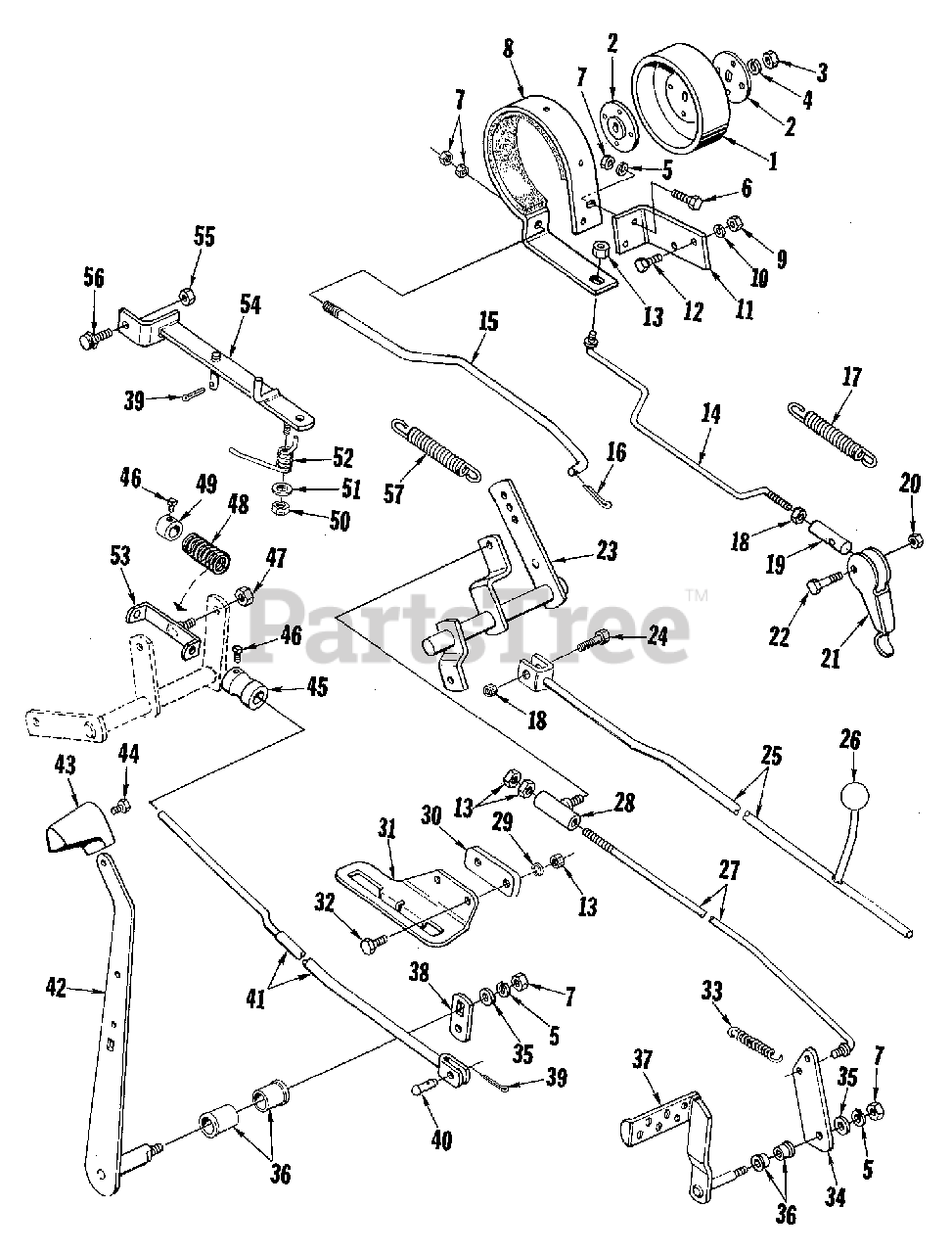

Shuttle Controls Group (3859I16) Parts Diagram

  • Title

1

Simplicity LM-01572-82

BRAKE DRUM

$

$

Not available

2

Simplicity LM-01581-96

WASHER, Special

$

$

Not available

3

Simplicity LM-09240-58

NUT, Hex, Full, 7/16-14

$

$

Not available

4

Simplicity LM-09184-30

WASHER, Lock, 7/16

$

$

Not available

5

Simplicity LM-09169-65

WASHER, Lock, 3/8

$

$

Not available

6

Simplicity LM-09077-31

SCREW, Hex Cap, 3/8-16 x 1

$

$

Not available

7

Simplicity LM-09169-50

NUT, Hex Full, 3/8-16

$

$

Not available

8

Simplicity LM-01714-97

BRAKE BAND ASSEMBLY

$

$

Not available

9

Simplicity LM-09166-22

NUT, Hex Full, 1/4-20

$

$

Not available

10

Simplicity LM-09169-64

WASHER, Lock, 1/4

$

$

Not available

11

Simplicity LM-01641-13

BRACKET, Brake Band

$

$

Not available

12

Simplicity LM-09160-19

SCREW, Hex Cap, 1/4-20 x 3/4

$

$

Not available

13

Simplicity LM-09173-72

NUT, Hex Full, 5/16-18

$

$

Not available

14

Simplicity LM-16069-03

ROD, Parking Brake

$

$

Not available

15

Simplicity LM-01641-89

ROD, Brake

$

$

Not available

16

Simplicity LM-09184-48

PIN, Cotter

$

$

Not available

17

Simplicity LM-01210-37

SPRING

$

$

Not available

18

Simplicity LM-09233-62

NUT, Hex Full, 5/16-18

$

$

Not available

19

Simplicity LM-01719-94

ROD END

$

$

Not available

20

Simplicity LM-09233-58

NUT, Hex Lock Full, 1/4-20

$

$

Not available

21

Simplicity LM-01721-08

LEVER, Parking Brake

$

$

Not available

22

Simplicity LM-09287-45

SCREW, Hex Cap, 1/4-20 x 1-1/4

$

$

Not available

23

Simplicity LM-01640-89

LEVER, Pivot

$

$

Not available

24

Simplicity LM-09261-50

SCREW, Hex Cap, 5/16-18 x 1-1/2

$

$

Not available

25

Simplicity LM-16064-49

ROD, Shift

$

$

Not available

26

Simplicity LM-16010-42

KNOB, Ball

$

$

Not available

27

Simplicity LM-16080-37

ROD ASSEMBLY, Clutch & Brake

$

$

Not available

28

Simplicity LM-16043-19

GUIDE, Rod Assembly

$

$

Not available

29

Simplicity LM-09173-56

WASHER, Lock, 5/16

$

$

Not available

30

Simplicity LM-16074-15

SPACER, Speed Control Quadrant

$

$

Not available

31

Simplicity LM-01744-73

QUADRANT

$

$

Not available

32

Simplicity LM-09173-97

SCREW, Hex Head, 5/16-18 x 3/4

$

$

Not available

33

Simplicity LM-01591-06

SPRING, Tension

$

$

Not available

34

Simplicity LM-16064-77

ARM, Foot Pedal

$

$

Not available

35

Simplicity LM-09173-78

WASHER, Plain, 3/8

$

$

Not available

36

Simplicity LM-16104-56

BUSHING, Flanged

$

$

Not available

37

Simplicity LM-01711-78

FOOT PEDAL ASSEMBLY

$

$

Not available

38

Simplicity LM-16065-48

LINK

$

$

Not available

39

Simplicity LM-09184-47

PIN, Cotter, 3/32 x 3/4

$

$

Not available

40

Simplicity LM-16087-02

PIN

$

$

Not available

41

Simplicity LM-16081-95

ROD ASSEMBLY SPEED CONTROL

$

$

Not available

42

Simplicity LM-01710-72

LEVER ASSEMBLY SPEED CONTROL

$

$

Not available

43

Simplicity LM-01711-65

KNOB

$

$

Not available

44

Simplicity LM-09221-25

SCREW, Hex Self Forming

$

$

Not available

45

Simplicity LM-01748-55

DETENT, Brake

$

$

Not available

46

Simplicity LM-09288-04

SCREW, Set Square Head, 1/4-20 x 3/8

$

$

Not available

47

Simplicity LM-09234-28

NUT, Hex Full Lock, 3/8-16

$

$

Not available

48

Simplicity LM-01620-65

SPRING

$

$

Not available

49

Simplicity LM-16024-35

COLLAR, Set

$

$

Not available

50

Simplicity LM-09287-31

NUT, Hex Jam, 3/8-16

$

$

Not available

51

Simplicity LM-09176-42

WASHER, 5/16

$

$

Not available

52

Simplicity LM-16077-18

SPRING

$

$

Not available

53

Simplicity LM-01753-35

ROD, Guide Assembly

$

$

Not available

54

Simplicity LM-16077-17

BRAKE, Lever Assembly

$

$

Not available

55

Simplicity LM-09201-61

NUT, Hex Jam, 5/16-18

$

$

Not available

56

Simplicity LM-01748-54

PAD, Brake

$

$

Not available

57

Simplicity LM-01748-96

SPRING

$

$

Not available
