T-10 (1600110) - Homelite Garden Tractor, 10hp Electrical Group (3858I08) Parts Diagram

Garden Tractor, 10hp

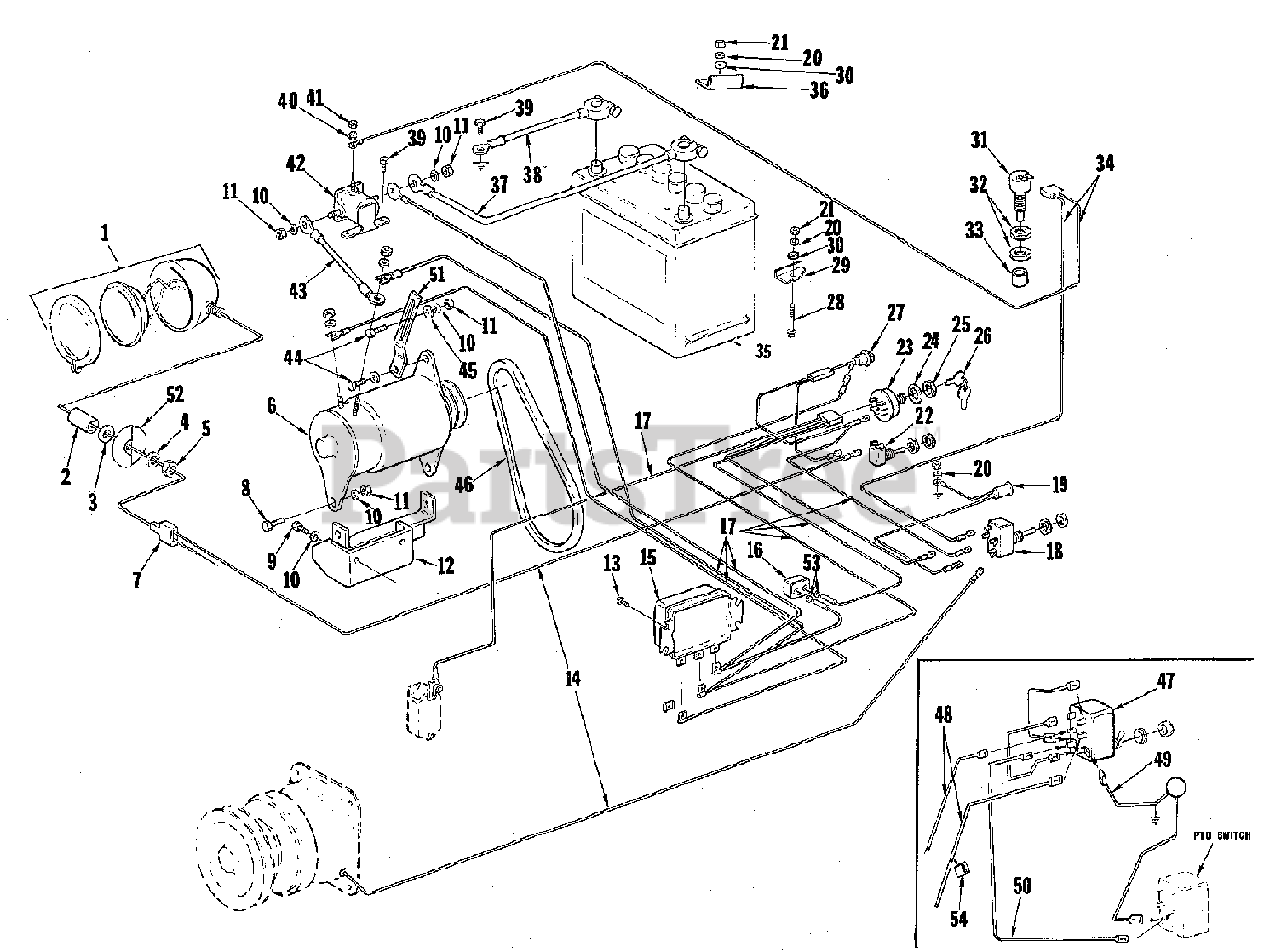

Electrical Group (3858I08) Parts Diagram

  • Title

1

Simplicity LM-01221-75

LAMP ASSEMBLY

$

$

Not available

2

Simplicity LM-16077-73

SPACER, Headlight

$

$

Not available

3

Simplicity LM-09169-60

WASHER, Flat, 17/32

$

$

Not available

4

Simplicity LM-09169-66

WASHER, Lock, 1/2

$

$

Not available

5

Simplicity LM-09169-51

NUT, Hex Fin, 1/2-13

$

$

Not available

6

Simplicity LM-01222-36

MOTOR, Generator

$

$

Not available

7

Simplicity LM-01221-82

CONNECTOR, Insulated

$

$

Not available

8

Simplicity LM-09077-29

SCREW, Hex Head Cap, 5/16-18 x 1-1/4

$

$

Not available

9

Simplicity LM-09173-97

SCREW, Hex Head Cap, 5/16-18 x 3/4

$

$

Not available

10

Simplicity LM-09173-56

WASHER, Lock, Regular, 5/16

$

$

Not available

11

Simplicity LM-09173-72

NUT, Hex Fin, 5/16-18

$

$

Not available

12

Simplicity LM-16063-67

SUPPORT ASSEMBLY, Generator

$

$

Not available

13

Simplicity LM-09274-29

SCREW, Tapping (Taptite) 1/4-20 x 5/8

$

$

Not available

14

Simplicity LM-16067-66

HARNESS ASSEMBLY, Light & PTO

$

$

Not available

15

Simplicity LM-01221-93

REGULATOR, Voltage

$

$

Not available

16

Simplicity LM-01721-63

BREAKER, Circuit

$

$

Not available

17

Simplicity LM-16067-64

HARNESS ASSEMBLY, Wiring

$

$

Not available

18

Simplicity LM-16072-42

SWITCH TOGGLE, PTO

$

$

Not available

19

Simplicity LM-16072-44

LIGHT, Pilot

$

$

Not available

20

Simplicity LM-09169-64

WASHER, Lock, 1/4

$

$

Not available

21

Simplicity LM-09166-22

NUT, Hex, 1/4-20

$

$

Not available

22

Simplicity LM-01221-84

SWITCH, Light Toggle

$

$

Not available

23

Simplicity LM-01222-01

SWITCH, Key

$

$

Not available

24

Simplicity LM-09286-36

WASHER

$

$

Not available

25

Simplicity LM-01222-35

NUT, Hex

$

$

Not available

26

Simplicity LM-16032-49

KEY, Set

$

$

Not available

27

Simplicity LM-01712-95

INDICATOR, Lamp Assembly

$

$

Not available

28

Simplicity LM-09199-29

SCREW, Hex Head Cap, 1/4-20 x 2

$

$

Not available

29

Simplicity LM-16073-43

CLAMP, Battery

$

$

Not available

30

Simplicity LM-09173-77

WASHER, 1/4

$

$

Not available

31

Simplicity LM-01222-33

SWITCH, Safety

$

$

Not available

32

Simplicity LM-01222-34

NUT, Hex Special

$

$

Not available

33

Simplicity LM-16044-40

BOOT, Rubber

$

$

Not available

34

Simplicity LM-16067-65

WIRE ASSEMBLY, Switch

$

$

Not available

35

Simplicity LM-16073-60

BATTERY

$

$

Not available

36

Simplicity LM-16073-42

CLAMP, Battery

$

$

Not available

37

Simplicity LM-16012-43

CABLE, Battery To Solenoid

$

$

Not available

38

Simplicity LM-01718-11

CABLE, Battery to Ground

$

$

Not available

39

Simplicity LM-09250-03

SCREW, Taptite, 1/4-20 x 1/2

$

$

Not available

40

Simplicity LM-09227-11

WASHER, Lock, Extension Tooth #10

$

$

Not available

41

Simplicity LM-09174-15

NUT, Machine Screw Hex, 10-32

$

$

Not available

42

Simplicity LM-01222-16

SOLENOID

$

$

Not available

43

Simplicity LM-16063-18

CABLE, Generator to Solenoid

$

$

Not available

44

Simplicity LM-09213-32

SCREW, Hex Head Cap, 5/16-18 x 3/4

$

$

Not available

45

Simplicity LM-09176-42

WASHER, 5/16

$

$

Not available

46

Simplicity LM-16073-23

BELT, Generator

$

$

Not available

47

Simplicity LM-16072-43

SWITCH, Toggle, Actuator (T-15)

$

$

Not available

48

Simplicity LM-16067-69

HARNESS, Switch to Actuator (T-15)

$

$

Not available

49

Simplicity LM-16073-72

LEAD, Switch to Ground (T-15)

$

$

Not available

50

Simplicity LM-16067-68

LEAD, Switch to PTO Switch (T-15)

$

$

Not available

51

Simplicity LM-01571-02

ARM, Belt Tightener

$

$

Not available

52

Simplicity LM-16079-36

KIT, Headlight Reinforcement

$

$

Not available

53

Simplicity LM-16076-08

WASHER, Insulation

$

$

Not available

54

Simplicity LM-01650-73

CLIP, Speed (T-15)

$

$

Not available
